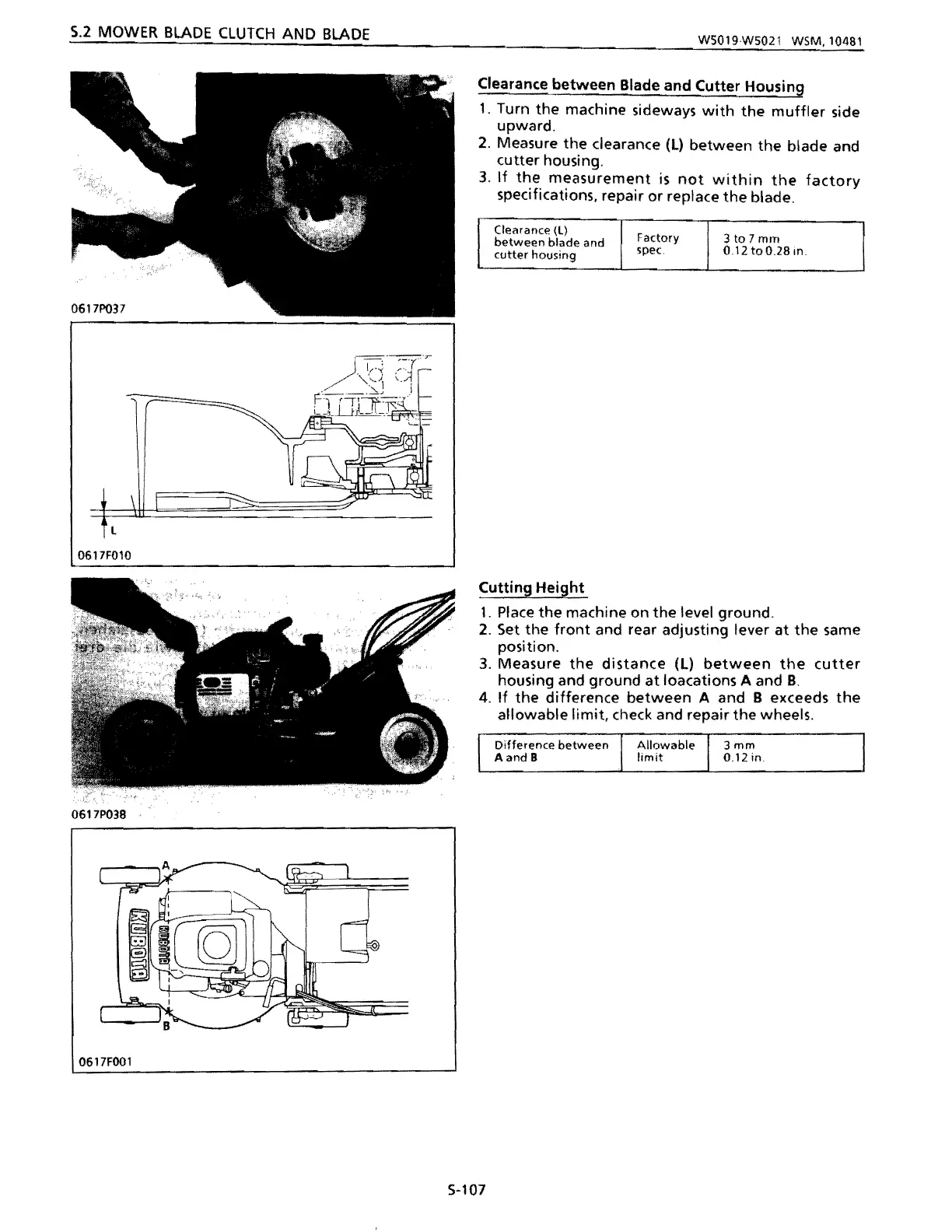

5.2 MOWER BLADE CLUTCH AND BLADE
WS019W5021 WSM,10481
Clearanc.e between Blade and Cutter Housing
1. Turn the machine sideways with the muffler side
upward.
2. Measure the clearance (L) between the blade and
cutter housing.
3. If the measurement is not within the factory
specifications, repair or replace the blade.
Clearance (l)
between blade and
cutter housing
Factory
spec.
3 to 7
mm
0.12 to 0.28 tn.
0617P038
0617F010
Cutting Height
1. Place the machine on the level ground.
2. Set the front and rear adjusting lever at the same
position.
3. Measure the distance (L) between the cutter
housing and ground at loacations A and B.
4. If the difference between A and B exceeds the
allowable limit, check and repair the wheels.
Difference between
Allowable 3mm
AandB limit 0.12 in.
0617FOOl
5-107
