M.2 TRANSMISSION
WS019WS021 WSM,10482

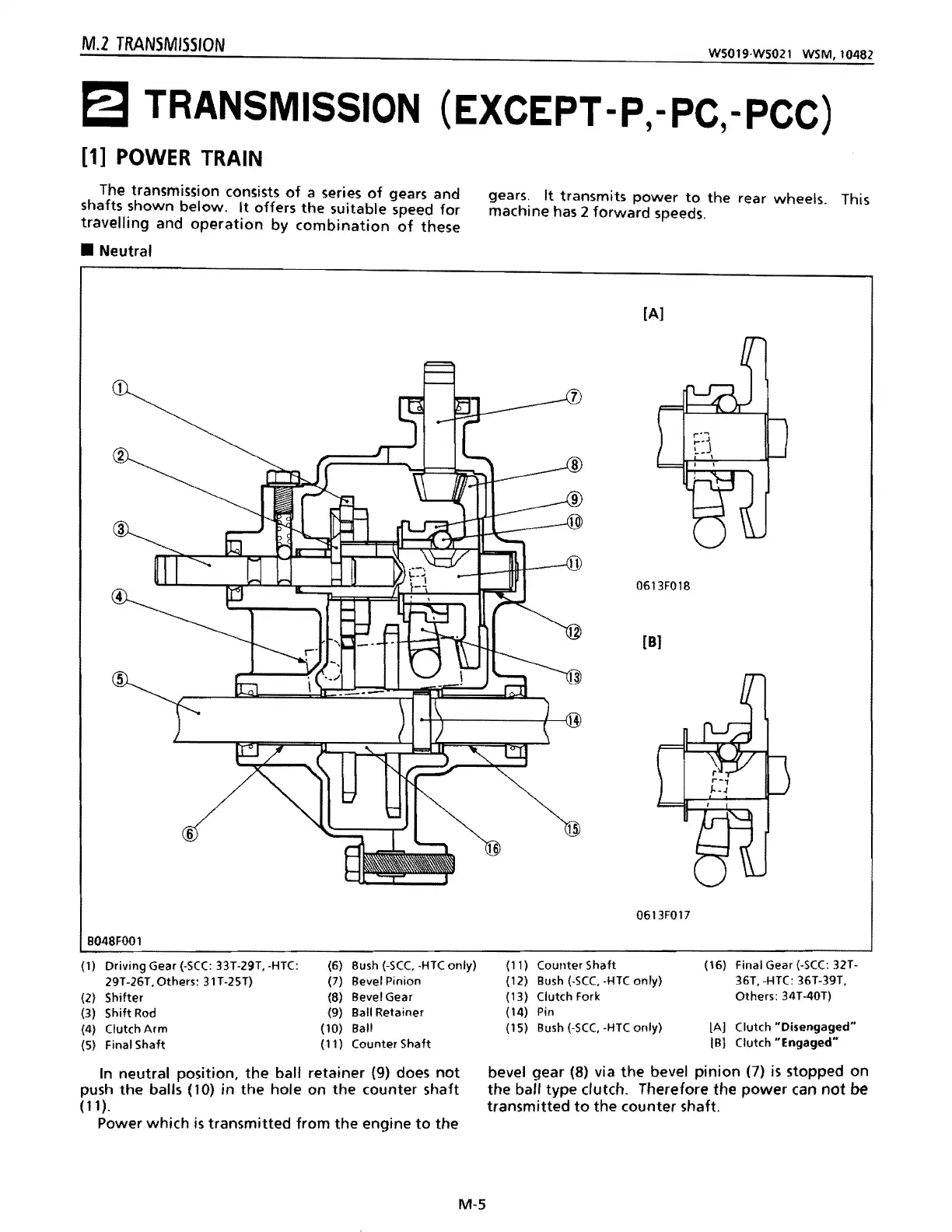

Ea TRANSMISSION (EXCEPT-P,-PC,-PCC)
[1] POWER TRAIN
The transmission consists of a series of gears and
gears.
It transmits power to the rear wheels. This
shafts
~hown below. It offers the suitable speed for
machine has 2
forward speeds.
travelling and operation by combination of these
• Neutral
[A]
B048F001
(1 )
Driving Gear
(-SCC: 33T-29T, -HTC:
(6)
Bush (-SCC, ·HTC only)
29T-26T, Others: 31T-25T)
(7)
Bevel Pinion
(2)
Shifter
(8)
Bevel Gear
(3)
Shift
Rod
(9)
Ball Retainer
(4)
Clutch
Arm
(10) Ball
(5)
Final Shaft
(11 )
Counter Shaft
In neutral position, the ball retainer (9) does not
push the balls (10) in the hole on the counter shaft
(11 ).
Power which is transmitted from the engine to the
M-5
0613F01B
[9]
0613F017
(11)
(12)
(13)
(14)
(15)
Counter Shaft
Bush (·SCC, ·HTC only)
Clutch Fork
Pin
Bush (-SCC. -HTC only)
06}
[AJ
[BJ
Final Gear (-SCC: 32T-
36T,
-HTC: 36T-39T,
Others: 34T-40T)
Clutch
"Disengaged"
Clutch "Engaged"
bevel gear (8) via the bevel pinion (7) is stopped on
the ball type dutch. Therefore the power can not be
transmitted to the counter shaft.
