S.G GENERAL
W5019W5021 WSM,10481
0617F024
0617F025
~
(a)
~
(b)
0617F026

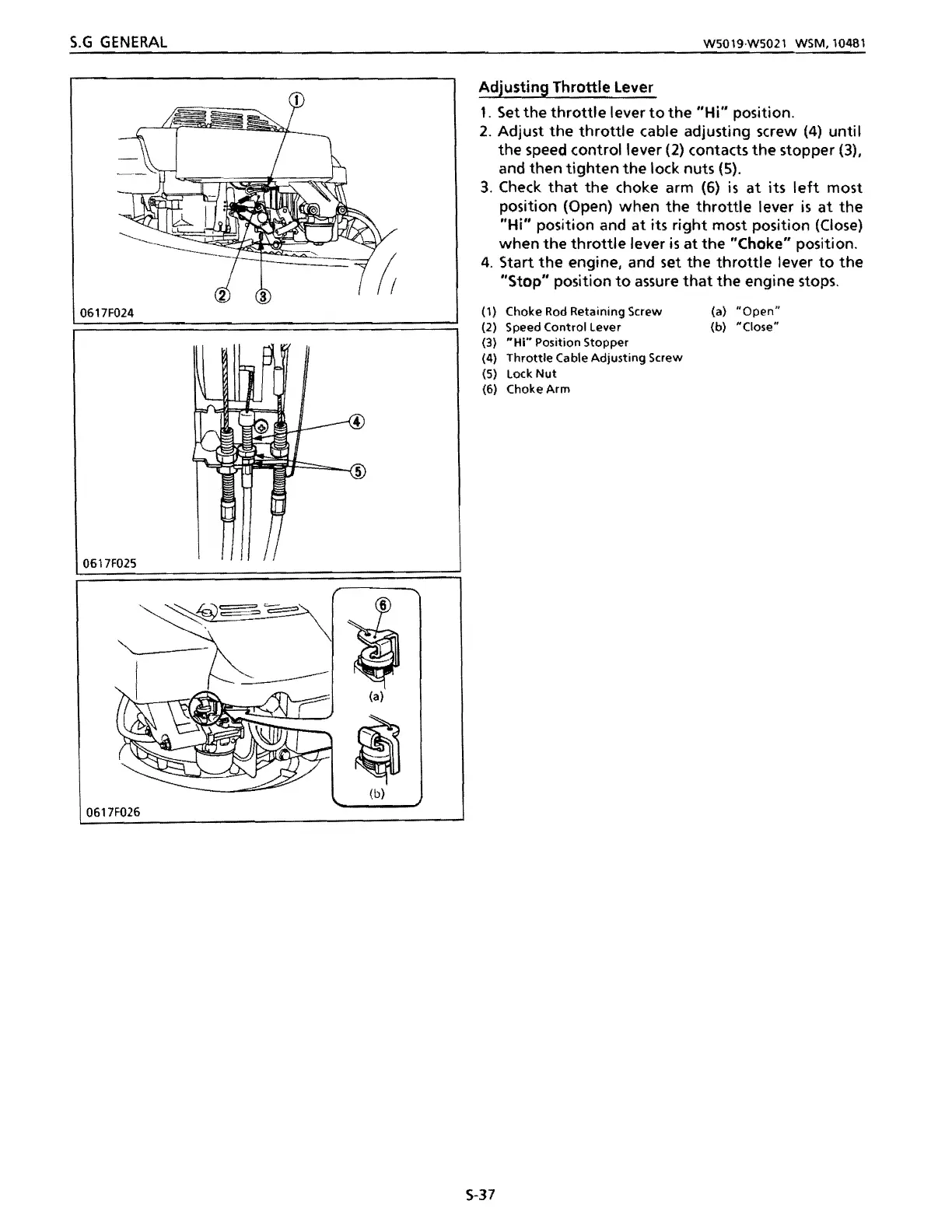

Adjusting Throttle Lever
1. Set the throttle lever to the "Hi" position.
2. Adjust the throttle cable adjusting screw (4) until
the speed control lever (2) contacts the stopper (3),
and then tighten the lock nuts (5).
3. Check that the choke arm (6) is at its left most
position (Open)
when the throttle lever is at the
"Hi" position and at its right most position (Close)
when the throttle lever is at the "Choke" position.
4. Start the engine, and set the throttle lever to the
"Stop" position to assure that the engine stops.
(1) Choke Rod Retaining Screw
(a)
"Open"
(2) Speed Control Lever
(b) "Close"
(3)
.. Hi" Position Stopper
(4)
Throttle Cable Adjusting Screw
(5) Lock
Nut
(6) Choke Arm
5-37
