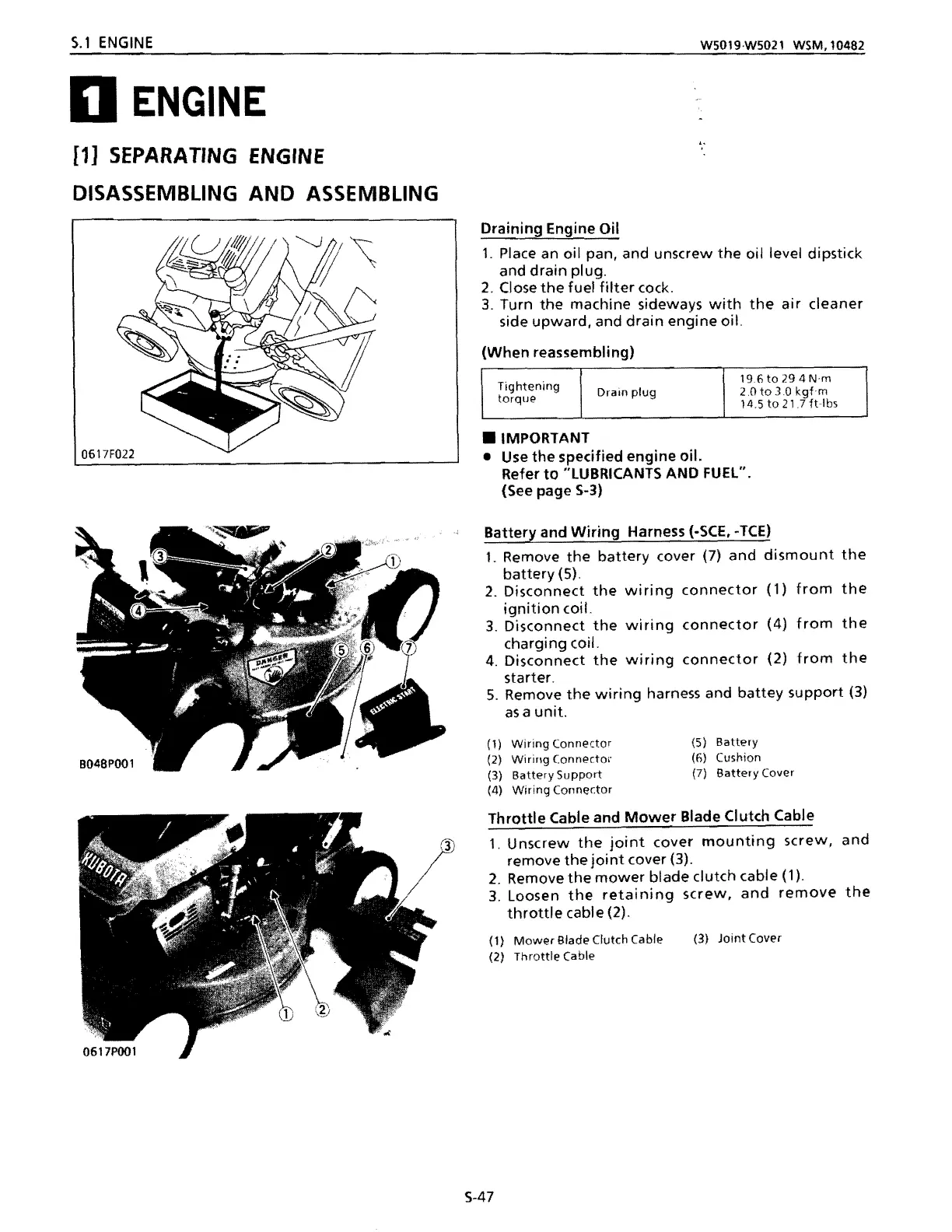

[1] SEPARATING ENGINE
DISASSEMBLING AND ASSEMBLING
Draining Engine oil
1. Place an oil pan, and unscrew the oil level dipstick
and
drain plug.
2. Close the fuel filter cock.
3. Turn the machine sideways with the air cleaner
side upward, and drain engine oil.
(When reassembling)
Tightening
torque
Drain plug
19.6 to 29 4 N·m
2.0
to 3.0 kgf-m
14.5
to 21.7 ft-Ibs
• IMPORTANT
• Use
the specified engine oil.
Refer to "LUBRICANTS AND FUEL".
(See page S-3)
Battery and Wiring Harness (-SCE,· TCE)
1. Remove the battery cover (7) and dismount the
battery (5).
2. Disconnect the wiring connector (1) from the
ignition coil.
3. Disconnect the wiring connector (4) from the
charging coil.
4. Disconnect the wiring connector (2) from the
starter.
5. Remove the wiring harness and battey support (3)
as a unit.
(1) Wiring Connector
(5) Battery
(2) Wiring Connector
(6) Cushion
(3)
Battery Support
(7)
Battery Cover
(4)
Wiring Connector
Throttle Cable and Mower Blade Clutch Cable
1. Unscrew the joint cover mounting screw, and
remove the joint cover (3).
2. Remove the mower blade clutch cable (1).
3. Loosen the retaining screw, and remove the
throttle cable (2).
(1) Mower Blade Clutch Cable
(3)
Joint Cover
(2)
Throttle Cable
5-47
