Starting Switch
1. Disconnect the wiring connector from the starting
switch.
2. Measure the resistance with an ohm-meter across
terminals
at each positions.
3. If the measurement is incorrect, replace the
starting switch.
•
-SCE
Oohm
Infinity
S.l ENGINE
WS019W5021 WSM.l0481

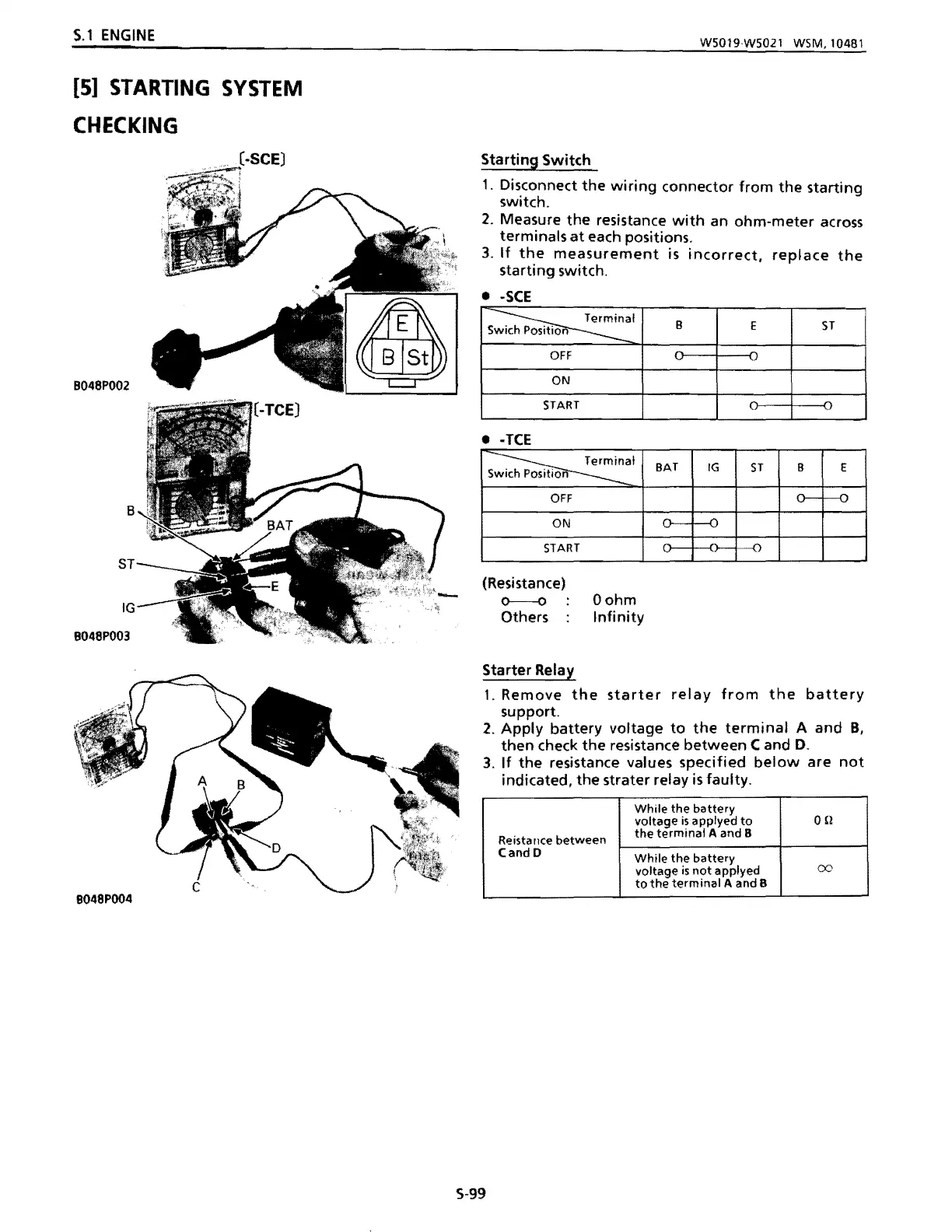

[5] STARTING SYSTEM
CHECKING
B048P002
B048P003
B048POO4
~al
Swich Position
OFF
ON
START
• ·TCE
B
E ST
~
-u
'-'
u
~al
Swich Positio
OFF
ON
START
(Resistance)
0----0
Others
Starter Relay
BAT IG
ST B E
-
-
u -v
~
A
""
1. Remove the starter relay from the battery
support.
2. Apply battery voltage to the terminal A and 8,
then check the resistance between C and D.
3. If the resistance values specified below are not
indicated, the strater relay is faulty.
While the battery
on
voltage is applyed to
Reistance between
the terminal A and B
CandD
While the battery
voltage is not applyed
00
to the terminal A and B
S-99
