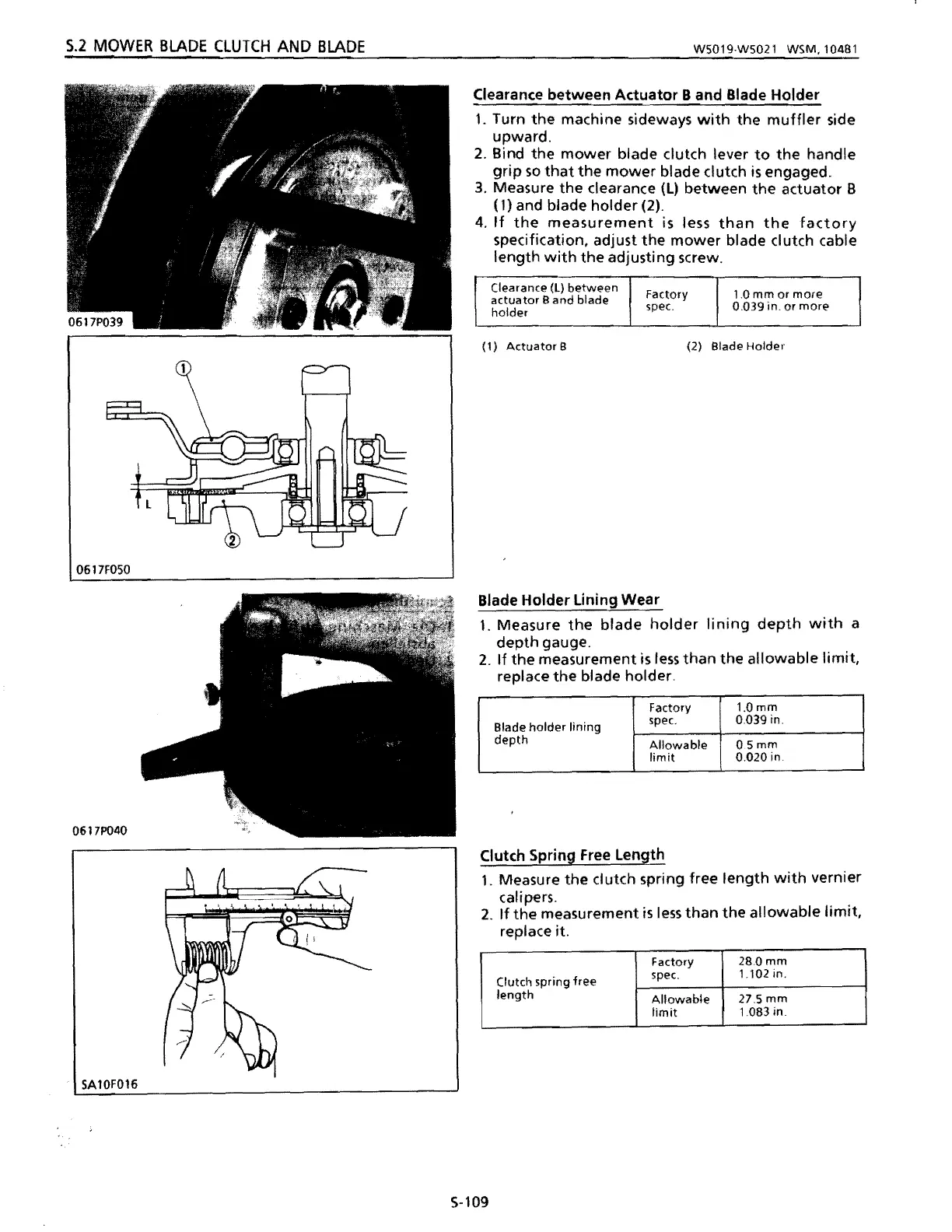

S.2 MOWER BLADE CLUTCH AND BLADE
WS019WS021
WSM.l0481
Clearance between Actuator B and Blade Holder
1. Turn the machine sideways with the muffler side
upward.
2. Bind the mower blade clutch lever to the handle
grip so that the mower blade clutch is engaged.
3. Measure the clearance (L) between the actuator B
(1) and blade
holder (2).
4. If the measurement is less than the factory
specification, adjust the mower blade clutch cable
length with the adjusting screw.
Clearance (L) between
actuator B and blade
holder
Factory
spec.
1.0
mm or more
0.039 in. or more
0617F050
(1)
Actuator B
(2) Blade Holder
Blade Holder Lining Wear
1. Measure the blade holder lining depth with a
depth gauge.
2. If the measurement is less than the allowable limit,
replace the blade holder.
Blade
holder lining
Factory
spec.
1.0 mm
0.039 in.
depth
Allowable
OSmm
limit
0.020 in.
0617P040
Clutch Spring Free Length
1. Measure the clutch spring free length with vernier
calipers. . .
2. If the measurement is less than the allowable limit,
replace it.
Factory
28.0 mm
Clutch spring
free
spec.
1.102 in.
length
Allowable
27.5 mm
limit
1083 in.
SA10F016
5-109
