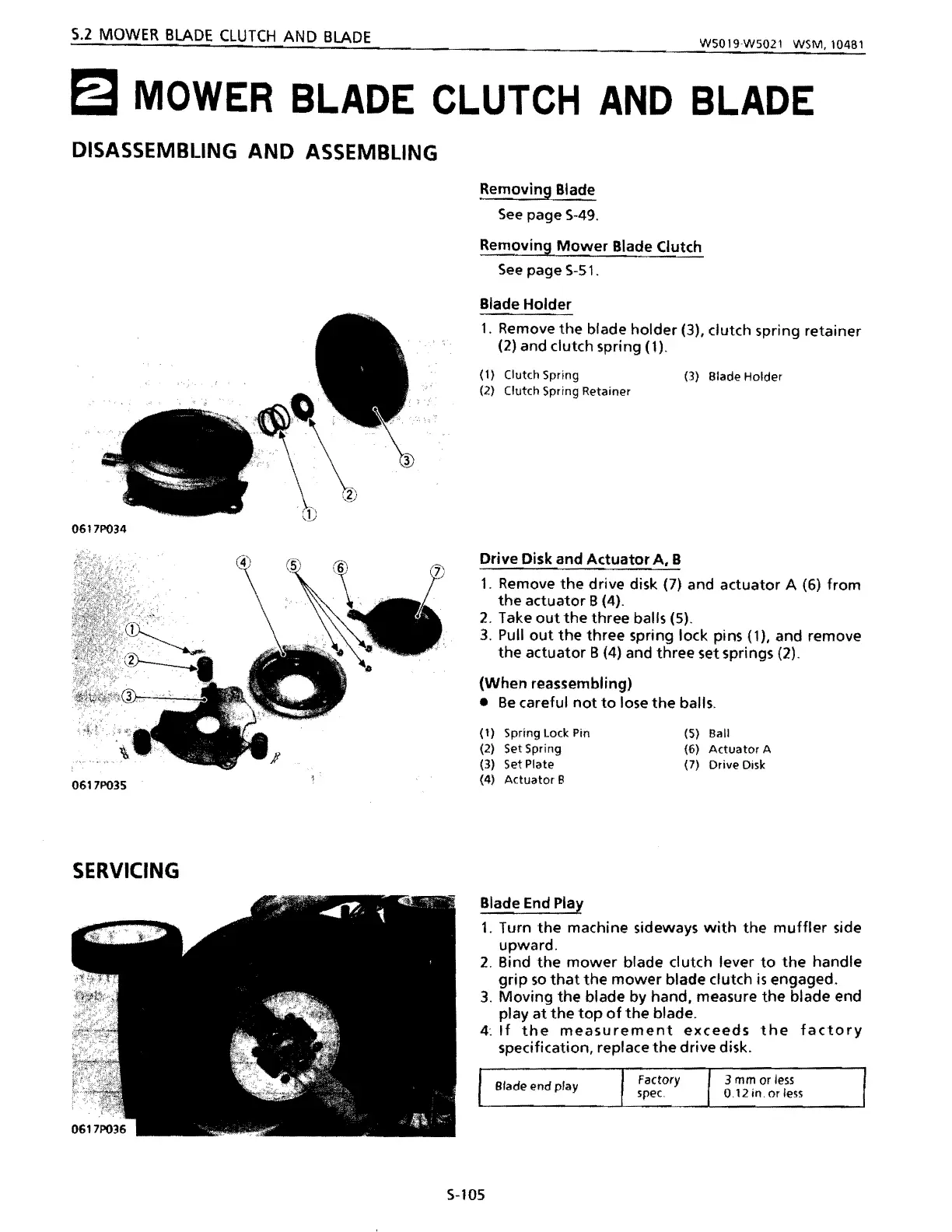

S.2 MOWER BLADE CLUTCH AND BLADE
W5019W5021 WSM,10481
Era MOWER BLADE CLUTCH AND BLADE
DISASSEMBLING AND ASSEMBLING
Removing Blade
See page S-49.
Removing Mower Blade Clutch
See page S-51.
Blade Holder
1. Remove the blade holder (3). clutch spring retainer
(2) and clutch spring (1).
(1) Clutch Spring
(3) Blade Holder
(2) Clutch Spring Retainer
0617P035
SERVICING
0617P034
Drive Disk and Actuator A, B
1. Remove the drive disk (7) and actuator A (6) from
the actuator B (4).
2. Take out the three balls (5).
3. Pull out the three spring lock pins (l), and remove
the actuator B (4) and three set springs (2).
(When reassembling)
•
Be careful not to lose the balls.
(1) Spring Lock Pin
(5) Ball
(2) Set Spring
(6) Actuator A
(3)
Set Plate
(7)
Drive Disk
(4) Actuator B
Blade End Play
1. Turn the machine sideways with the muffler side
upward.
2. Bind the mower blade clutch lever to the handle
grip so that the mower blade clutch is engaged.
3. Moving the blade by hand, measure the blade end
play
at the top of the blade.
4: If the measurement exceeds the factory
specification, replace the drive disk.
Factory 3 mm or less
Blade end pray
spec 0.12 in. or less
S-105
