5.1 ENGINE
WSOl9WS021 WSM.l0481

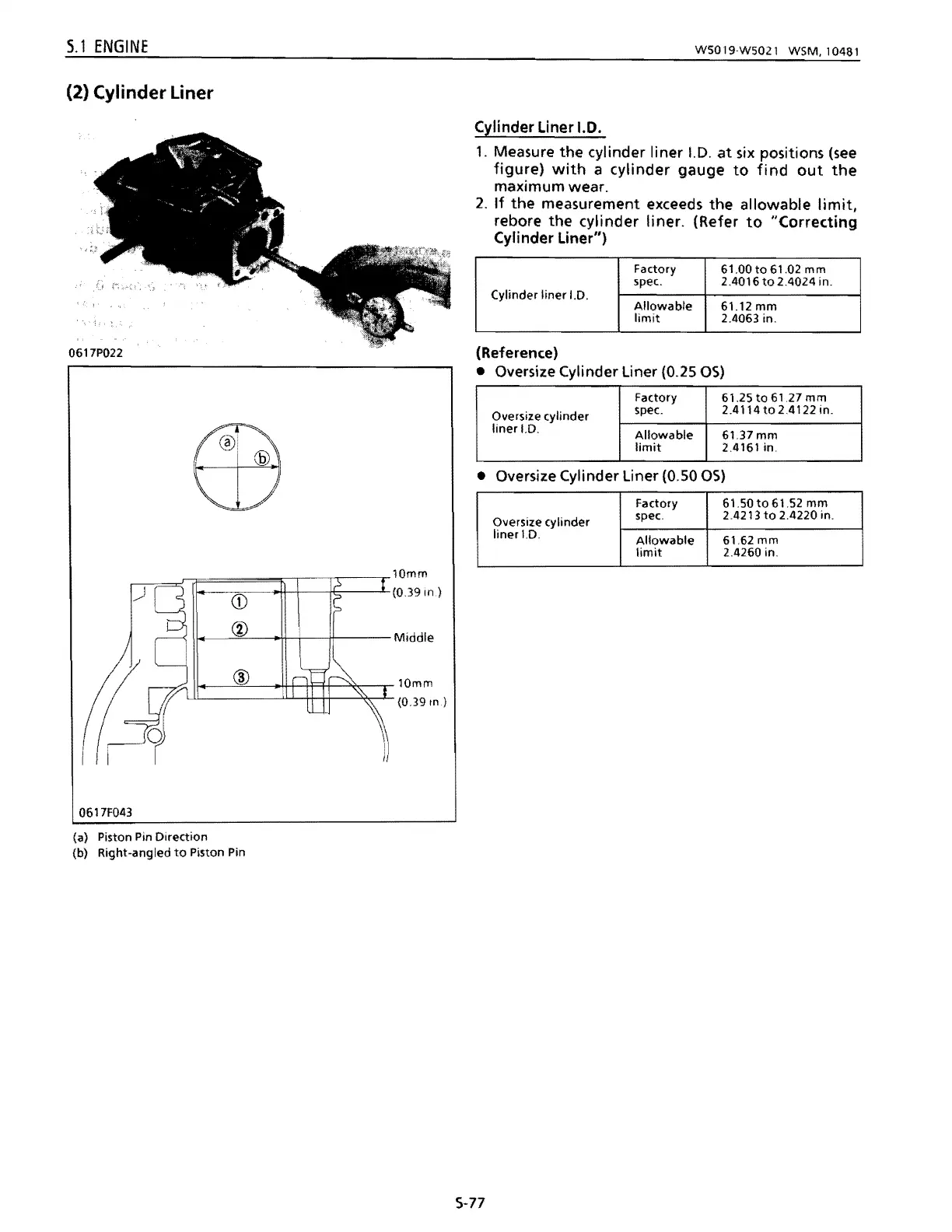

(2) Cylinder liner
Cylinder Liner 1.0.
1. Measure the cylinder liner 1.0. at six positions (see
figure) with a cylinder gauge to find out the
maximum wear.
2. If the measurement exceeds the allowable limit,
rebore the cylinder liner. (Refer to "Correcting
Cylinder liner")
Cylinder liner I.D.
Factory
spec.
61.00to61.02 mm
2.4016to2A024 in.
Allowable
61.12 mm
limit 2.4063 in.
I--=----+l;--i----l+---- Middle
~-~-~H-+FH-~~_.10mm
LlL-----"-'-tt-+r------>;~1- (0.39 tn)
0617P022
(Reference)
• Oversize Cylinder
liner (0.25 OS)
a.
'@
,
• Oversize Cylinder liner (0.50 OS)
Ei'
0617F043
Oversize cylinder
linerl.D.
Factory
spec.
61.25 to 61.27 mm
2.4114to2.4122in.
Allowable
6137mm
limit 2,4161 in.
Oversize cylinder
liner1.D.
Factory
spec.
61.50to61.52 mm
2.4213 to 2.4220 in.
Allowable
limit
61.62 mm
2.4260 in.
(a) Piston
Pin Direction
(b) Right-angled
to Piston Pin
5-77
