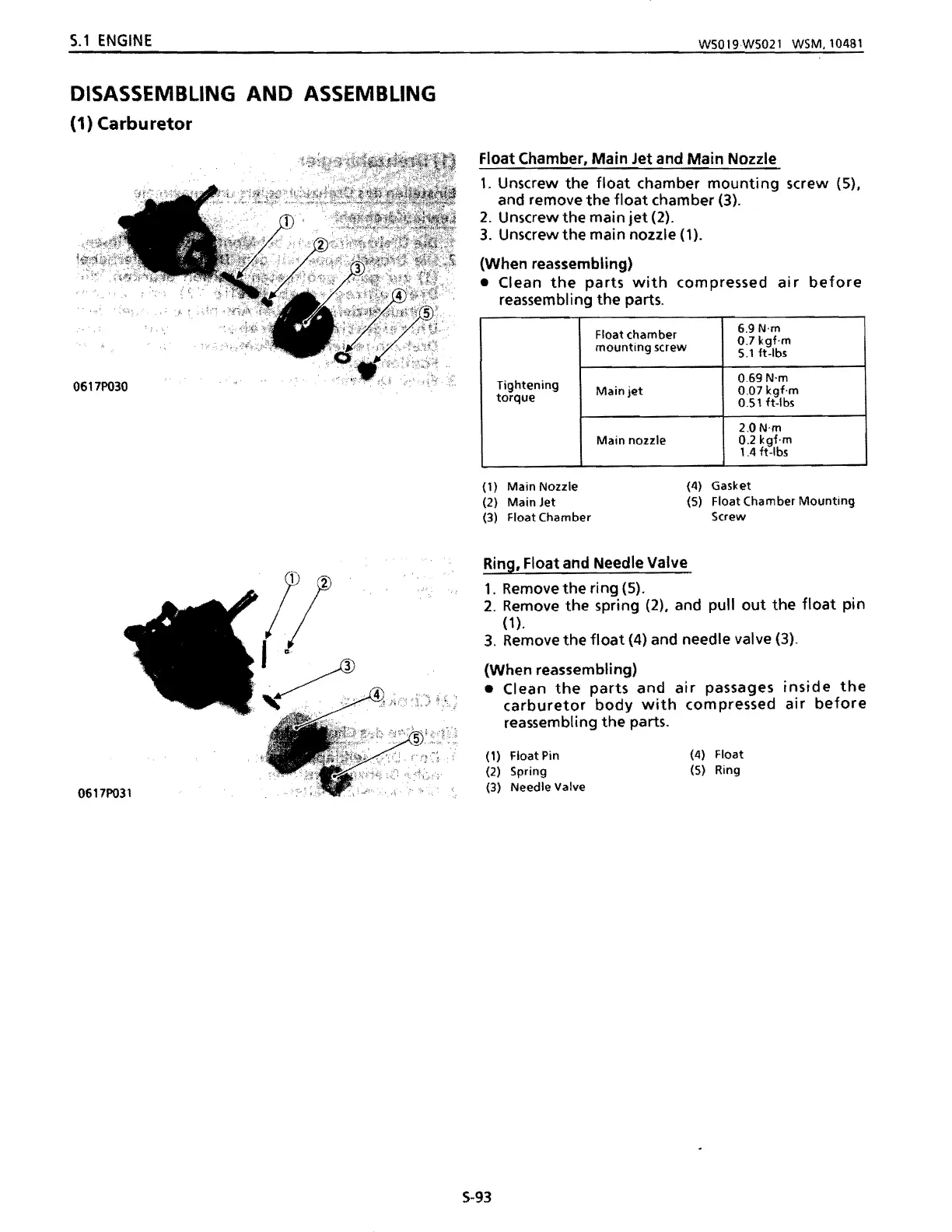

S.1 ENGINE
WS019WS021 WSM.l0481
DISASSEMBLING AND ASSEMBLING
(1) Carburetor
Float Chamber, Main Jet and Main Nozzle
1. Unscrew the float chamber mounting screw (5),
and remove the float chamber (3).
2. Unscrew the main jet (2).
3. Unscrew the main nozzle (1).
(When reassembling)
• Clean the parts with compressed air before
reassembling the parts.
Tightening
torque
Float chamber
mounting screw
6.9N·m
0.7 kgf.m
5.1 ft-Ibs
Main
jet
0.69 N'm
0.07 kgf·m
0.51 ft-Ibs
Main nozzle
2.0N·m
0.2 kgf·m
1.4 ft-Ibs
0617P031
(1) Main Nozzle
(4) Gasket
(2) Main Jet
(5) Float Chamber
Mounting
(3) Float Chamber
Screw
Ring, Float and Needle Valve
1. Remove the ring (5).
2. Remove the spring (2), and pull out the float pin
(1 ).
3. Remove the float (4) and needle valve (3).
(When reassembling)
• Clean
the parts and air passages inside the
carburetor body with compressed air before
reassembling the parts.
(1) Float Pin
(4) Float
(2) Spring
(5) Ring
(3) Needle Valve
$-93
