S.G GENERAL

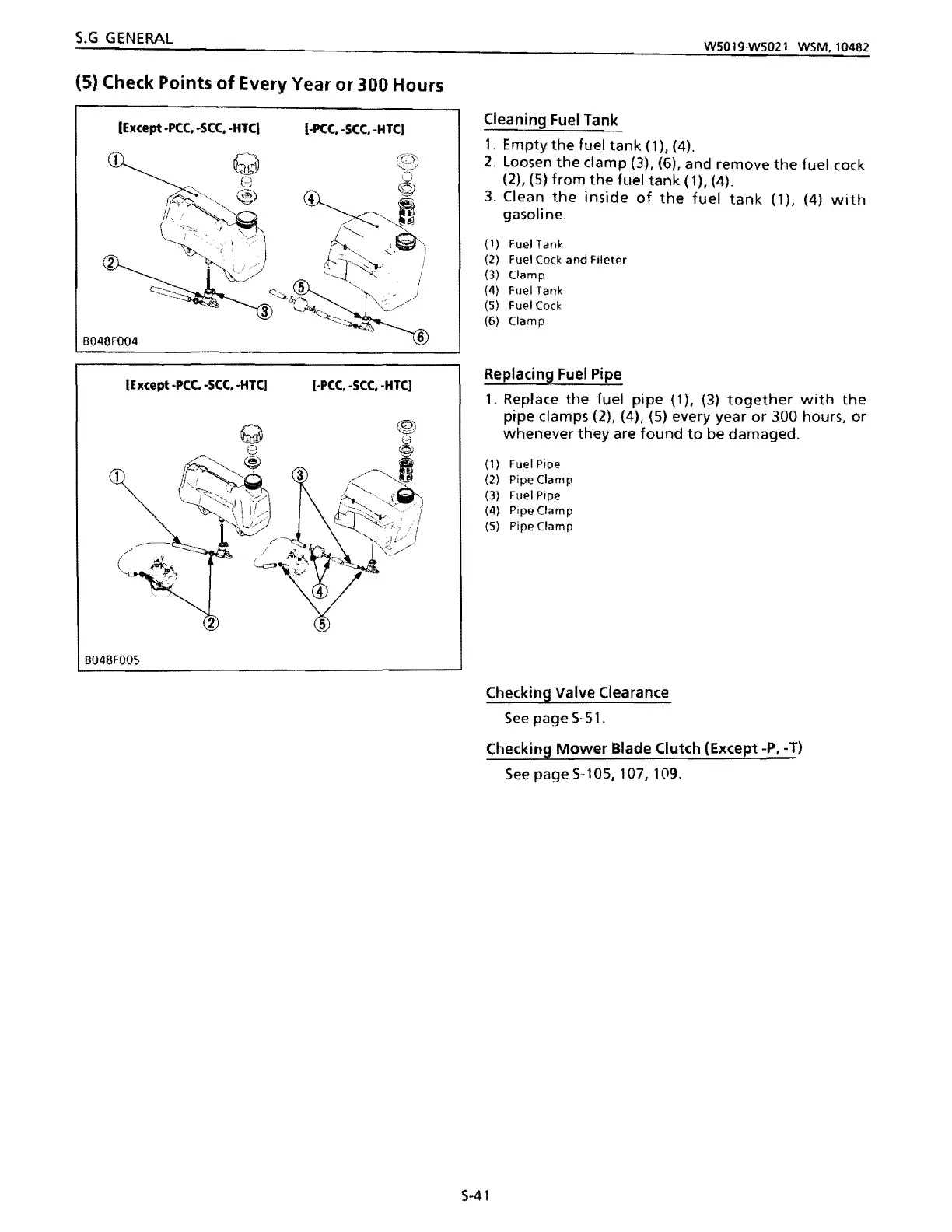

(5) Check Points of Every Year or 300 Hours
(Except -PCC, -SCC, -HTCI
(-PCC, -SCC. -HTC]
B048F004
(Except -PCC, -SCC, -HTC]
(-PCC. -SCC. -HTC]
B04SF005
W5019W5021 WSM.10482
Cleaning Fuel Tank
1. Empty the fuel tank (1), (4).
2. Loosen the clamp (3). (6), and remove the fuel cock
(2), (5) from the fuel tank (1), (4).
3. Clean the inside of the fuel tank (1), (4) with
gasoline.
(1) Fuel Tank
(2) Fuel Cock
and Fileter
(3) Clamp
(4) Fuel Tank
(5) Fuel
CocK
(6) Clamp
Replacing Fuel Pipe
1. Replace the fuel pipe (1), (3) together with the
pipe clamps (2), (4), (5) every year or 300 hours, or
whenever they are found to be damaged.
(1) Fuel Pipe
(2) Pipe Clamp
(3) Fuel Pipe
(/I) Pipe Clamp
(5) Pipe Clam p
Checking Valve Clearance
See page S-51.
Checking Mower Blade Clutch (Except -P, - T)
SeepageS-lOS, 107, 1(19.
S-41
