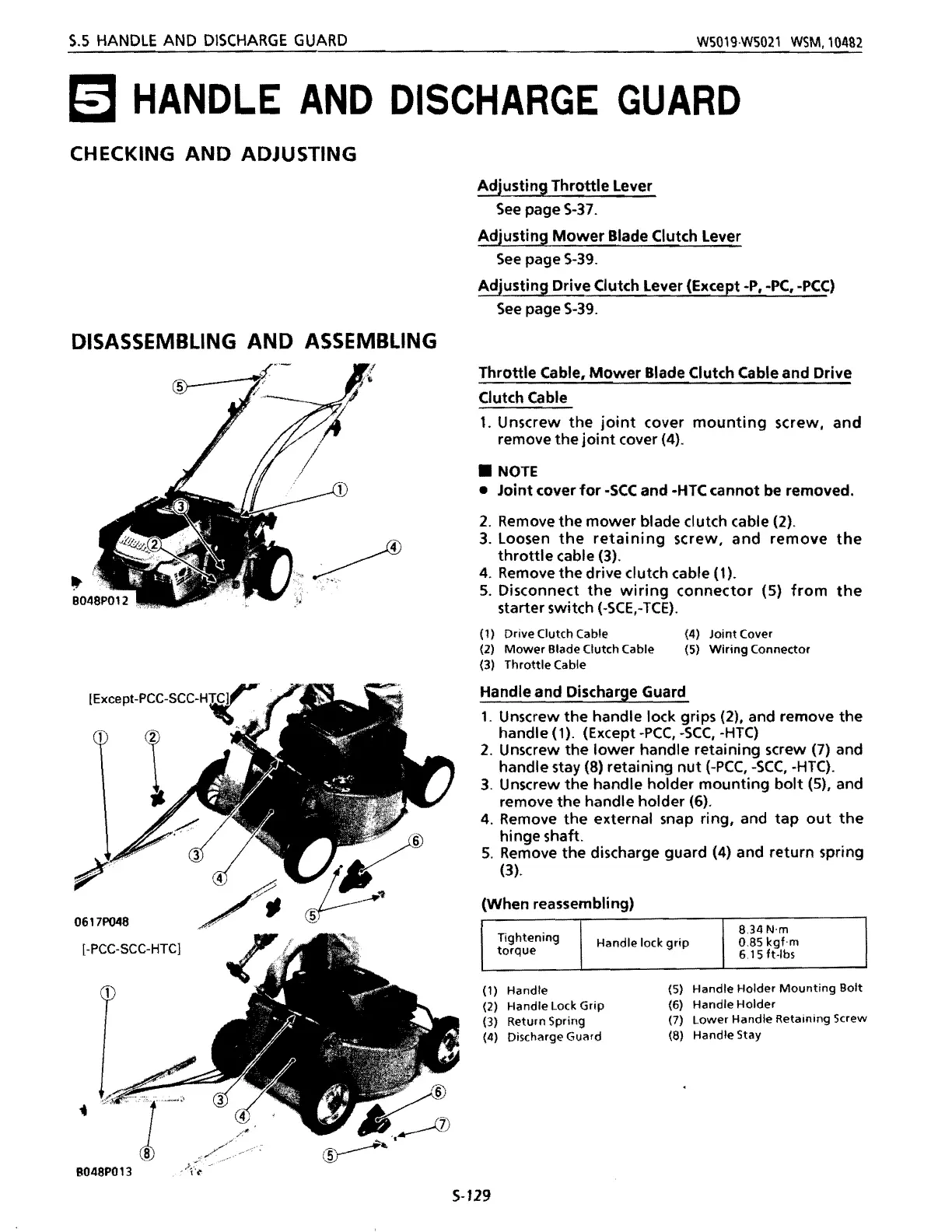

S.5 HANDLE AND DISCHARGE GUARD
W5019W5021 WSM.10482
~ HANDLE AND DISCHARGE GUARD
CHECKING AND ADJUSTING
DISASSEMBLING AND ASSEMBLING
0617P048
[-PCC-SCC-HTCJ
Adjusting Throttle Lever
See page S-37.
Adjusting Mower Blade Clutch Lever
See page S-39.
Adjusting Drive Clutch Lever (Except .p, -PC, ·PCC)
See page S-39.
Throttle Cable, Mower Blade Clutch Cable and Drive
Clutch Cable
1. Unscrew the joint cover mounting screw, and
remove the joint cover (4) .
• NOTE
• Joint cover for -SCC and -HTC cannot be removed.
2. Remove the mower blade clutch cable (2).
3. Loosen the retaining screw, and remove the
throttle cable (3).
4. Remove the drive clutch cable (1).
5. Disconnect the wiring connector (5) from the
starter switch (-SeE,-TeE).
(1)
(2)
(3)
Drive Clutch Cable
Mower Blade Clutch Cable
Throttle Cable
(4)
(5)
Joint Cover
Wiring Connector
Handle and Discharge Guard
1. Unscrew the handle lock grips (2), and remove the
handle (1). (Except -pee, -sec, -HTC)
2. Unscrew the lower handle retaining screw (7) and
handle stay (8) retaining nut (-pec, -sec, -HTC).
3. Unscrew the handle holder mounting bolt (5), and
remove the handle holder (6).
4. Remove the external snap ring, and tap out the
hinge shaft.
5. Remove the discharge guard (4) and return spring
(3).
(When reassembling)
8.34 N'm
Tightening
Handle lock
grip
0.85 kgf.m
torque
615 ft·lbs
(1) Handle
(5) Handle Holder
Mounting Bolt
(2) Handle
lock Grip
(6) Handle
Holder
(3) Return Spring
(7)
lower Handle Retaining Screw
(4) Discharge Guard
(8) Handle Stay
S-129
