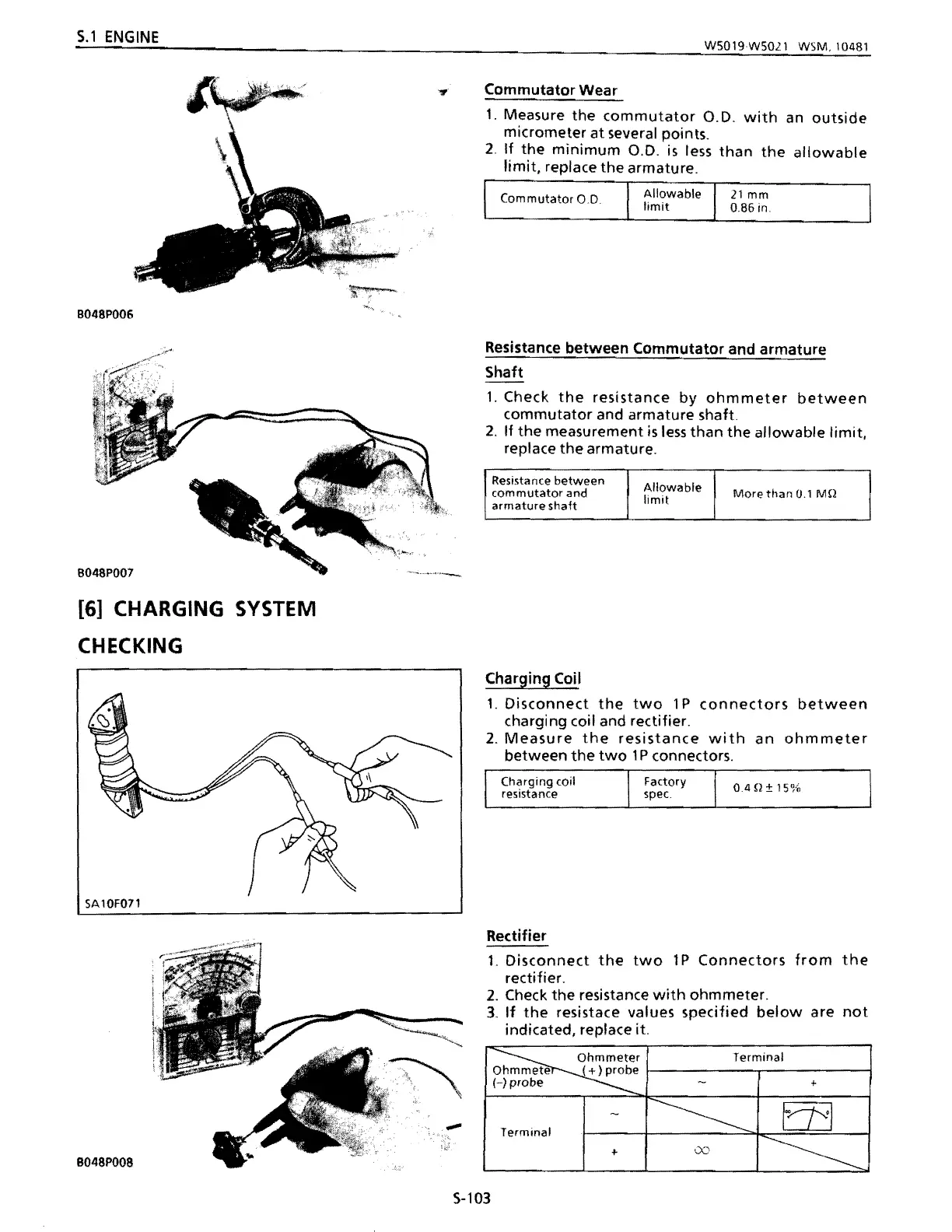

5.1 ENGINE
W5019W5021 W5M,10481
Commutator Wear
1. Measure the commutator D.D. with an outside
micrometer at several points.
2. If the minimum D.D. is less than the allowable
limit, replace the armature.
Allowable
21 mm
Commutator OD.
limit
0.86in.
B048P007
B048P006
Resistance between Commutator and armature
Shaft
1. Check the resistance by ohmmeter between
commutator and armature shaft.
2. If the measurement is less than the allowable limit,
replace the armature.
Resistance between
commutator and
armature shaft
Allowable
limit
More than 0.1 Mrl
[6] CHARGING SYSTEM
CHECKING
Charging Coil
1. Disconnect the two 1 P connectors between
charging coil and rectifier.
2. Measure the resistance with an ohmmeter
between the two 1 P connectors.
Charging coil
Factory
O.4rl±15%
resistance spec.
SA10F071
8048P008
Rectifier
1. Disconnect the two 1 P Connectors from the
rectifier.
2. Check the resistance with ohmmeter.
3. If the resistace values specified below are not
indicated, replace it.
+
+
