S.l ENGINE
WS019W5021 WSM,10481
SA10F019
0.26 rad.
Fi----r- "S°)
0347F032
~
b ®:~::
I ••• "
.: ,0;
®
SA11F014

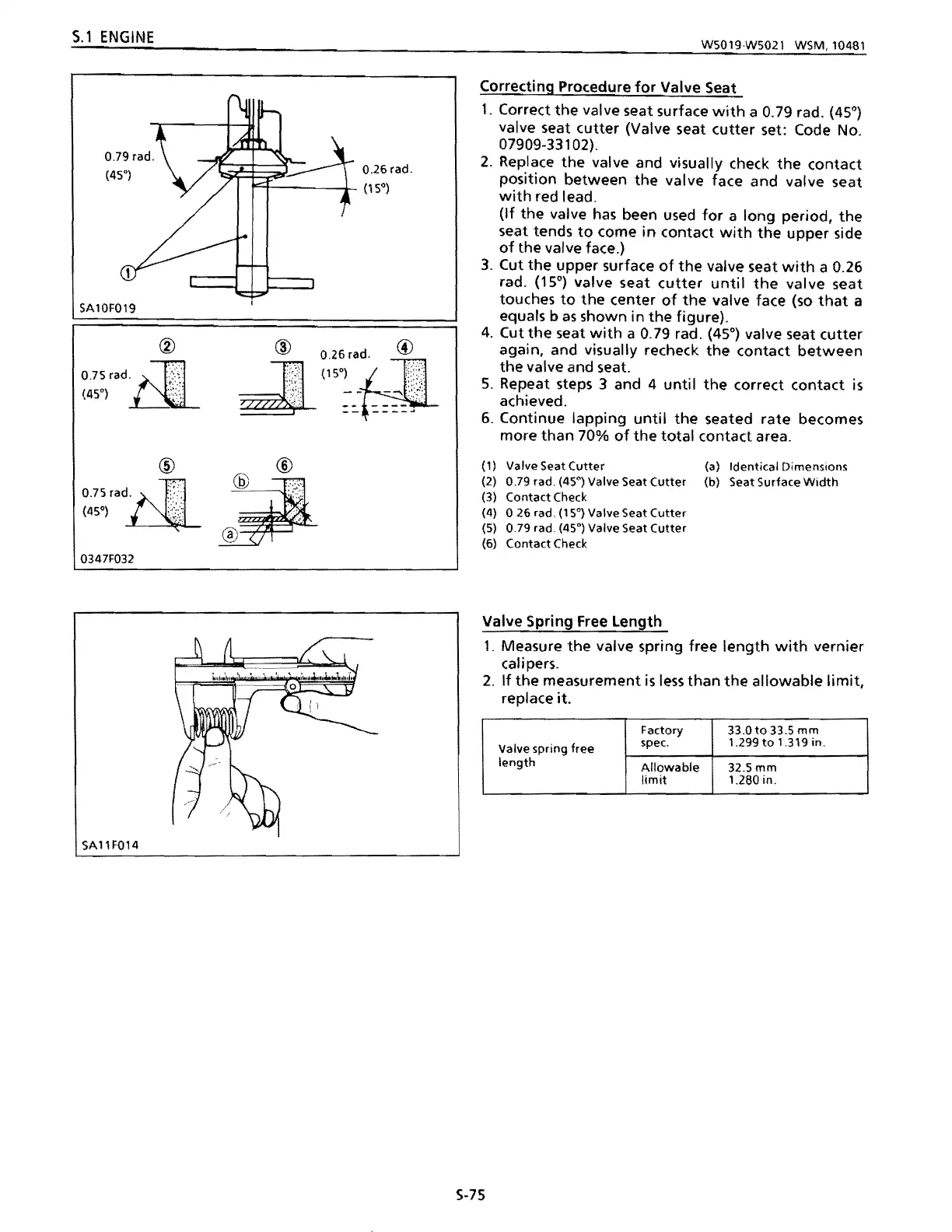

correcting Procedure for Valve Seat
1. Correct the valve seat surface with a 0.79 rad. (45°)
valve seat cutter (Valve seat cutter set: Code No.
07909-33102).
2. Replace the valve and visually check the contact
position between
the valve face and valve seat
with red lead.
(If the valve has been used for a long period, the
seat tends to come in contact with the upper side
of the valve face.)
3. Cut the upper surface of the valve seat with a 0.26
rad. (15°) valve seat
cutter until the valve seat
touches
to the center of the valve face (so that a
equals b
as shown in the figure).
4. Cut the seat with a 0.79 rad. (45°) valve seat cutter
again, and visually recheck the contact between
the valve and seat.
5. Repeat steps 3 and 4 until the correct contact is
achieved.
6. Continue lapping until the seated rate becomes
more
than 70% of the total contact area.
(1) Valve Seat Cutter
(a) Identical Dimensions
(2) 0.79 rad. (45°) Valve Seat
Cutter
(b) Seat Surface Width
(3) Contact Check
(4)
026 rad. (15°) Valve Seat Cutter
(5) 0.79 rad. (4S0) Valve Seat Cutter
(6) Contact Check
Valve Spring Free Length
1. Measure the valve spring free length with vernier
calipers.
2. If the measurement is less than the allowable limit,
replace it.
Valve spring free
Factory
spec.
33.0to 33.5 mm
1.299
to 1.319 in.
length
Allowable
32.Smm
limit
1.260 in.
5-75
