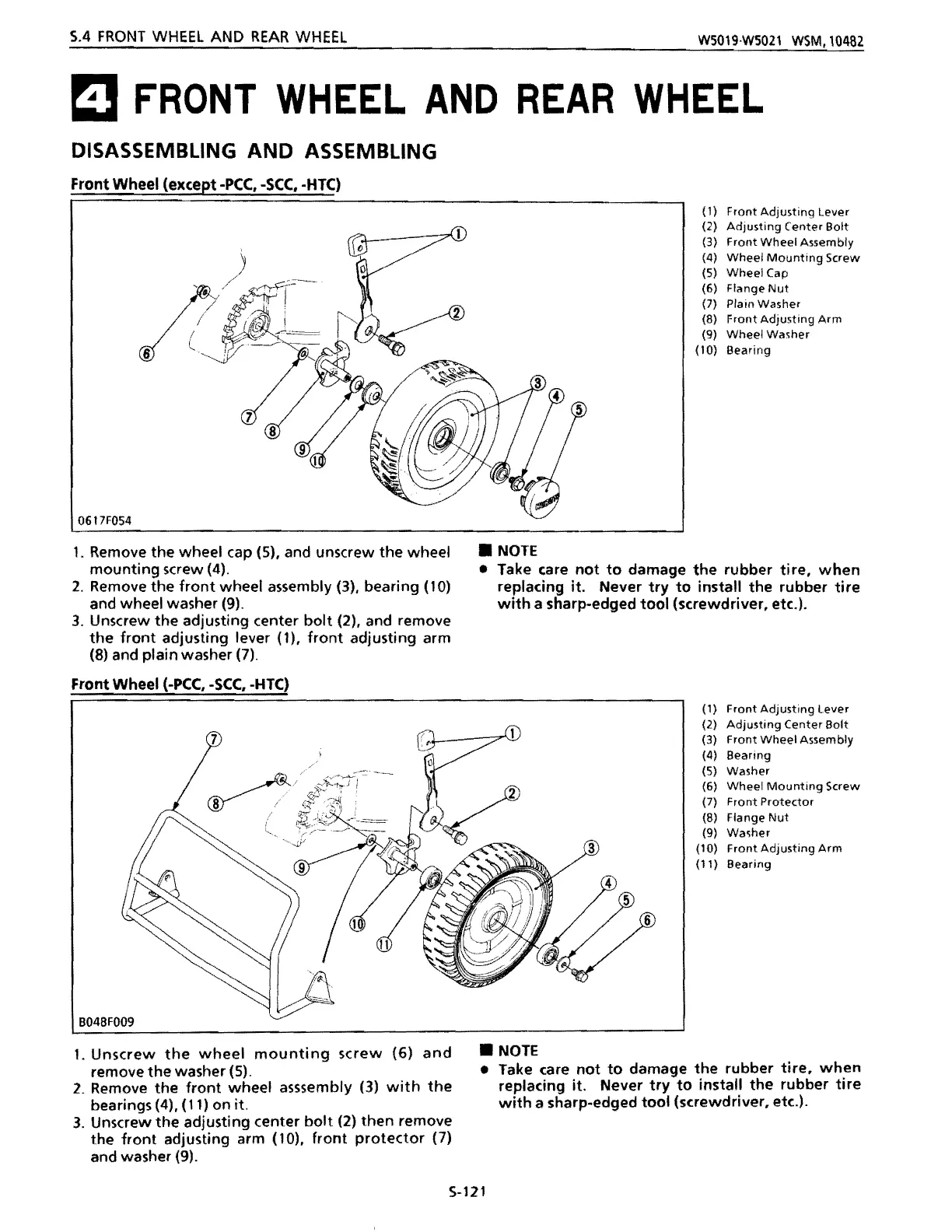

SA FRONT WHEEL AND REAR WHEEL
WS019WS021 WSM,10482
~ FRONT WHEEL AND REAR WHEEL
DISASSEMBLING AND ASSEMBLING
Front Wheel (except -pee, -sec, -HTe)
(1) Front Adjusting Lel/er
(2) Adjusting Center Bolt
(3) Front Wheel Assembly
(4)
Wheel Mounting Screw
(5)
Wheel Cap
(6) Flange
Nut
(7) Plain Washer
(8)
Front Adjusting Arm
(9) Wheel Washer
(10) Bearing
0617F054
1. Remove the wheel cap (5), and unscrew the wheel
mounting screw (4).
2. Remove the front wheel assembly (3), bearing (10)
and wheel washer (9).
3. Unscrew the adjusting center bolt (2), and remove
the front adjusting lever (1), front adjusting arm
(8) and plain washer
(7).
Front Wheel (-pee, -sec, -HTe)
B048F009
• NOTE
• Take care not to damage the rubber tire. when
replacing it. Never try to install the rubber tire
with a sharp-edged tool (screwdriver, etc.).
(1) Front Adjusting Lel/er
(2)
Adjusting Center Bolt
(3) Front Wheel Assembly
(4) Bearing
(5) Washer
(6)
Wheel Mounting Screw
(7)
Front Protector
(8) Flange Nut
(9) Wa~her
(10) Front Adjusting Arm
(11) Bearing
1. Unscrew the wheel mounting screw (6) and
• NOTE
remove the washer (5).
2. Remove the front wheel asssembly (3) with the
• Take care not to damage the rubber tire. when
replacing it. Never try to install the rubber tire
bearings (4), (11) on it.
with a sharp-edged tool (screwdriver. etc.).
3. Unscrew the adjusting center bolt (2) then remove
the
front adjusting arm (10), front protector (7)
and washer (9).
5-121
