4: Configuration Using the Web Manager
EDS4100 4 Port Device Server User Guide 102
Protocol Stack Page
Clicking the Protocol Stack link in the menu bar displays the Protocol Stack page. This
page lets you configure lower level network stack-specific configuration settings.
Under Current State, there is a Clear link to remove all addresses and a Remove link to
remove the individual address shown. If you click Clear or Remove, a message asks
whether you are sure you want to perform the operation. Click OK to proceed or Cancel
to cancel the operation.

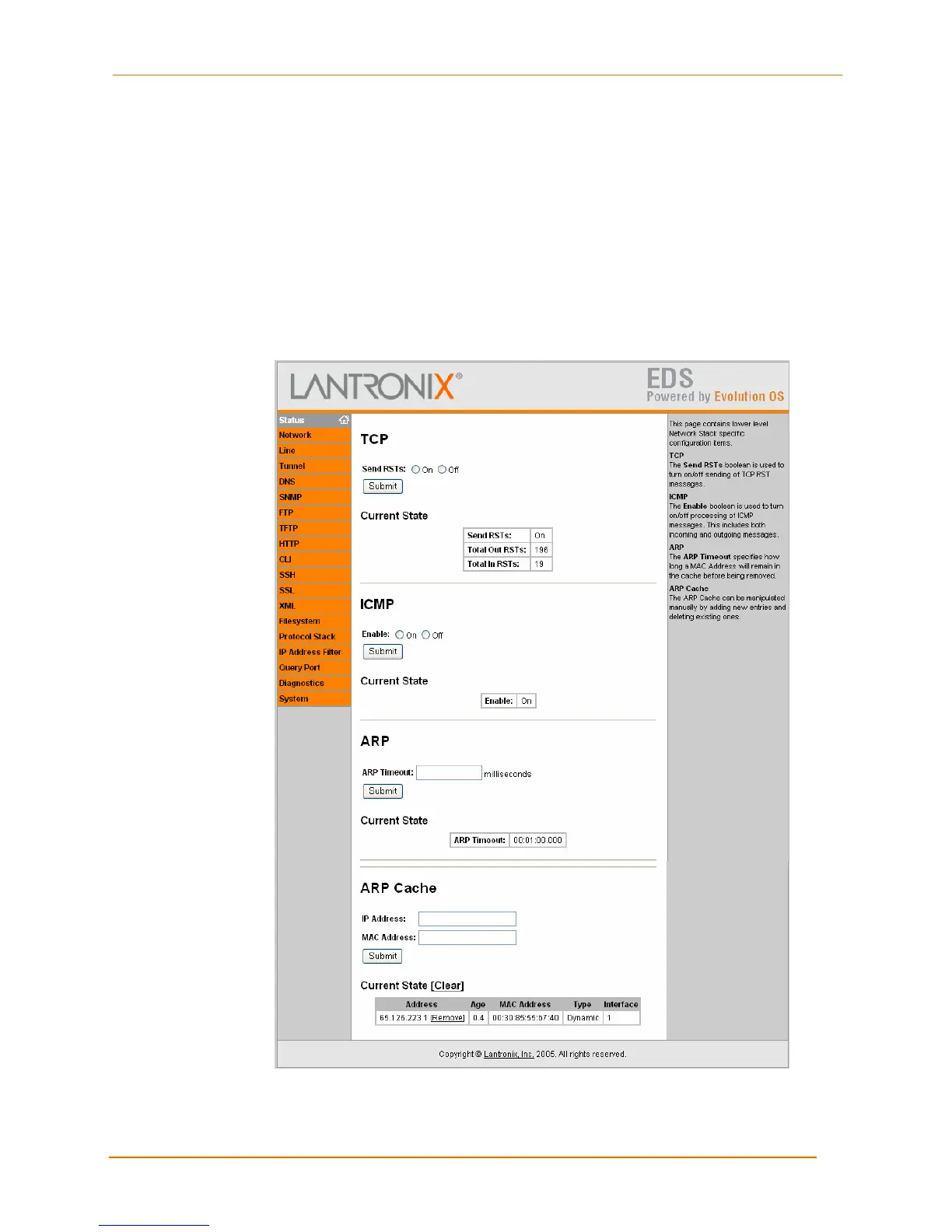

Figure 4-41. Protocol Stack Page
