4: Configuration Using the Web Manager
EDS4100 4 Port Device Server User Guide 108
MIB-II Network Statistics Page
Clicking MIB-II Stats from one of the Diagnostics pages displays the MIB-II Network
Statistics page. This page displays the various SNMP-served Management Information
Bases (MIBs) available on the EDS4100. Information about these MIBs can be found in
the following Request for Comments (RFCs):
îš‹ RFC 1213, Original MIB-II definitions
îš‹ RFC 2011, Updated definitions for IP and ICMP
îš‹ RFC 2012, Updated definitions for TCP
îš‹ RFC 2013, Updated definitions for UDP
îš‹ RFC 2096, Definitions for IP Forwarding

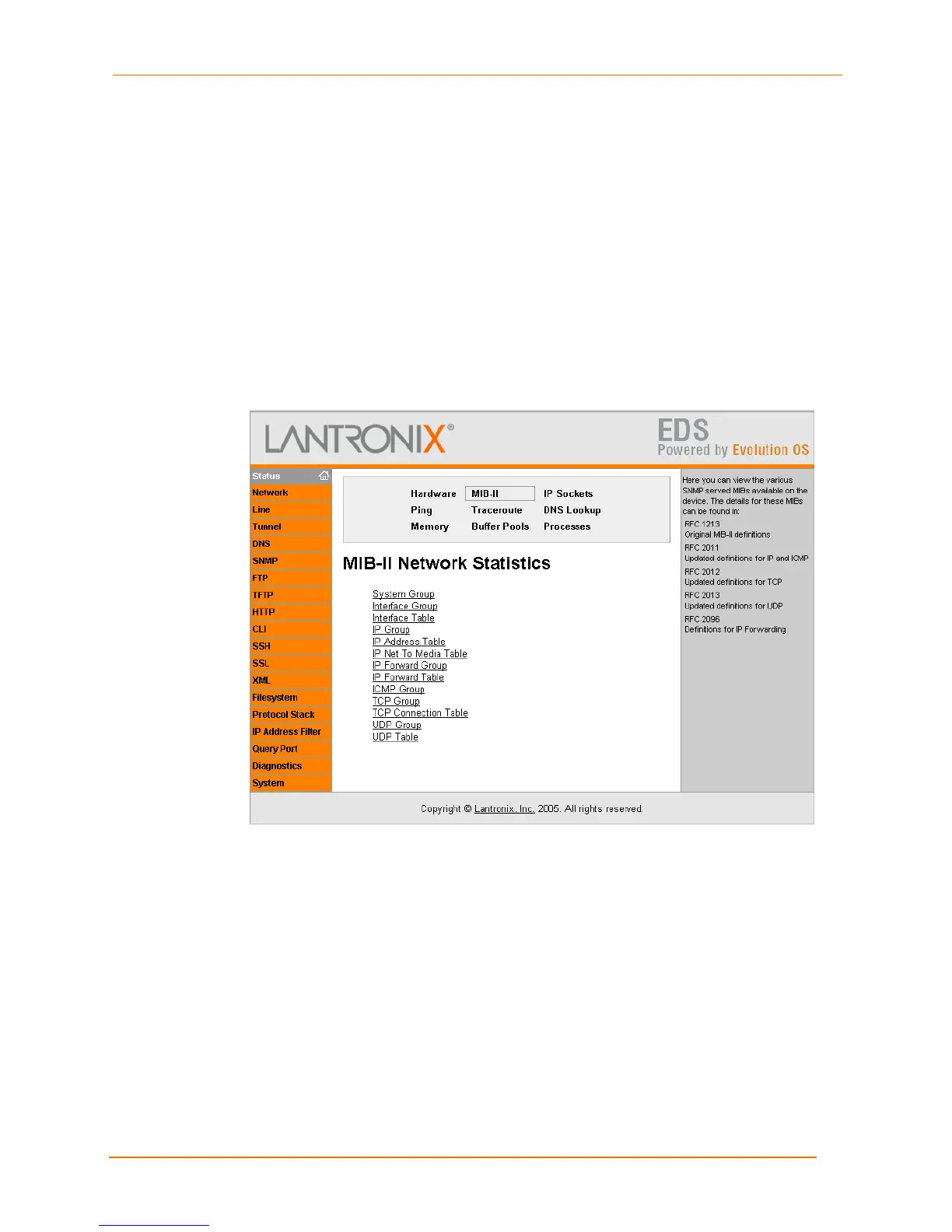

Figure 4-44. MIB-II Network Statistics Page
