4: Configuration Using the Web Manager
EDS4100 4 Port Device Server User Guide 104
IP Address Filter Page
Clicking the IP Address Filter link in the menu bar displays the IP Address Filter page.
This page lets you specify the IP addresses and subnets allowed to send data to the
EDS4100. All packets sent from IP addresses not on this list are ignored and discarded.
By default, the IP address list is empty, so all addresses are allowed.
The network mask and IP address settings you specify on this page determine the range
of IP addresses that can access the EDS4100. For example:
îš‹ An IP address of 10.0.0.0 and a network mask of 255.0.0.0 allow any device with an
IP address in the 10.x.x.x range to access the EDS.
îš‹ An IP address of 192.168.1.1 with a network mask of 255.0.0.0 causes the EDS4100
to allow all IP addresses in the range of 192.x.x.x.
îš‹ An IP address of 192.168.1.1 with a network mask of 255.255.255.0 only allows IP
addresses in the range of 192.168.1.x to access the EDS4100.

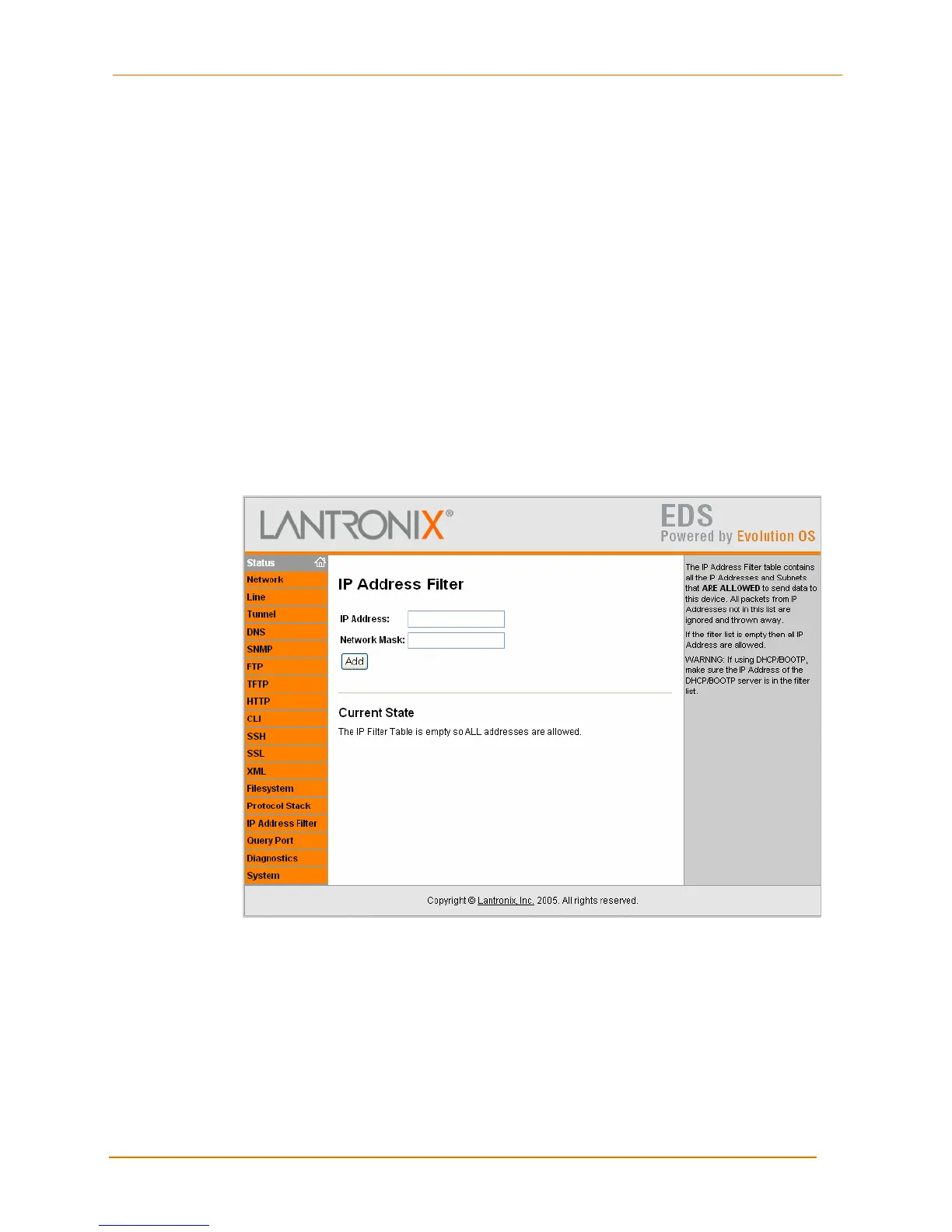

Figure 4-42. IP Address Filter Page
