Lenze 9300 Series Mounting Instructions


111
EDKVS9332X DE/EN/FR 8.0
EVS9321 ... EVS9326
9300std078

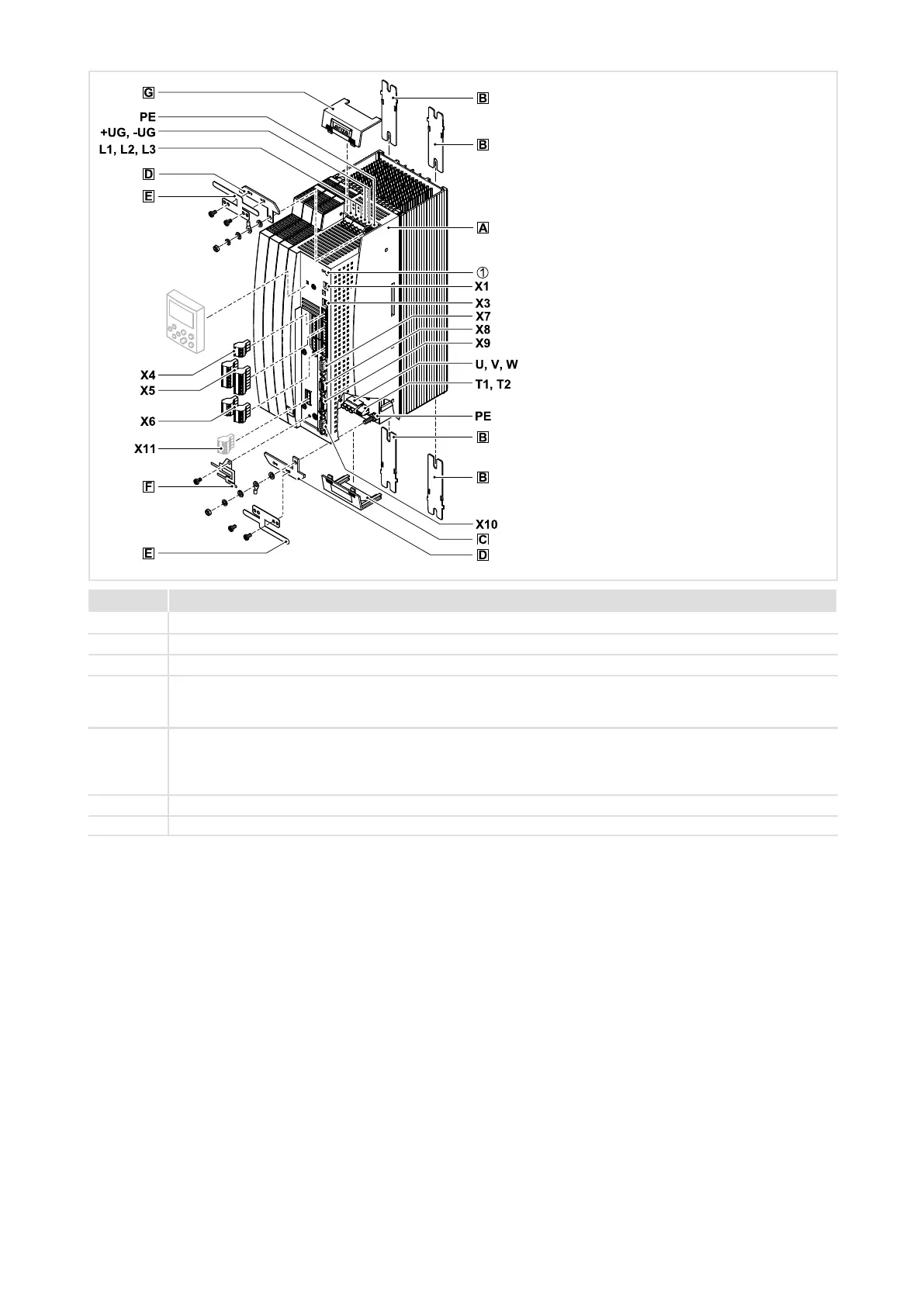

Position Description
 Controller
 Fixing rails for standard mounting
 Cover for the motor connection
 Shield connection support with fixing screws (2 items)
1 support for the shield sheet for the supply connections
1 support for the shield sheet for the motor cable
 EMC shield sheet with fixing screws (2 items)
1 shield sheet for the supply connections
1 shield sheet for the motor cable and the feed cable for the motor temperature monitoring with PTC thermistor
or thermal contact (NC contact)
 EMC shield sheet with fixing screws for shielded control cables
 Cover for the supply connections

Lenze 9300 Series Specifications

General

Series	9300
Category	Controller
Manufacturer	Lenze
Protection Class	IP20
Communication	Ethernet, PROFIBUS
Communication Interfaces	Ethernet, PROFIBUS
Ambient Temperature	0°C to +45°C
Storage Temperature	-25°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	380-480V AC
Altitude	0 ... 2000 m above sea level, derating > 2000 m
