Mechanical installation
Standard devices in the power range 55 ... 75 kW
Thermally separated mounting (push−through technique)
4
158
EDKVS9332X DE/EN/FR 8.0
4.4.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type EVS93xx−Exx must
be used. In addition, the mounting set EJ0009 for the push−through technique is required.
Dimensions
h
c1
c2
c3
c4
g
a1
a
d1
h
d2
d2
d2
d
b
b1
e1
e
L
9300std071

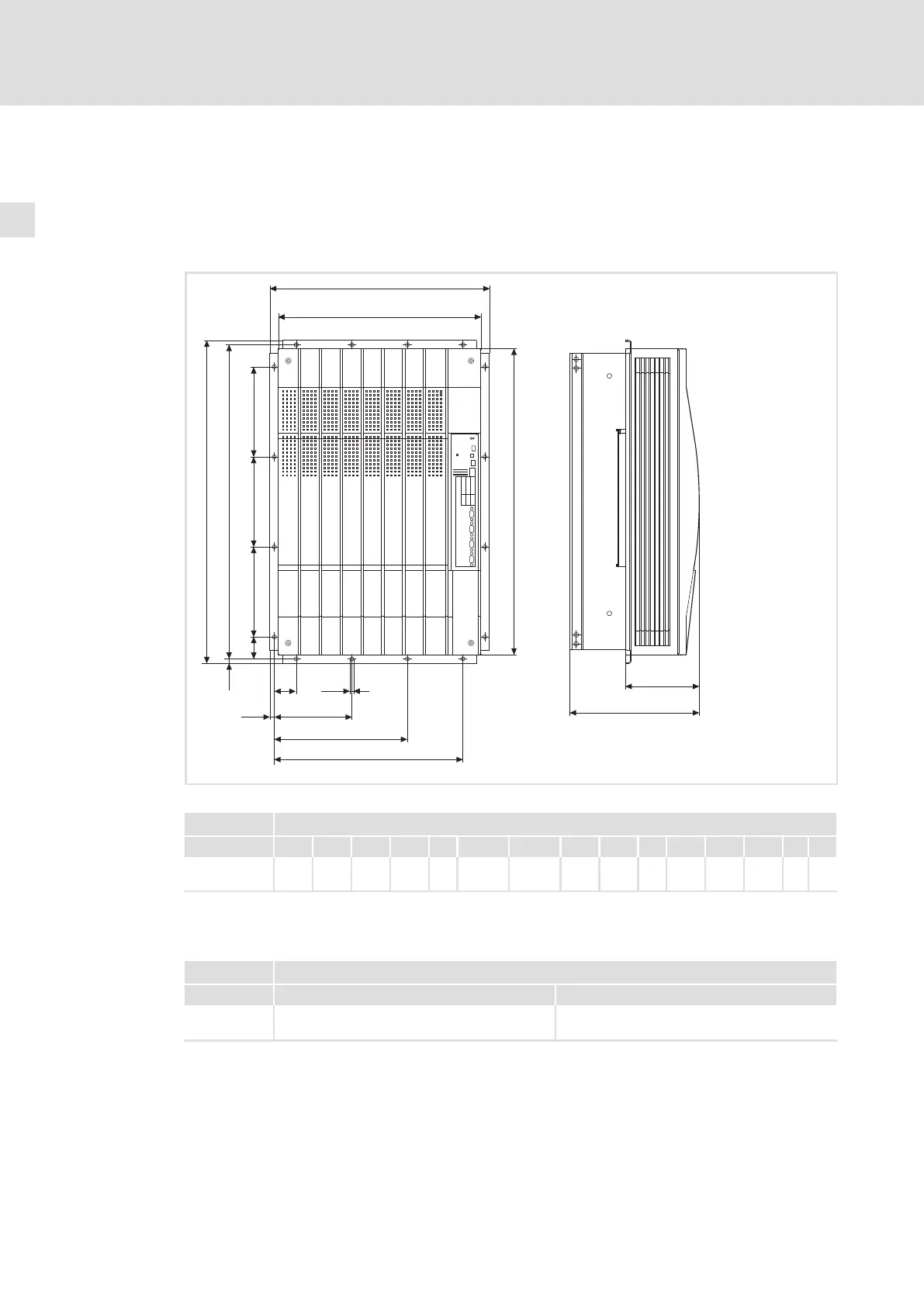

Fig. 4−14 Dimensions for thermally separated mounting 55 ... 75 kW
9300 Dimensions [mm]
Typ a a1 b b1 c1 c2 c3 c4 d d1 d2 e
1)
e1 g h
EVS9331−Ex
EVS9332−Ex
488 450 718 680 49 172.5 295.5 419 698 49 200 285 164 9 10
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting cutout in control cabinet
9300 Dimensions [mm]
Type a1 b1
EVS9331−Ex
EVS9332−Ex
428.5 660
