Lenze 9300 Series Mounting Instructions

Mechanical installation
Standard devices in the power range 15 ... 30 kW
Important notes
4

146
EDKVS9332X DE/EN/FR 8.0
4.2 Standard devices in the power range 15 ... 30 kW
4.2.1 Important notes

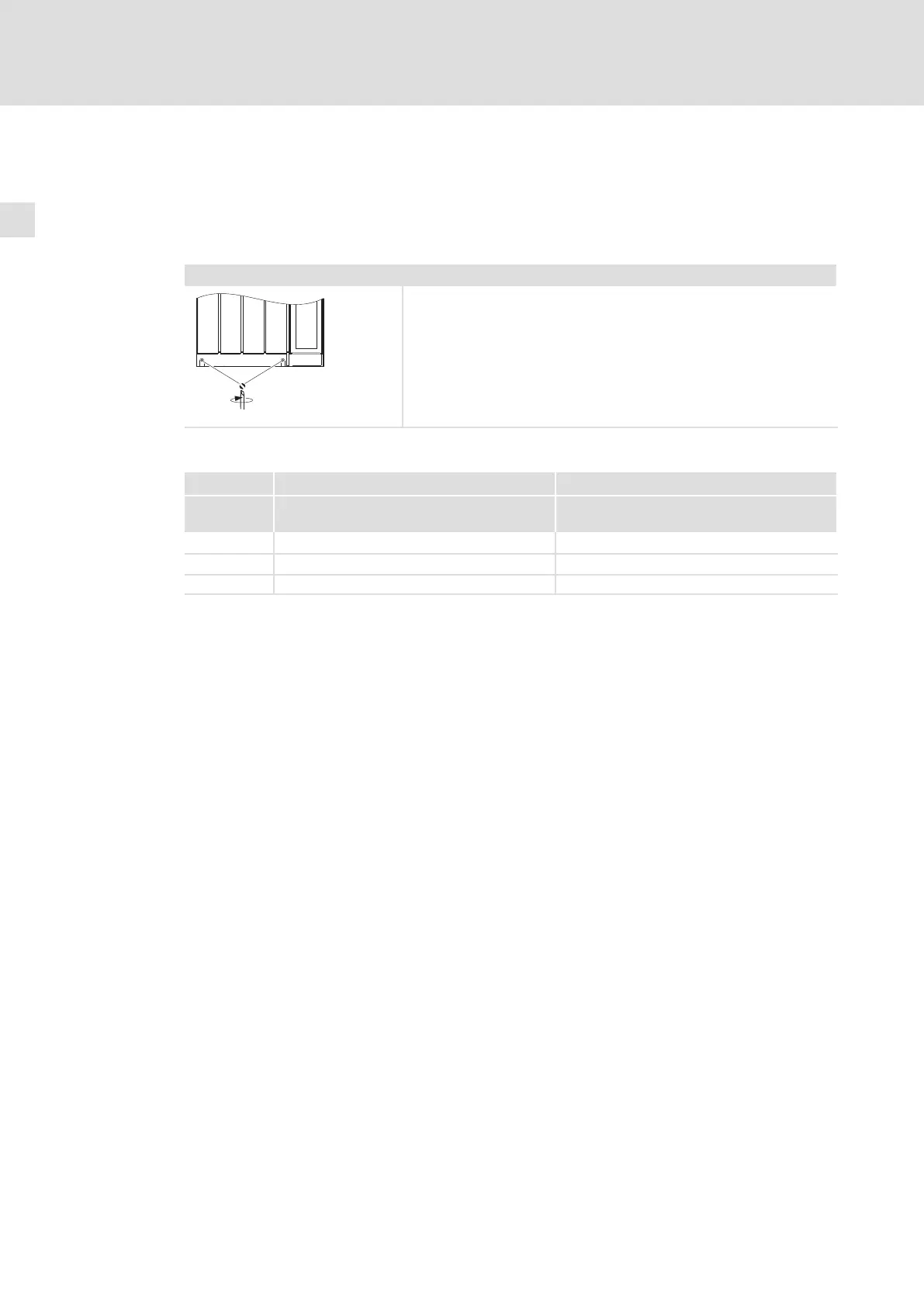

The accessory kit is located inside the controller.
Remove the cover of the drive controller
0
1
1. Remove the screws 
2. Lift cover  up and detach it
9300vec113
Mass of the devices
9300 Standard device "Cold plate" device
Type EVS93xx−Ex
[kg]
EVS93xx−Cx
[kg]
EVS9327−xx 13.5 9.5
EVS9328−xx 15.0 9.5
EVS9329−xx 15.0 ˘

Lenze 9300 Series Specifications

General

Series	9300
Category	Controller
Manufacturer	Lenze
Protection Class	IP20
Communication	Ethernet, PROFIBUS
Communication Interfaces	Ethernet, PROFIBUS
Ambient Temperature	0°C to +45°C
Storage Temperature	-25°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	380-480V AC
Altitude	0 ... 2000 m above sea level, derating > 2000 m
