Lenze 9300 Series Mounting Instructions

Electrical installation
Wiring of the feedback system
Incremental encoder with TTL level at X8
5

212
EDKVS9332X DE/EN/FR 8.0
5.10.3 Incremental encoder with TTL level at X8
Technical data
Field Values
Connection at drive controller Connector: Pin, 9−pole, Sub−D
Connectable incremental encoder Incremental encoder with TTL level
l Encoder with two 5V complementary signals electrically offset by 90°
l Connection of zero track is possible (optional)
Input frequency 0 ... 500 kHz
Current consumption 6 mA per channel
Internal voltage source
(X8/4, X8/5)
5 V DC / max. 200 mA
Wiring
B
V
CC
GND
Z
+KTY
-KTY
1
2
3
4
5
6
7
8
9
A
X8
<50m
A
A
A
B
Z
B
B
Z
Z
KTY

9300VEC018

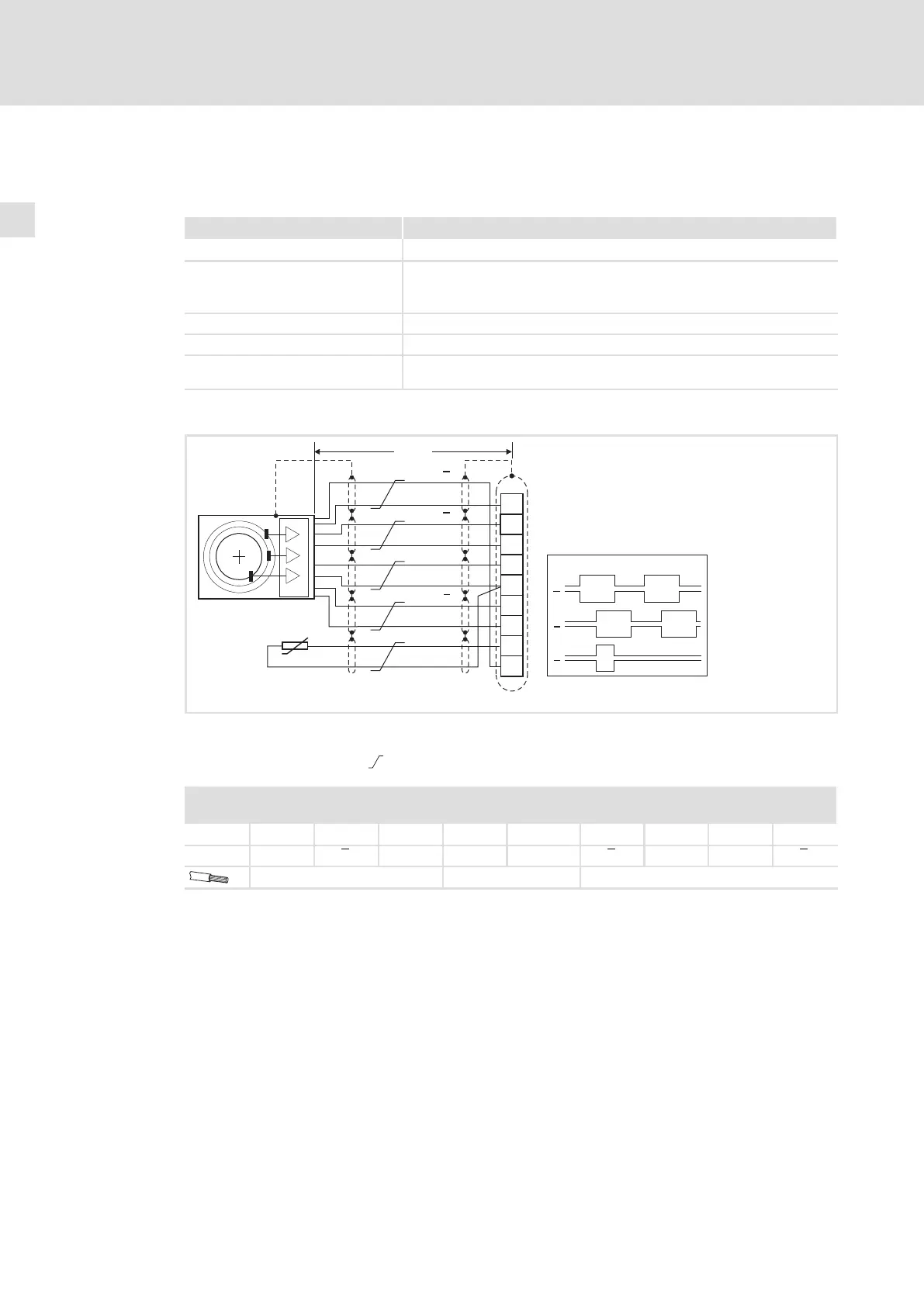

Fig. 5−33 Connection of incremental encoder with TTL level (RS−422)
 Signals for CW rotation
Cores twisted in pairs
X8 − Incremental encoder with TTL level
Connector: Pin, 9−pole, Sub−D
Pin 1
2 3 4 5 6 7 8 9
Signal B A A V
CC
GND (−KTY) Z Z +KTY B
0.14 mm
2
(AWG 26) 1 mm
2
(AWG 18) 0.14 mm
2
(AWG 26)
