Lenze 9300 Series Mounting Instructions

Electrical installation
Standard devices in the power range 55 ... 75 kW
Important notes
5

190
EDKVS9332X DE/EN/FR 8.0
5.7 Standard devices in the power range 55 ... 75 kW
5.7.1 Important notes

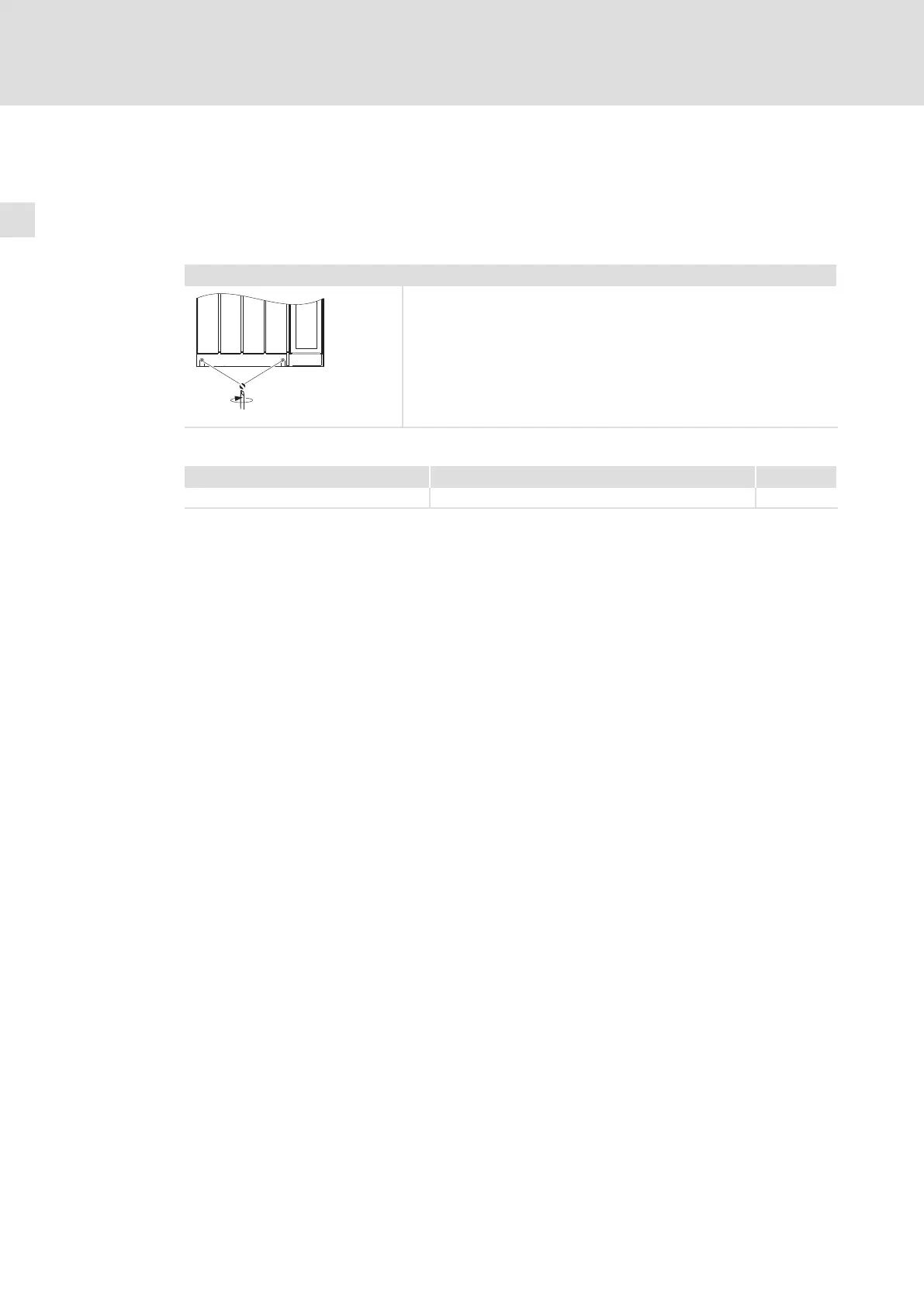

To gain access to the power connections, remove the cover:
Remove the cover of the drive controller
0
1
1. Remove the screws 
2. Lift cover  up and detach it
9300vec113
Installation material required from the scope of supply:
Description Use Quantity
Cable ties 3.5 × 150 mm Strain relief/shield connection for motor cable 4

Lenze 9300 Series Specifications

General

Series	9300
Category	Controller
Manufacturer	Lenze
Protection Class	IP20
Communication	Ethernet, PROFIBUS
Communication Interfaces	Ethernet, PROFIBUS
Ambient Temperature	0°C to +45°C
Storage Temperature	-25°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	380-480V AC
Altitude	0 ... 2000 m above sea level, derating > 2000 m
