Lenze 9300 Series Mounting Instructions

Mechanical installation
Standard devices in the power range 0.37 ... 11 kW
Thermally separated mounting (push−through technique)
4

143
EDKVS9332X DE/EN/FR 8.0
4.1.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique you have to use the controller type EVS93xx−Ex.
Additionally you will require the mounting set for push−through technique:
Type Mounting set
EVS9321−Ex, EVS9322−Ex EJ0036
EVS9323−Ex, EVS9324−Ex EJ0037
EVS9325−Ex, EVS9326−Ex EJ0038
Dimensions
a1a1
c1c1
aa
cc
gg
d1d1
d1d1
dd
b1b1
bb
LL
10
e
f
9300std063

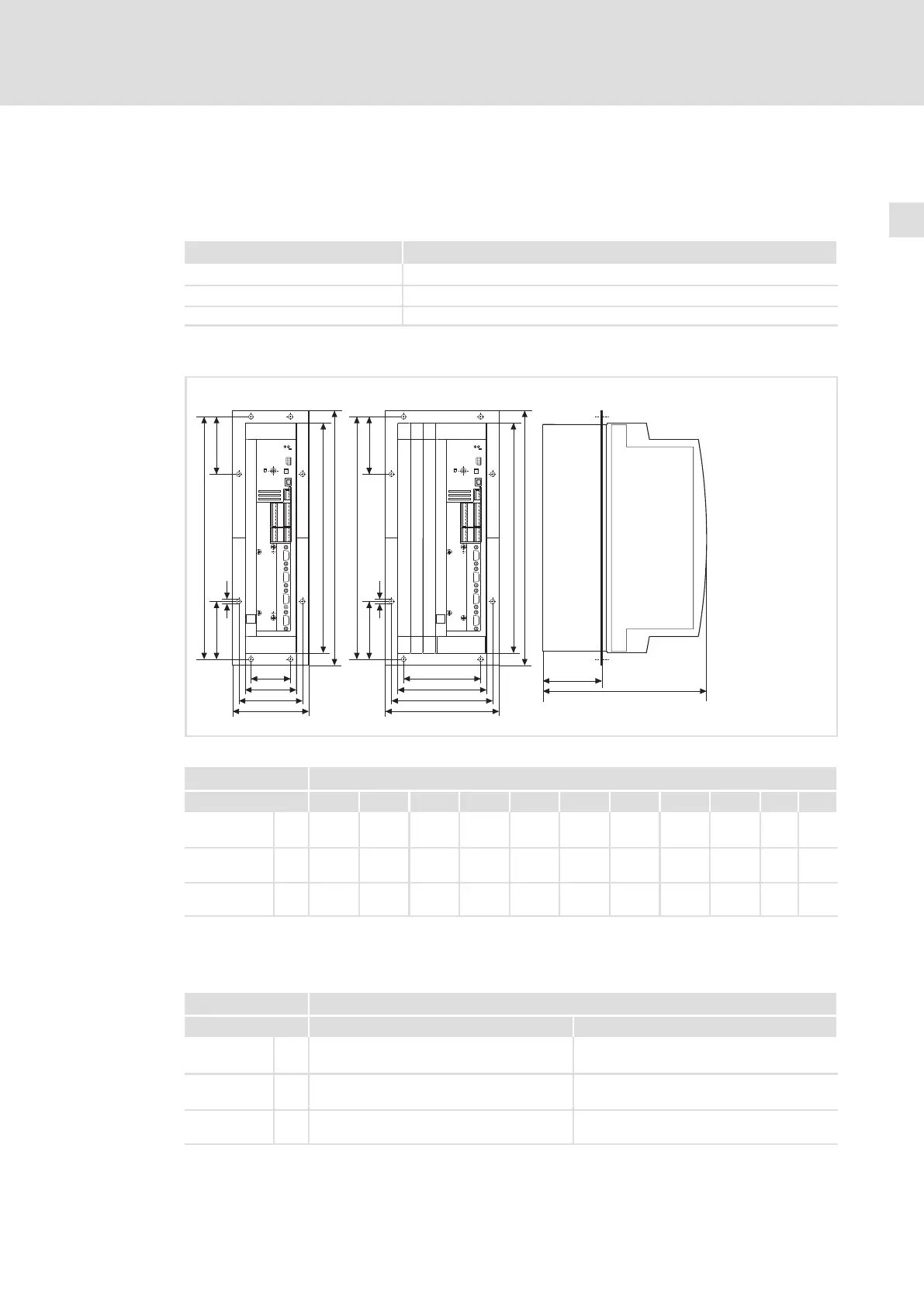

Fig. 4−2 Dimensions for thermally separated mounting 0.37 ... 11 kW
9300 Dimensions [mm]
Type a a1 b b1 c c1 d d1 e
1)
f g
EVS9321−Ex
EVS9322−Ex
 112.5 78 385.5 350 60 95.5 365.5 105.5 250 92 6.5
EVS9323−Ex
EVS9324−Ex
 131.5 97 385.5 350 79 114.5 365.5 105.5 250 92 6.5
EVS9325−Ex
EVS9326−Ex
 169.5 135 385.5 350 117 152.5 365.5 105.5 250 92 6.5
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting cutout in control cabinet
9300 Dimensions [mm]
Type Width Height
EVS9321−Ex
EVS9322−Ex

82 350
EVS9323−Ex
EVS9324−Ex
 101 350
EVS9325−Ex
EVS9326−Ex
 139 350

Lenze 9300 Series Specifications

General

Series	9300
Category	Controller
Manufacturer	Lenze
Protection Class	IP20
Communication	Ethernet, PROFIBUS
Communication Interfaces	Ethernet, PROFIBUS
Ambient Temperature	0°C to +45°C
Storage Temperature	-25°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	380-480V AC
Altitude	0 ... 2000 m above sea level, derating > 2000 m
