Lenze 9300 Series Mounting Instructions

Mechanical installation
Standard devices in the power range 55 ... 75 kW
Mounting with fixing brackets (standard)
4

157
EDKVS9332X DE/EN/FR 8.0
4.4.2 Mounting with fixing brackets (standard)
Mounting material required from the scope of supply:
Description Use Quantity
Fixing bracket Drive controller fixing 4
Hexagon head cap screw M8 × 16 mm
(DIN 933)
For fixing bracket 8
Washer Æ 8.4 mm (DIN 125) For hexagon head cap screw 8
Spring washer Æ 8 mm (DIN 127) For hexagon head cap screw 8
Dimensions
a
c1
e
b1
d
d1
b
l
c
³ 50mm
³ 50mm
g
m
k
0
³ 100mm
³ 100mm
9300std070

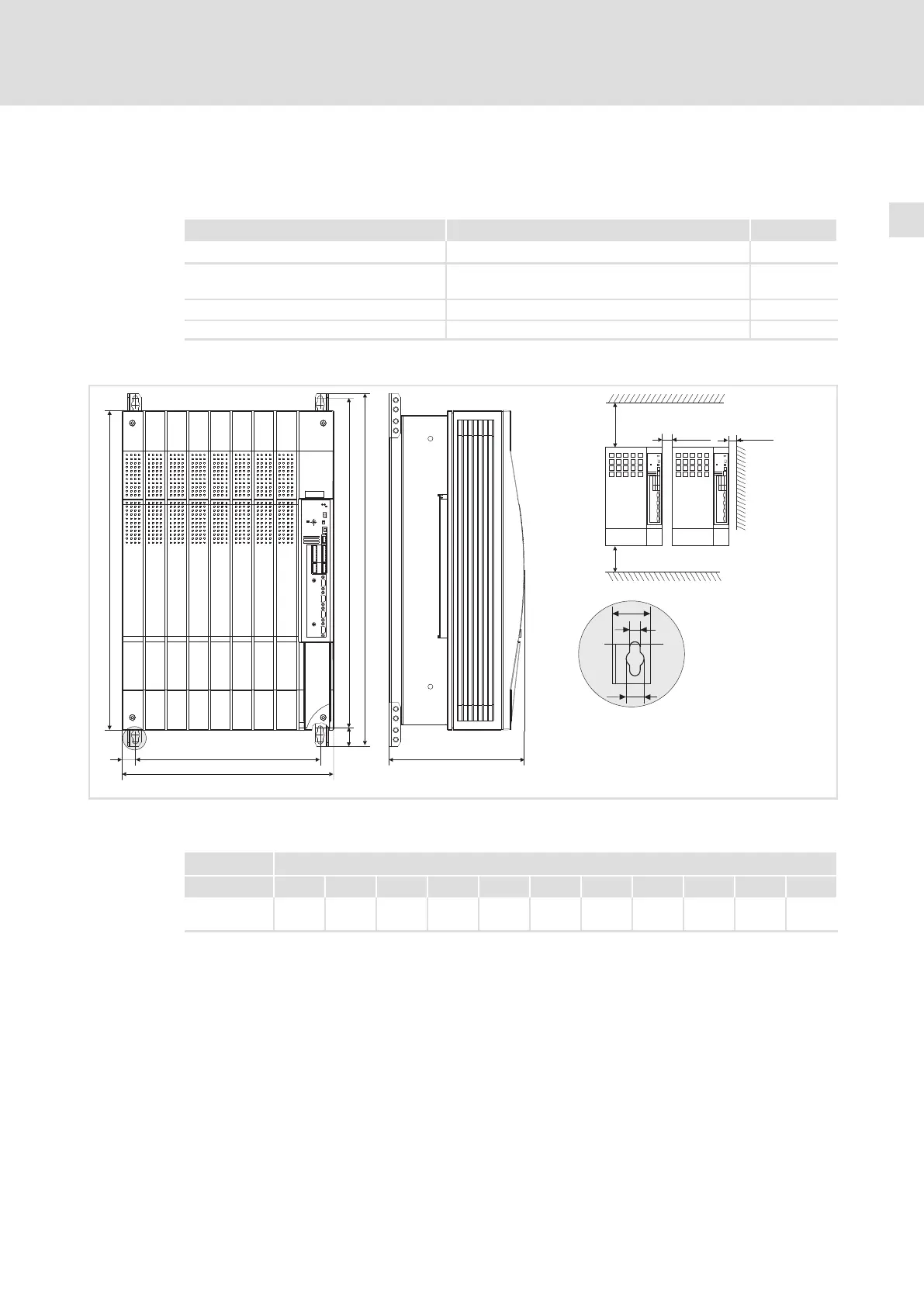

Fig. 4−13 Standard mounting with fixing brackets 55 ... 75 kW
 Arrange drive controllers in a row with spacing to be able to remove eye bolts
9300 Dimensions [mm]
Type a b b1 c c1 d d1 e
1)
g k m
EVS9331−Ex
EVS9332−Ex
450 750 680 28.5 393 702 38 285 11 28 18
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
ƒ Attach the fixing brackets to the heatsink plate of the drive controller.
