Lexmark XC4150 Service Manual

Installation notes:
a After routing the thermistor cable through the hole at the rear of the printer, make sure that the sensor is
placed behind the transfer module retract mechanism to avoid interference with the transfer module retract.
b After installing the sensor to the printer, restart the printer to test the cable connections to the sensor. A
128.xx error indicates a bad connection at the sensor.
c Perform the TPS sensor characterization.
Enter the Diagnostics menu, and then navigate to:
Printer Diagnostics > Printer Setup > EP setup > Toner patch sensor adjust > Sensor Gain Characterization
d Perform the TPS sensor calibration.
Enter the Diagnostics menu, and then navigate to:
Printer Diagnostics > Printer Setup > EP setup > Toner patch sensor adjust > Full Calibration
TPS sled removal
Note: This is not a FRU.

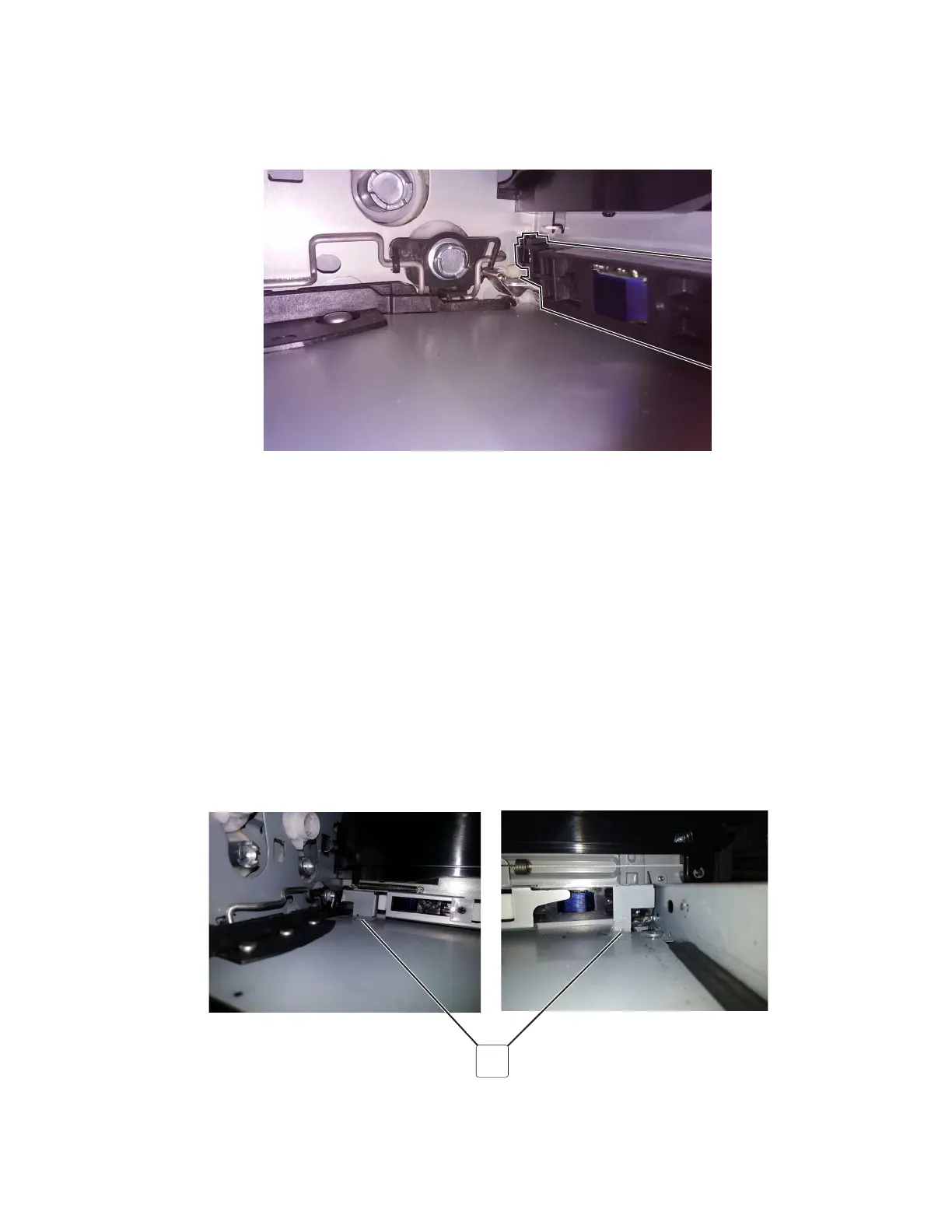

1 Remove the interlocks (A).
A
2 Disconnect the two springs (B) from the TPS sled.
7528
Repair information
381

Lexmark XC4150 Specifications

General

Print technology	Laser
Print speed (black, normal quality, A4/US Letter)	50 ppm
Maximum copy resolution	- DPI
Time to first copy (black, normal)	6.5 s
Time to first copy (color, normal)	7 s
Copy speed (black, normal quality, A4)	50 cpm
Scanner type	ADF scanner
Duplex scanning	Yes
Scan speed (black)	56 ppm
Duplex scan speed (black)	26 ppm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Digital sender	-
Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Maximum internal memory	4096 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	53 dB
Total input capacity	550 sheets
Total output capacity	300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Thin paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	3
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR
