Lexmark XC4150 Service Manual

Isolation unit section

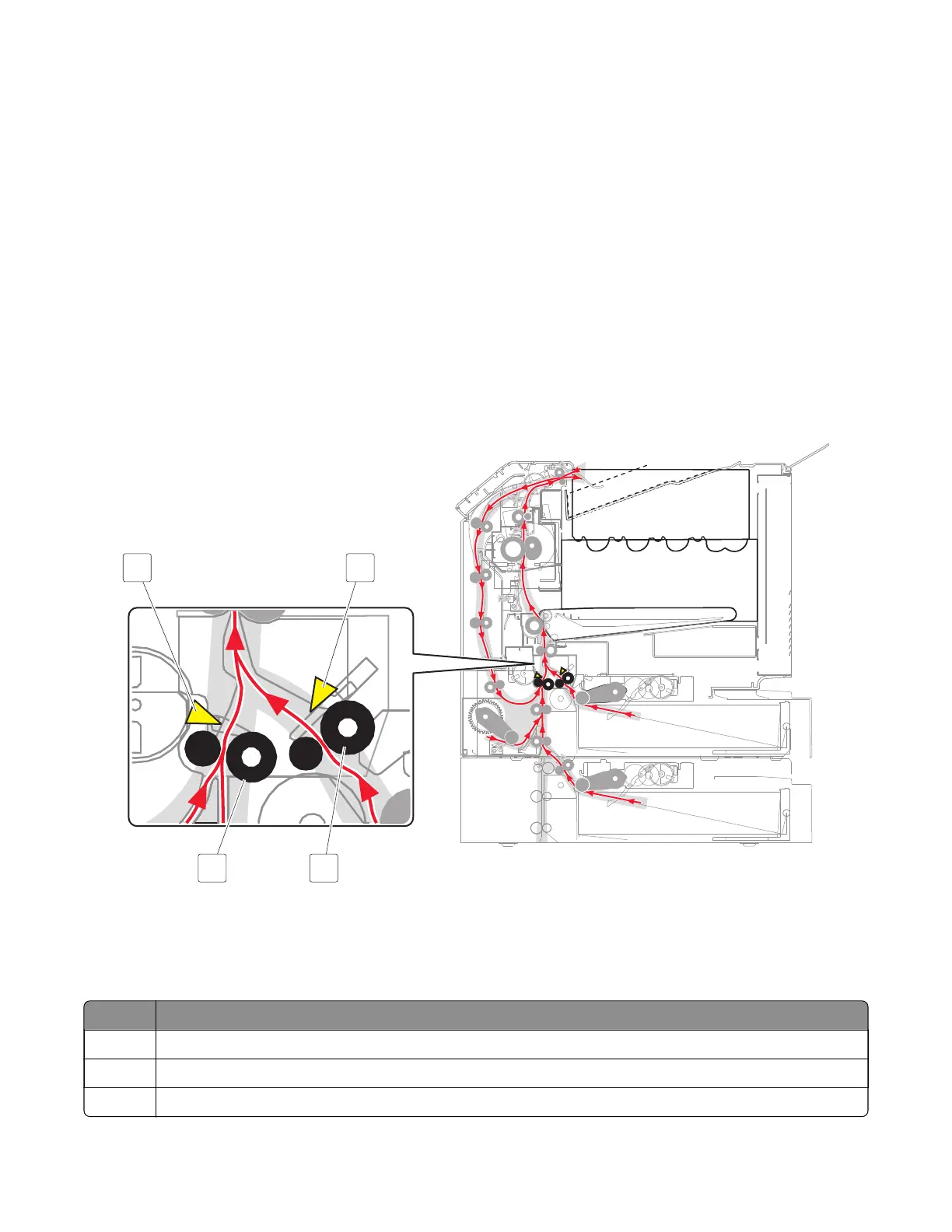

The paper enters the isolation unit through one of two paths, each path having its own isolation roller. If the
paper is fed from tray 1, the tray 1 isolation nip moves the paper through the isolation housing and into the
aligner roller. If the paper is fed from MPF, option tray, or duplex, the alternate isolation roller moves the paper
through the isolation housing and into the aligner roller.
The following occurs if the paper does not reach the sensor (tray 1 pick):
• If the paper is fed from the tray and does not reach the sensor, a 241.16 error is generated.
• If the paper is fed from the MPF and does not reach the sensor, a 240.06 error is generated.
• If the paper is fed from an option tray and does not reach the sensor, a 240.x3 error is generated.
• If the paper is fed from the duplex and does not reach the sensor, a 232.x3 error is generated.
1
2
3
4
#Description
1Sensor (input)
2 Tray 1 isolation roller
3 Alternate isolation roller
7528
Appendix C: Theory of operation
531

Lexmark XC4150 Specifications

General

Print technology	Laser
Print speed (black, normal quality, A4/US Letter)	50 ppm
Maximum copy resolution	- DPI
Time to first copy (black, normal)	6.5 s
Time to first copy (color, normal)	7 s
Copy speed (black, normal quality, A4)	50 cpm
Scanner type	ADF scanner
Duplex scanning	Yes
Scan speed (black)	56 ppm
Duplex scan speed (black)	26 ppm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Digital sender	-
Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Maximum internal memory	4096 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	53 dB
Total input capacity	550 sheets
Total output capacity	300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Thin paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	3
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	533.4 mm
Width	505.46 mm
Height	647.7 mm
