Lexmark XC4150 Service Manual

#Description
4Sensor (MPF/pass‑through)
Aligner section

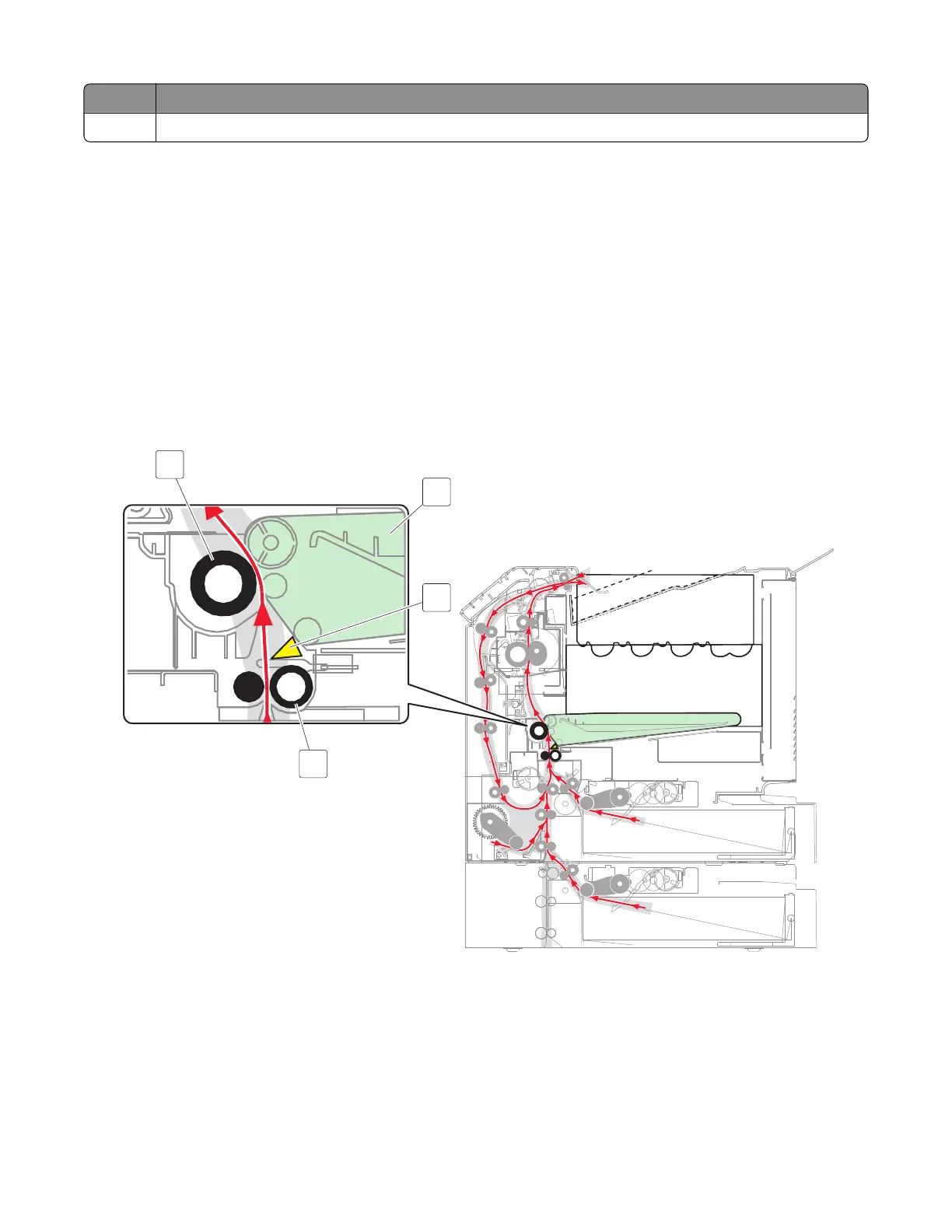

After the paper reaches the sensor (input), or the sensor (MPF/pass‑through), a count is started. The paper is
pushed up against the aligner rollers to align the leading edge of the paper and form a bubble. After a
predetermined count from the sensor (input) is reached, the motor (aligner) turns and moves the paper through
the aligner rollers and the sensor (input). The sensor (input) detects the leading edge of the paper and
determines the timing from the aligner rollers to the second transfer area, ensuring the proper placement of
the image on the paper. Depending on the position of the paper in the paper path, it is fed faster or slower to
ensure that the paper and image are properly aligned. The image is then transferred from the belt to the right
position on the paper in the second transfer area.
1
2
3
4
7528
Appendix C: Theory of operation
532

Lexmark XC4150 Specifications

General

Print technology	Laser
Print speed (black, normal quality, A4/US Letter)	50 ppm
Maximum copy resolution	- DPI
Time to first copy (black, normal)	6.5 s
Time to first copy (color, normal)	7 s
Copy speed (black, normal quality, A4)	50 cpm
Scanner type	ADF scanner
Duplex scanning	Yes
Scan speed (black)	56 ppm
Duplex scan speed (black)	26 ppm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Digital sender	-
Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Maximum internal memory	4096 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	53 dB
Total input capacity	550 sheets
Total output capacity	300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Thin paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	3
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	533.4 mm
Width	505.46 mm
Height	647.7 mm
