5 650sheet duo tray
6 Optional 550sheet trays
7 Standard bin

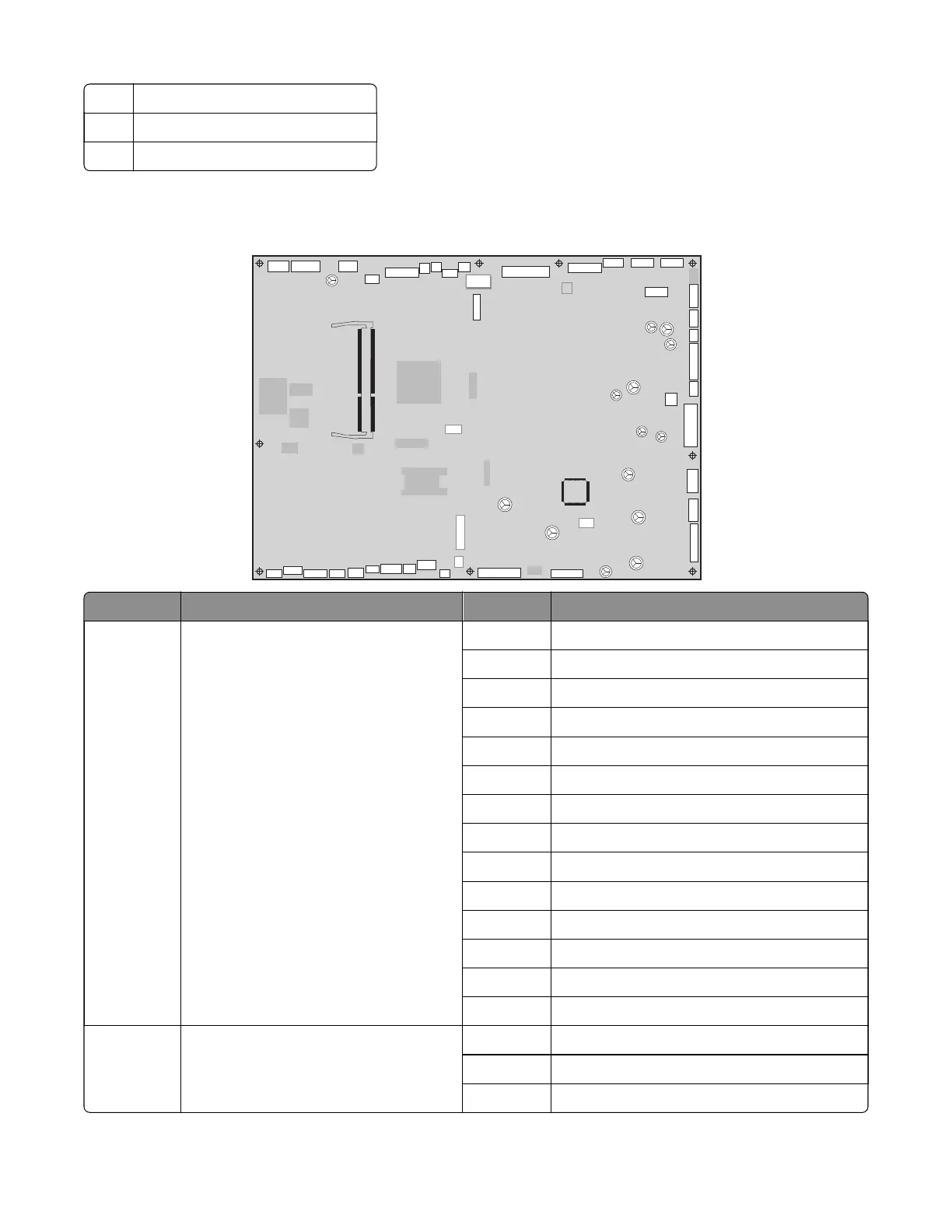

Controller board connectors
JDSNS1
JSPKR1
JLCD1
JMIRR1
JCTM1
JUIPWR1
JFPUSB1
JPHONE2
JCVR1
JWT1
JWTH1
JPSZ1JMSNS1
JBOPT1
JPKSNS1
JSC1
JSHUT1
JTPSAA1
JTHM1
JMTR1
JSP1
JHVPS1
JISP1
JUSB1
JBUSB1
JETH1
JVIPER1
JPH1
JLVPS1
JFSNS
JFAN2
JFAN1
JOUTDC1
JFUSED1
JBOR1
JCARTP1
JCARTS1
JCARTK1
JCCD1
JADF1 JFB1 JHS1
JCAVE1
J61
JFAX1
Connector Connects to Pin no. Signal
JFSNS1 Fuser / LVPS 1 GND
2S_FBR1_IN
3S_FBR2_IN
4S_FBLT_SNS
5S_FHE1_IN
6S_FHE2_IN
7 S_FHE3_IN
8VS10_FNP
9S_FNP_IN
10 GND
11 VS10_FXP
12 S_FX_IN
13 GD_FUSER_ID
14 GND
JFAN1 Fuser / LVPS 1 FAN1_FG_IN
2GND
3 V25_FAN_OUT
7528
Component locations
458
