Lexmark XC4150 Service Manual

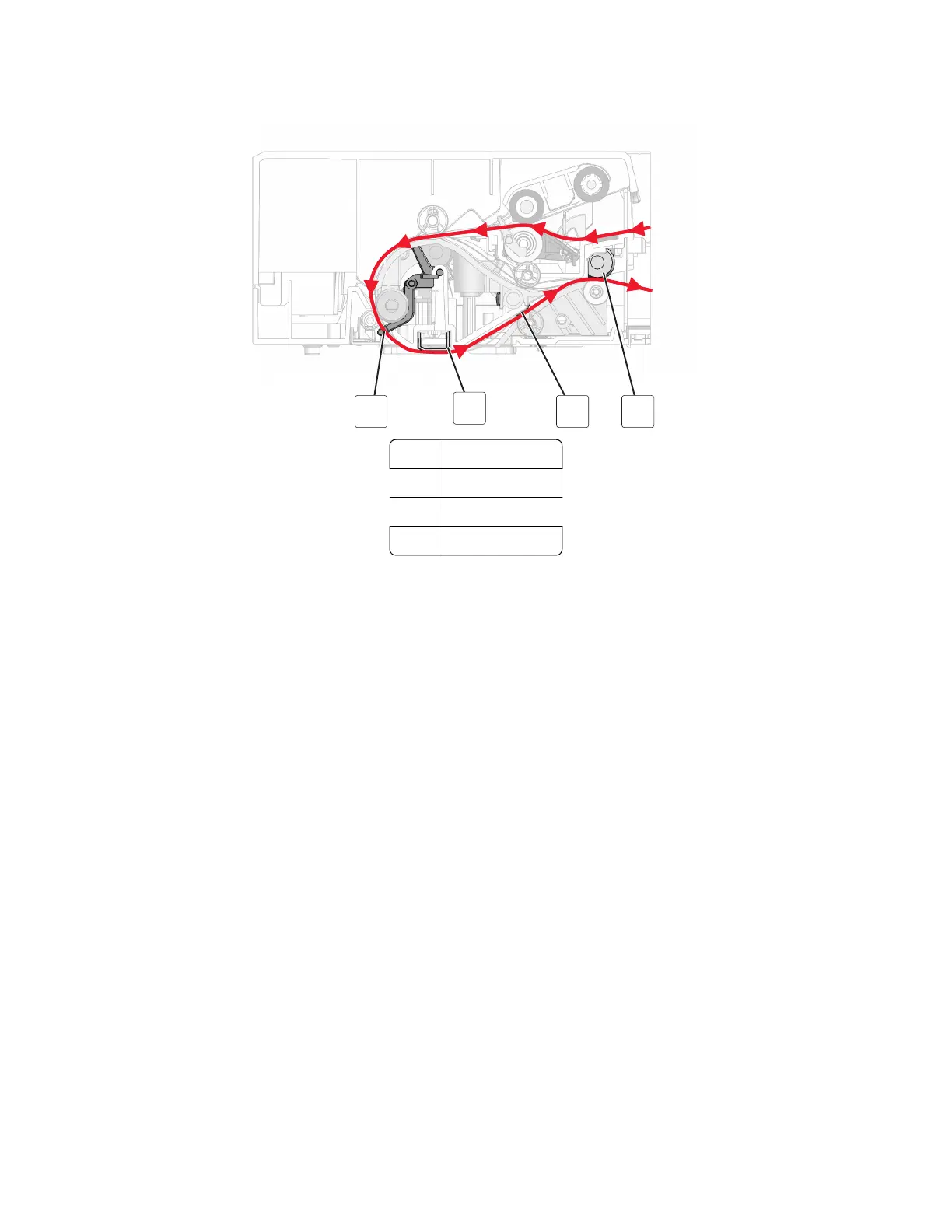

ADF scan and exit
1
2
3 4
1 Sensor (1st scan)
2 Scan area
3 Eject 1 roller
4 Exit roller
After a predetermined count, the scan document reaches the scan area and the image acquisition process is
initiated. While scanning the document, the sensor (1st scan) is polled to determine if the trailing edge of the
document has reached the sensor.
When the trailing edge of the scan document has reached the sensor (1st scan), then the sensor goes to the
o position. Scanning continues for a predetermined length of time.
When scanning is completed, the trailing edge of the scan document continues to the reverse point. If the scan
job is a simplex job, then the document continues to the exit roller (13) and exits the ADF.
7528
Appendix C: Theory of operation
549

Lexmark XC4150 Specifications

General

Print technology	Laser
Print speed (black, normal quality, A4/US Letter)	50 ppm
Maximum copy resolution	- DPI
Time to first copy (black, normal)	6.5 s
Time to first copy (color, normal)	7 s
Copy speed (black, normal quality, A4)	50 cpm
Scanner type	ADF scanner
Duplex scanning	Yes
Scan speed (black)	56 ppm
Duplex scan speed (black)	26 ppm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Digital sender	-
Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Maximum internal memory	4096 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	53 dB
Total input capacity	550 sheets
Total output capacity	300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Thin paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	3
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	533.4 mm
Width	505.46 mm
Height	647.7 mm
