OPERATING PROCEDURES TMS9000-2 OPERATOR MANUAL
4-52
Published 02-21-2019, Control # 611-05

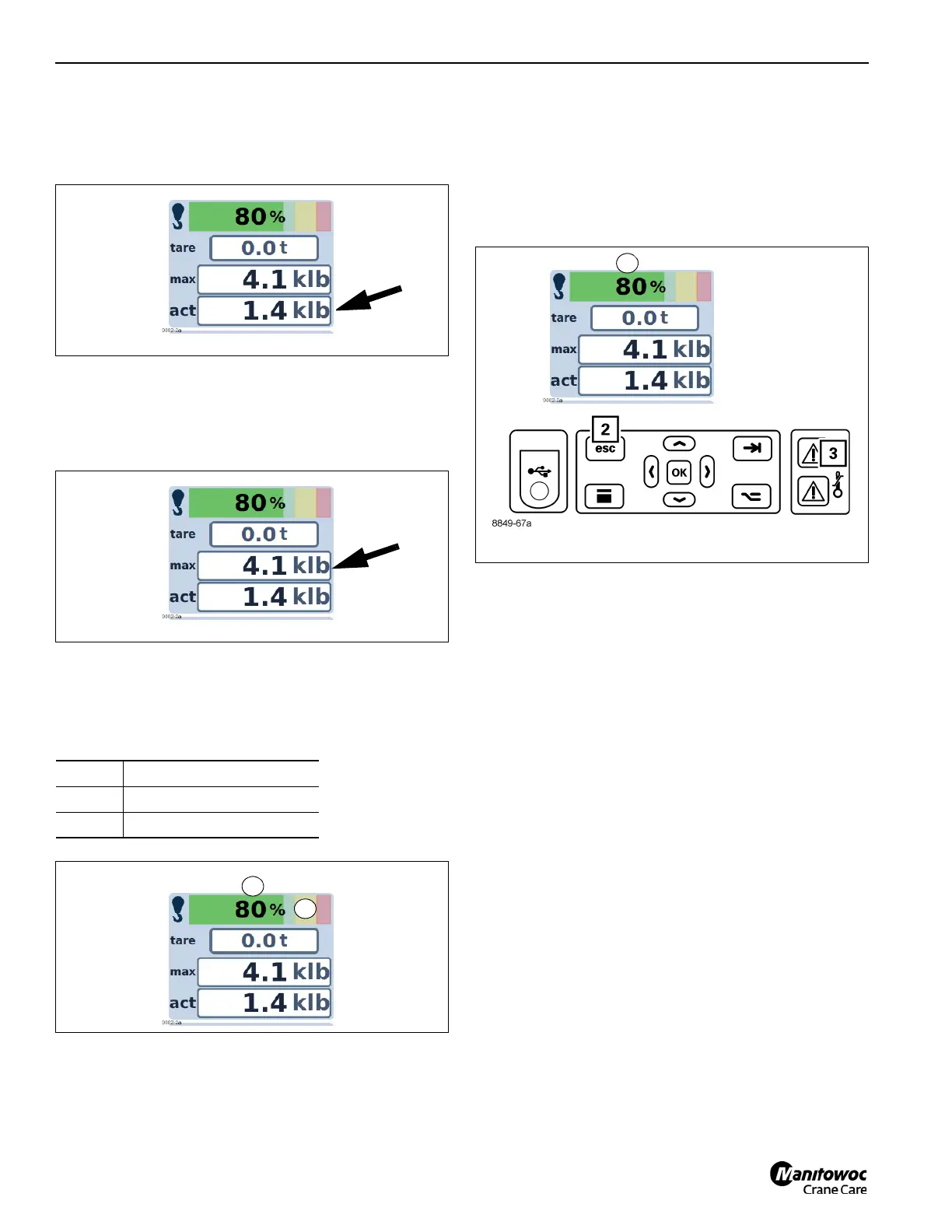

The currently raised load
The display (Figure 4-72) shows the sum of the payload +
lifting gear + hook block.
The maximum load
The display (Figure 4-73) shows the maximum load that can
be lifted in the current rigging mode with the current working
radius.
The degree of utilization
The degree of utilization shows the weight of the current load
as a percentage of the maximum possible load. Display (2,
Figure 4-74) shows the percentage value. Display (1) shows
the ranges in different colors:
RCL early warning
If approximately90% of the maximum permissible load is
exceeded, an RCL early warning will be issued.
- An intermittent buzzer tone will sound.
After five seconds, you can switch off the buzzer
tone using button (2, Figure 4-75).
- The lamp (3) lights up.
- Display (1) shows the current degree of utilization,
e.g. 80%; the bar is green.
NOTE: If the capacity continues to increase, the RCL
will reach an overload state and a RCL shutdown
will occur.
RCL shutdown
There are different types of RCL shutdowns:
- shutdown due to overload,
- shutdown due to an error.
Shutdown due to overload
If the maximum permissible load is exceeded, shutdown will
occur due to overload.
- All crane movements which increase the load
moment will be switched off.
- A continuous buzzer tone will sound.
- After five seconds, you can switch off the buzzer
tone using button (4, Figure 4-76).
- Greater than 100%, indicator 5 will illuminate solid
- Lamp (6) will illuminate.
- Display (3) shows the current degree of utilization,
e.g. 100%; the bar is red.
- The value on display (2) is equal to or greater than
the value on display (1).
Green: 0 – 90%
Yellow: approx. 90 – 100%
Red: greater than 100%
8849-67a
FIGURE 4- 75
9082-2a
1
