Revision:1.0(2023-01-12)
146

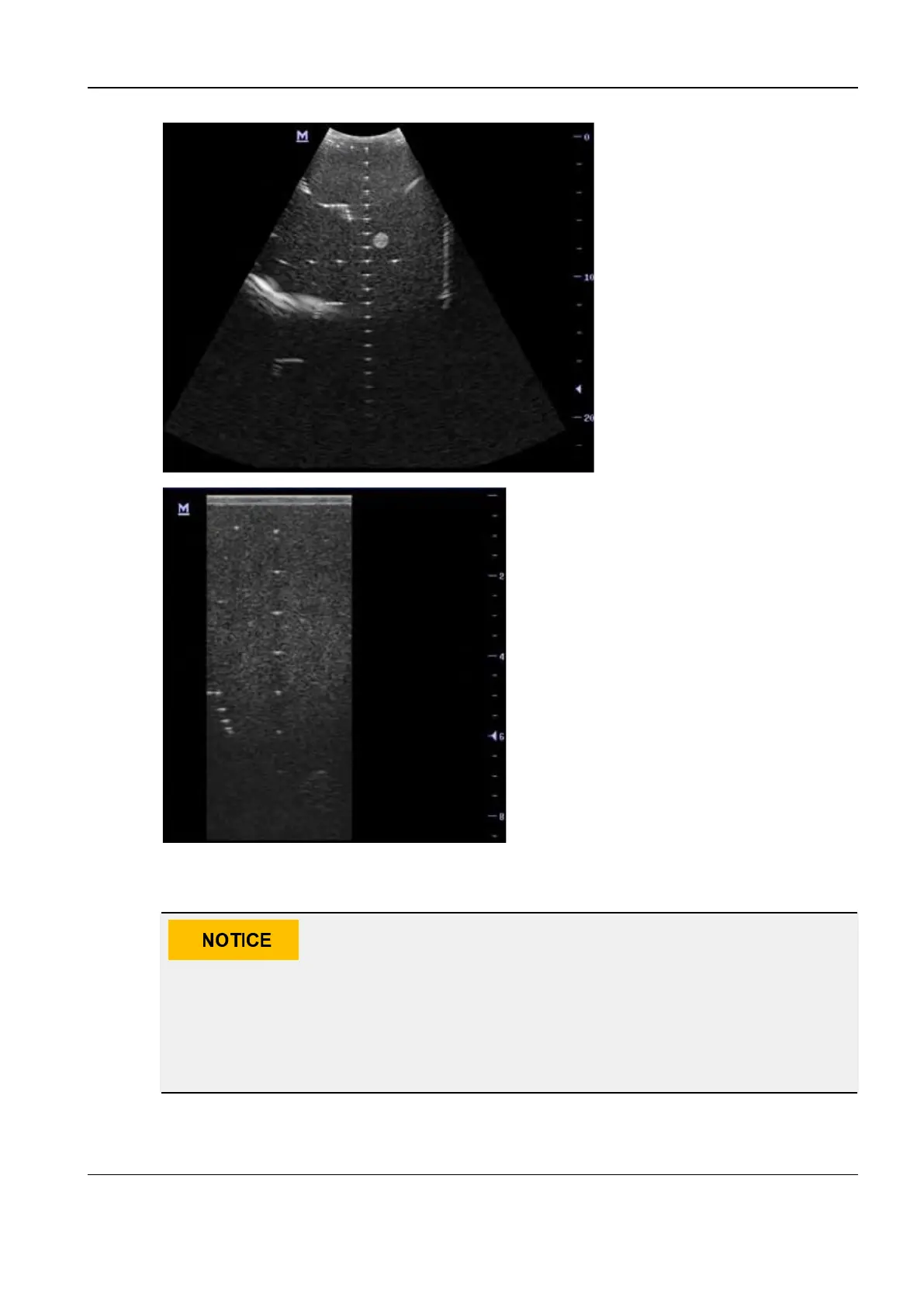

44..55..22..44 Axial Geometric Positioning Accuracy
• The measurement cursor should be placed on the top edge of the target image, not in
the middle or bottom edge.
• The scanning plane should be perpendicular to each target line, in other words, the
scanning plane should be parallel to phantom section plane.
Test procedure:
1. The adjustment steps are the same with the maximum detection depth.
2. Record the distance values with a measurement caliper in step of 20 mm on the axial targets.
Diagnostic Ultrasound System
Service Manual
4 Function and Performance
Check
