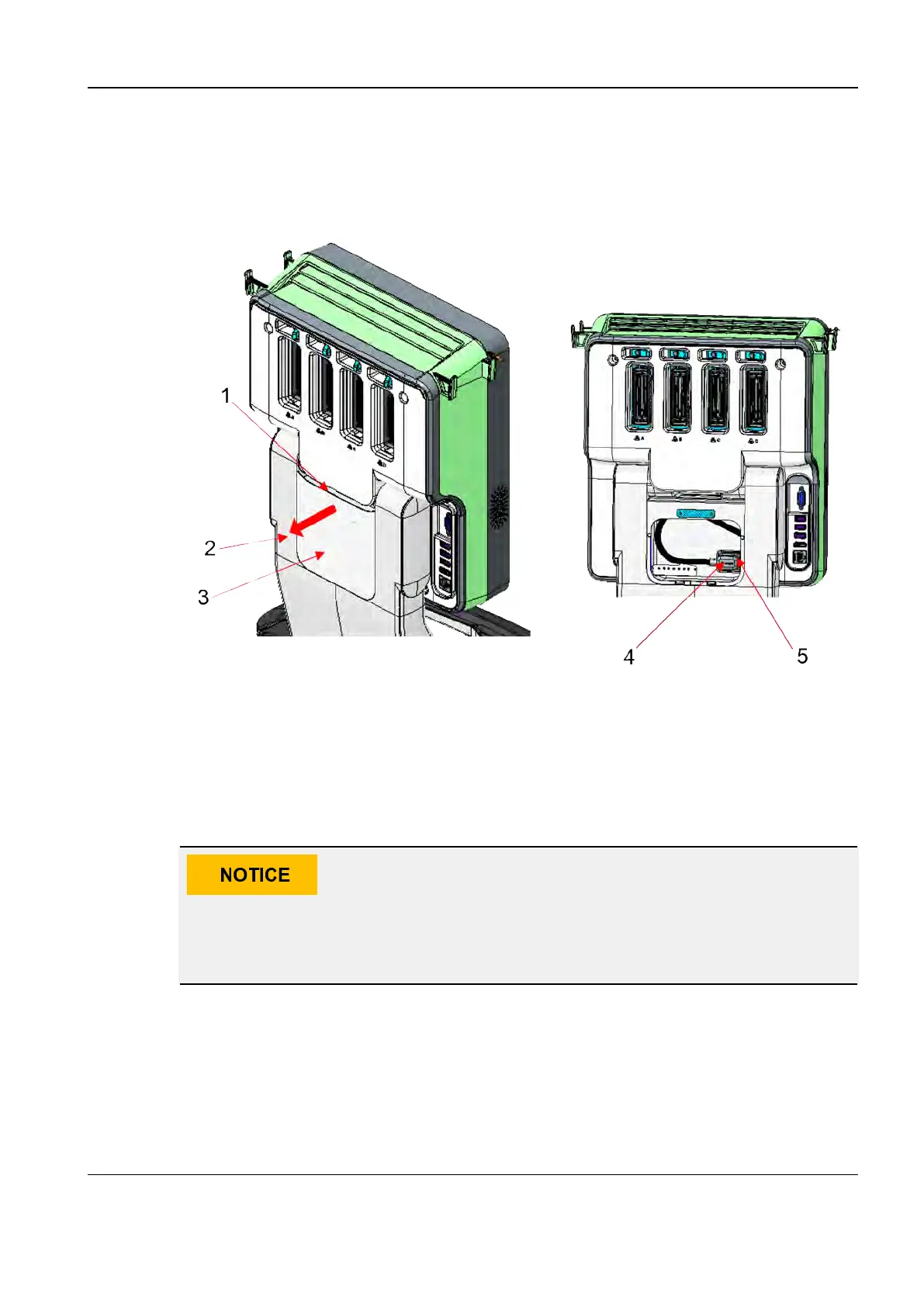

3. Put your fingers on the clasping position of the cable cover, and pull the upper part of the cable
cover outward to open the cable cover. Put the magnetic plug near the magnetic socket. The
magnetic plug will automatically attract to the correct position of the socket, implementing
automatic installation and closing the cable cover.
1 Clasping position of the cable cover
2 Pull out
3 Cable cover
4 Magnetic plug
5 Magnetic socket
Maintain sufficient slack of the power cable to prevent the power plug from
disconnecting from the outlet when the device is moved over a short distance. If the
power plug is disconnected unexpectedly, the examination data will be lost.
3.4.3 Installing the Display Assembly
1. Facing the front of the display assembly, hold the display assembly upright with your hands so
that the display assembly is in the landscape mode. Observe the column on the rear of the
display to make the column appear in the lower part.
Diagnostic Ultrasound System
Service Manual
3 Installation
