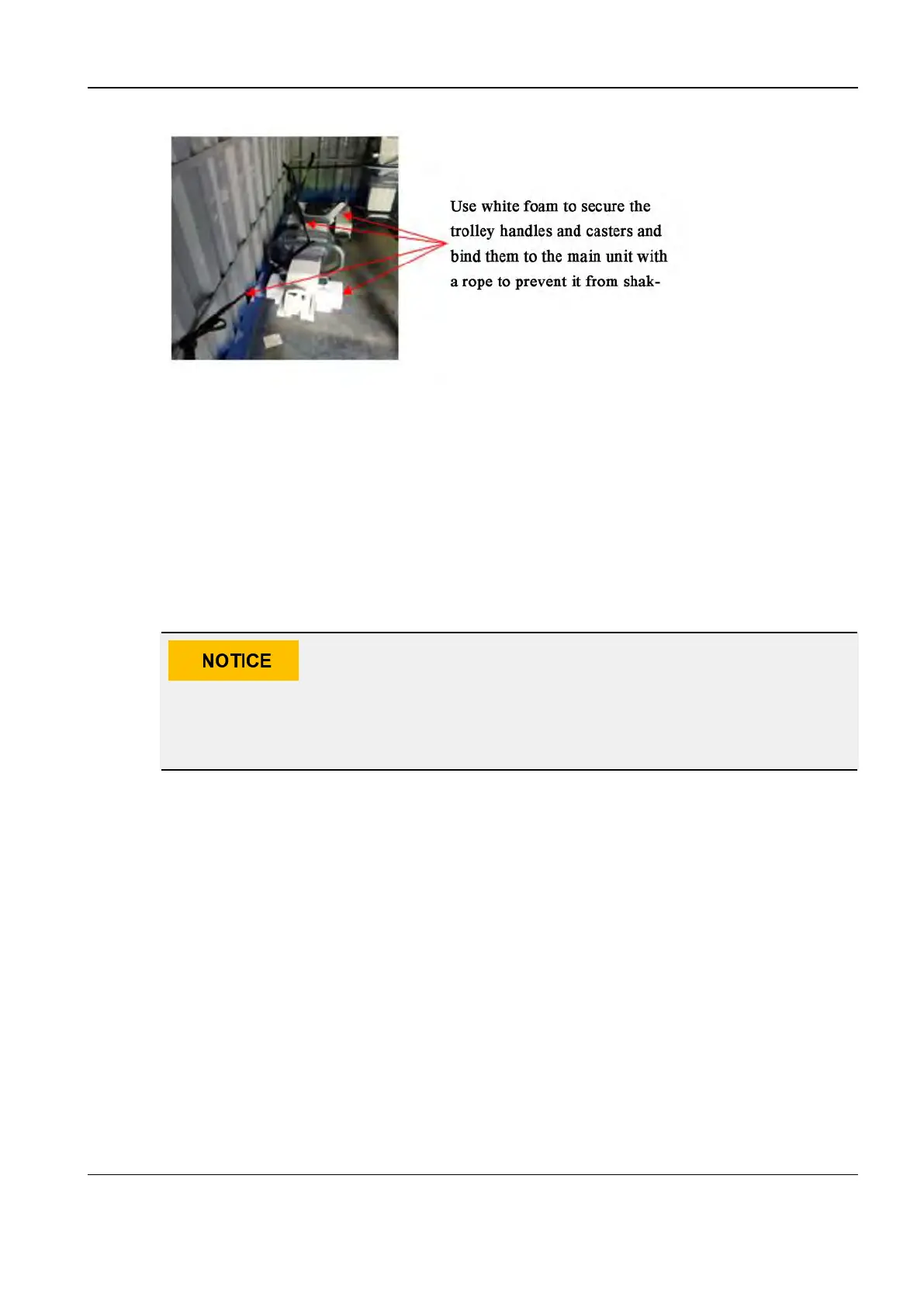

• Transport in an elevator
Make sure the elevator door is more than 570mm wide so that the main unit can be moved in.
3.4 Installation of Whole Device
3.4.1 Connecting the External Power Supply
Connect the plug at the other end of the power cable to a power outlet. Ensure that the ground
terminal of the plug is connected to the protection ground wire in the power outlet.
Maintain sufficient slack of the power cable to prevent the power plug from
disconnecting from the outlet when the device is moved over a short distance. If the
power plug is disconnected unexpectedly, the examination data will be lost.
3.4.2 Installing the Main Unit Box Assembly
1. Use your hands to hold the main unit box assembly, and put the boss of the main unit back
cover in the main unit support groove from top down.
Diagnostic Ultrasound System
Service Manual
3 Installation
