Chapter 13 Changing Settings
168
Changing
Settings
(5) Adjusting the color balance of external monitor output signal
Adjust the color balance of the video signal to be output from the DVI-I connector of the DS-L3.

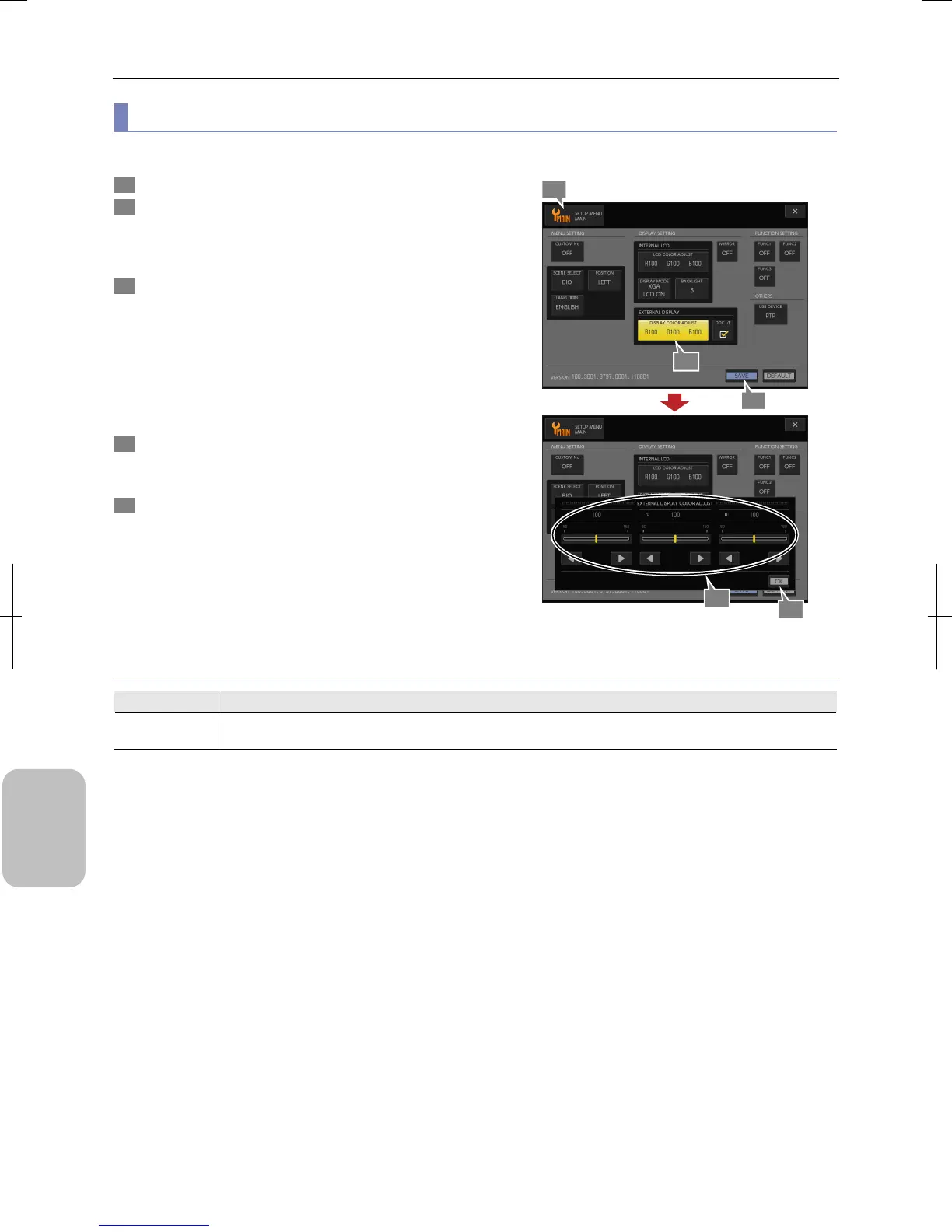

1 Display the [SETUP MENU: MAIN] screen.
2 Press the [DISPLAY COLOR ADJUST] button in the
[DISPLAY SETTING] - [EXTERNAL DISPLAY] area
The [EXTERNAL DISPLAY COLOR ADJUST] window
appears.
3 Adjust each gain for R (red), G (green), and B (blue)
while viewing the external monitor screen.
The window shows a slider and adjustment buttons of each
gain of R, G and B in this order from left.
• Setting range: 50 to 150 (initial setting: 100) for each
color (R/G/B)
Perform adjustment using the slider and left and right
adjustment buttons.
4 Press the [OK] button.
The [EXTERNAL DISPLAY COLOR ADJUST] window
closes.
5 Press the [SAVE] button.
The configured color balance is saved.
Configuring Color Balance of External Monitor
External Monitor Color Balance Adjustment Setting Range
Item Setting
R, G, B
Adjust each gain for R (red), G (green), and B (blue) within a range of 50 to 150 (initial setting: 100).
Each value can be adjusted in units of step 1 (jump 5).
3
1
4
2
5
