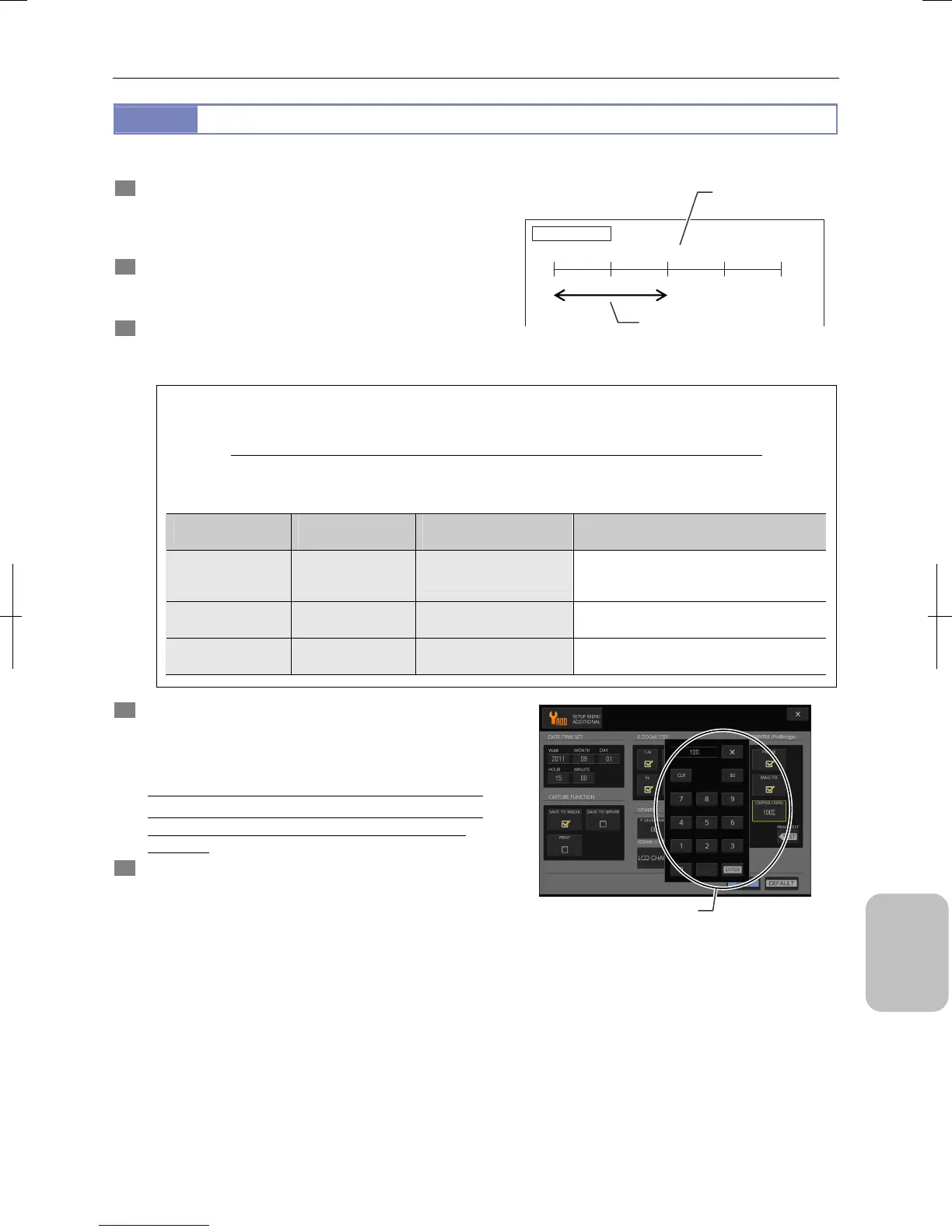

Chapter 15 Performing Direct Printing
205
Connecting to
PC, Printer, and
Network
15.3.3
Setting Compensation (Only in Real 10 Mode)
To adjust the printing magnification used in printing in the Real 10 mode, follow the procedures below.
1 Open the [SETUP MENU: ADDITIONAL] screen and
press the [PRINT TEST] button in the [PRINTER
(PictBridge)] area to print an object image.
An image with the overlaid scale in pixels is printed.
2 Physically measure the dimension of the scale on the
print.
Example: Measure distance between 0 and 500 pixels.
3 Use the following conversion formula to calculate
dimension of the scale on the object from reading of the
scale (in pixels).
Nikon DS-L3 Test Print
0 500 1000
Conversion formula:
• Dimension of scale on object
Reading of scale (in pixels) X Pixel size of image pickup device
Optical magnification (objective lens magnification X relay lens magnification)
Example of calculation: Reading of scale = 500 pixels
DS Camera Head
Pixel size of Image
Pickup Device
Optical Equipment
Magnification (Example)
Dimension of Scale on Object
DS-Fi2
DS-Fi1
DS-Fi1c
3.4 μm
Objective lens: 40x
Relay lens: 0.7x
500 pixels x 3.4 μm / (40x X 0.7x)
= Approx. 61 μm
DS-Vi1 4.4 μm
Objective lens: 40x
Relay lens: 0.55x
500 pixels x 4.4 μm / (40x X 0.55x)
= Approx. 100 μm
DS-Qi1Mc
DS-Ri1
6.45 μm
Objective lens: 40x
Relay lens: 0.7x
500 pixels x 6.45 μm / (40x X 0.7x)
= Approx. 120 μm
4 Press the [CMP(50-150%)] button and enter scaling
ration compensation value.
When this button is pressed, a keypad appears. Enter a
desired number and press the [ENTER] key.
Adjust magnification so that the following equation is true.
Dimension of the scale on the print / Dimension of the
scale on the object = Magnification factor of optical
equipment
5 Repeat steps 1 to 4 and obtain a more precise value.
Setting Compensation
Example:
Measure length
between 0 to 500.
Magnification
adjustment scale
Set compensation.
