Chapter 2 Names of Parts and Their Functions
9
Please
Read First
2.2
DS Camera Head

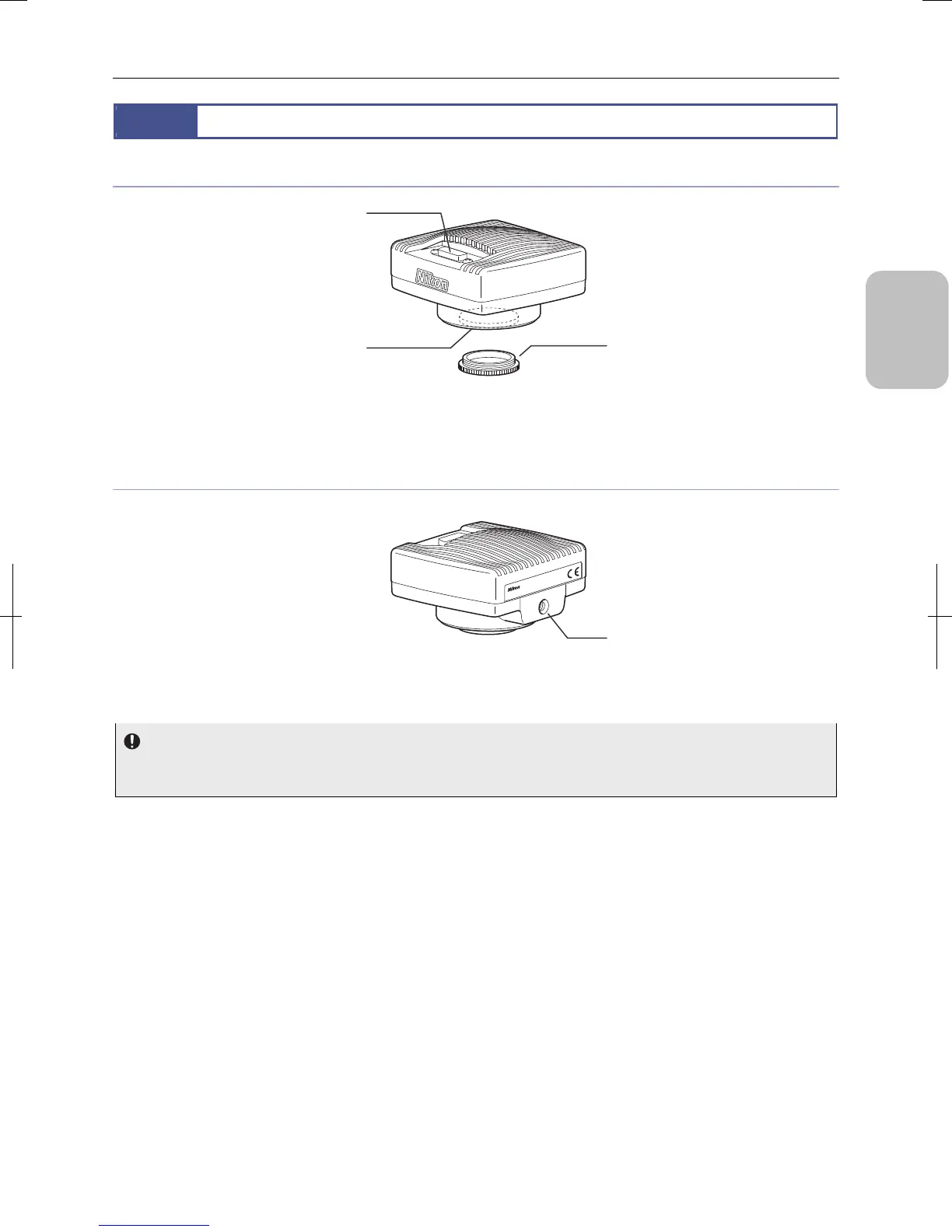

Front side of DS camera head
Front side of DS camera head
DIGITAL DIGHT DS-Fi2
NIKON CORPORATION MADE IN JAPAN XXXXXXXX
Cautions on DS camera cable connection
Make sure that the power of DS-L3 is off when you connect the DS camera cable. Plugging or unplugging the cable with
the power on may cause malfunction.
CAMERA OUT connector
Connector for connecting the DS camera
head and DS-L3. Use the specialized DS
camera cable for connecting them.
C mount
General-purpose mount for fixing a
microscope or optical lens.
When you photograph with a microscope,
fix the C mount adapter for connecting the
microscope.
C mount cap
Cap for protection from dust.
To avoid dust adhering on the internal
image pickup device, do not forget to put
on the cap when you detach the DS
camera head from an optical lens or
microscope.
Tripod mount
Used when the DS camera head is fixed
on a tripod mount.
