Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 95
To put the acoustic wheel back on the RollerFORM
1. Install the plain flange:
a) Align the holes on the stainless steel ring to the holes on the flange (see
Figure 6-21 on page 95).

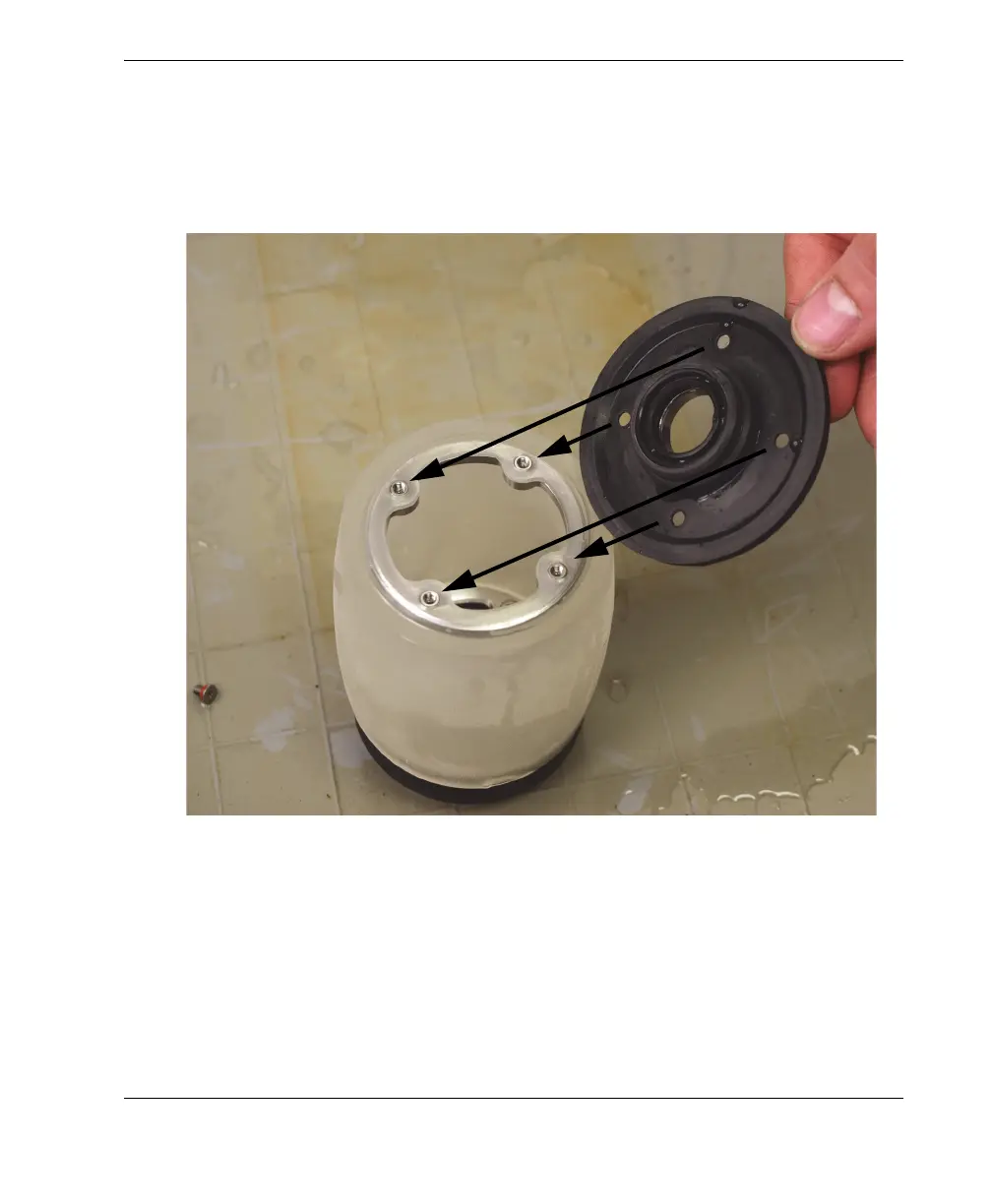

Figure 6-21 Installing the plain flange
b) Install the four screws and their gaskets in the plain flange, and then, using a
cross pattern, tighten the screws, first lightly, and then tightly (see Figure 6-22
on page 96).
