Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Chapter 6 96

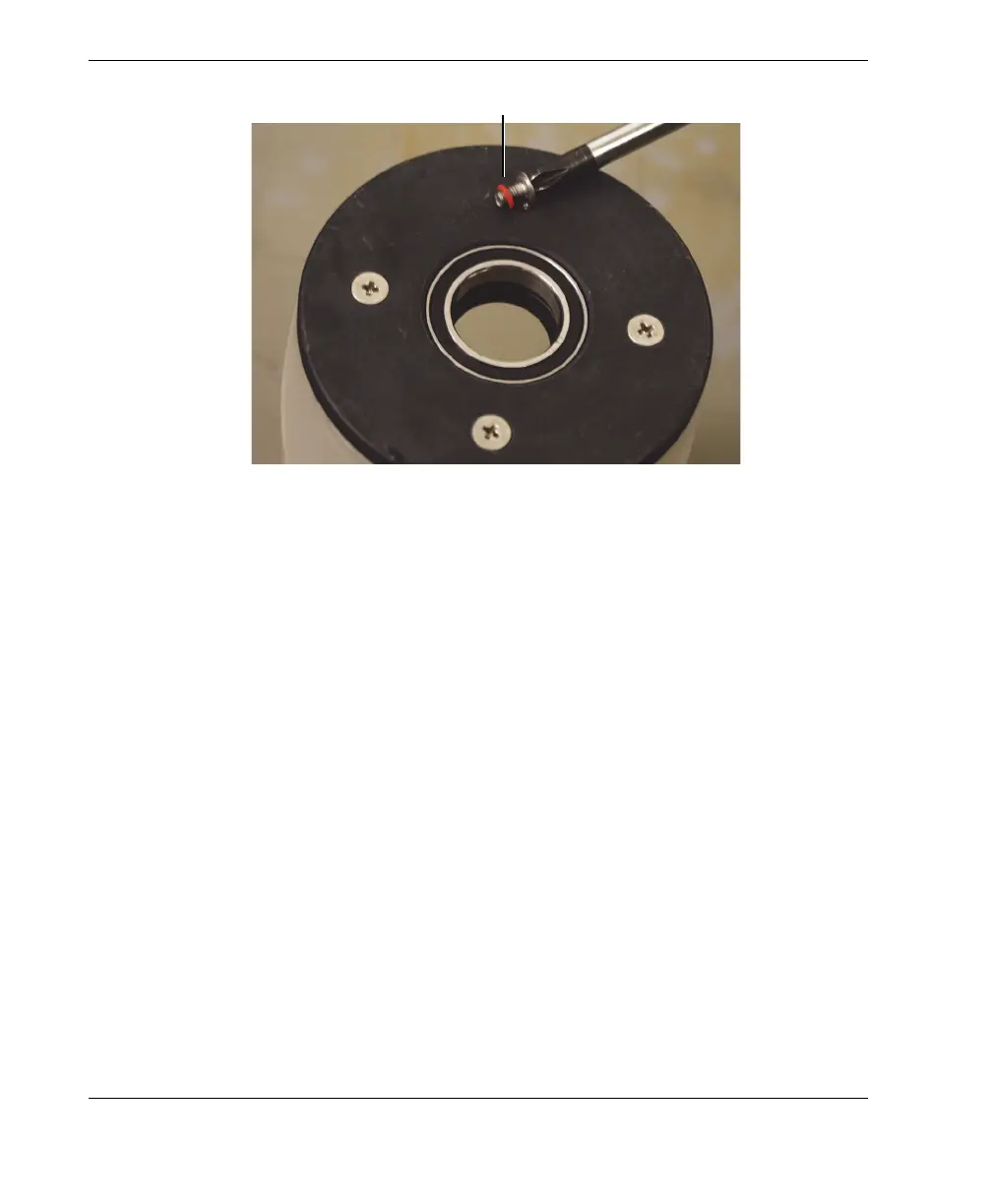

Figure 6-22 Installing the plain flange’s external retaining screws
2. Install the probe inside the acoustic wheel. For more information, see “Installing
the Probe in the Acoustic Wheel” on page 80.
3. Install the acoustic wheel on the RollerFORM. For more information, see
“Installing the Acoustic Wheel on the RollerFORM Scanner” on page 107.
4. Fill the liquid chamber. For more information, see “Filling the Acoustic Wheel’s
Liquid Chamber” on page 39.
6.6 Changing the Tire
The RollerFORM’s acoustic wheel tire must be changed when it is worn out.
Before the tire can be changed, the acoustic wheel must be removed from the scanner,
the liquid must be emptied from the chamber, and the probe-axle must be removed.
The necessary procedures are contained in the following sections:
• “Emptying the Acoustic Wheel’s Liquid Chamber” on page 74
• “Removing the Acoustic Wheel from the RollerFORM Scanner” on page 71
• “Removing the Probe from the Acoustic Wheel” on page 77
Flange’s external retaining screw with gasket
