Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Chapter 6 72
To remove the acoustic wheel from the RollerFORM
1. Remove the probe angle-adjustment knob, the spring-lock washer, and the angle
cursor from the angle adjustment arm on the RollerFORM (see Figure 6-1 on
page 72).

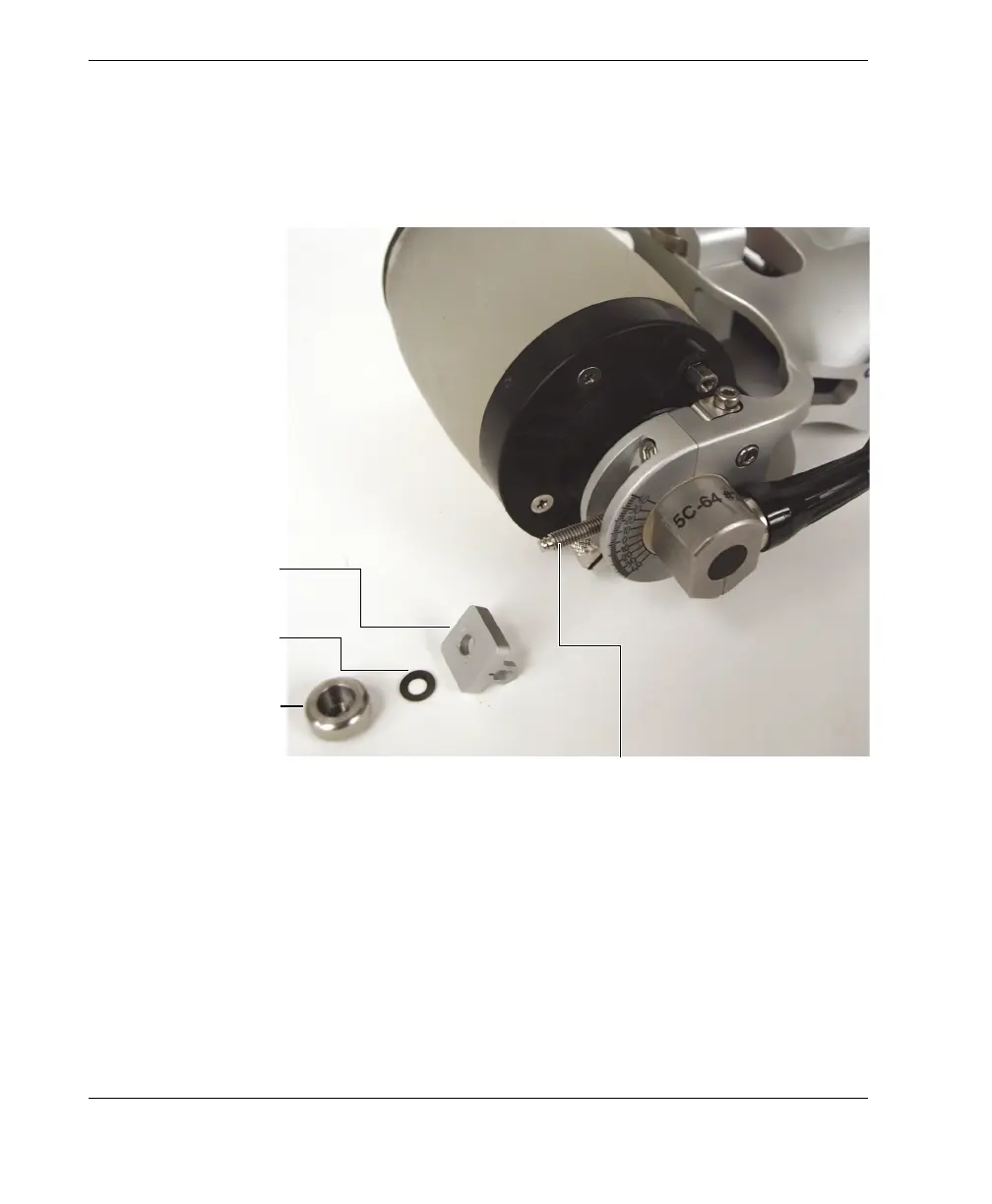

Figure 6-1 Removing the probe angle-adjustment components
2. Using the hexagonal key provided with the RollerFORM, remove the four screws
and the two brackets from the frame of the RollerFORM (see Figure 6-2 on
page 73).
The four retaining screws on the brackets are equipped with lock washers.
Angle-adjustment arm
Angle-adjustment knob
Spring-lock washer
Angle cursor
