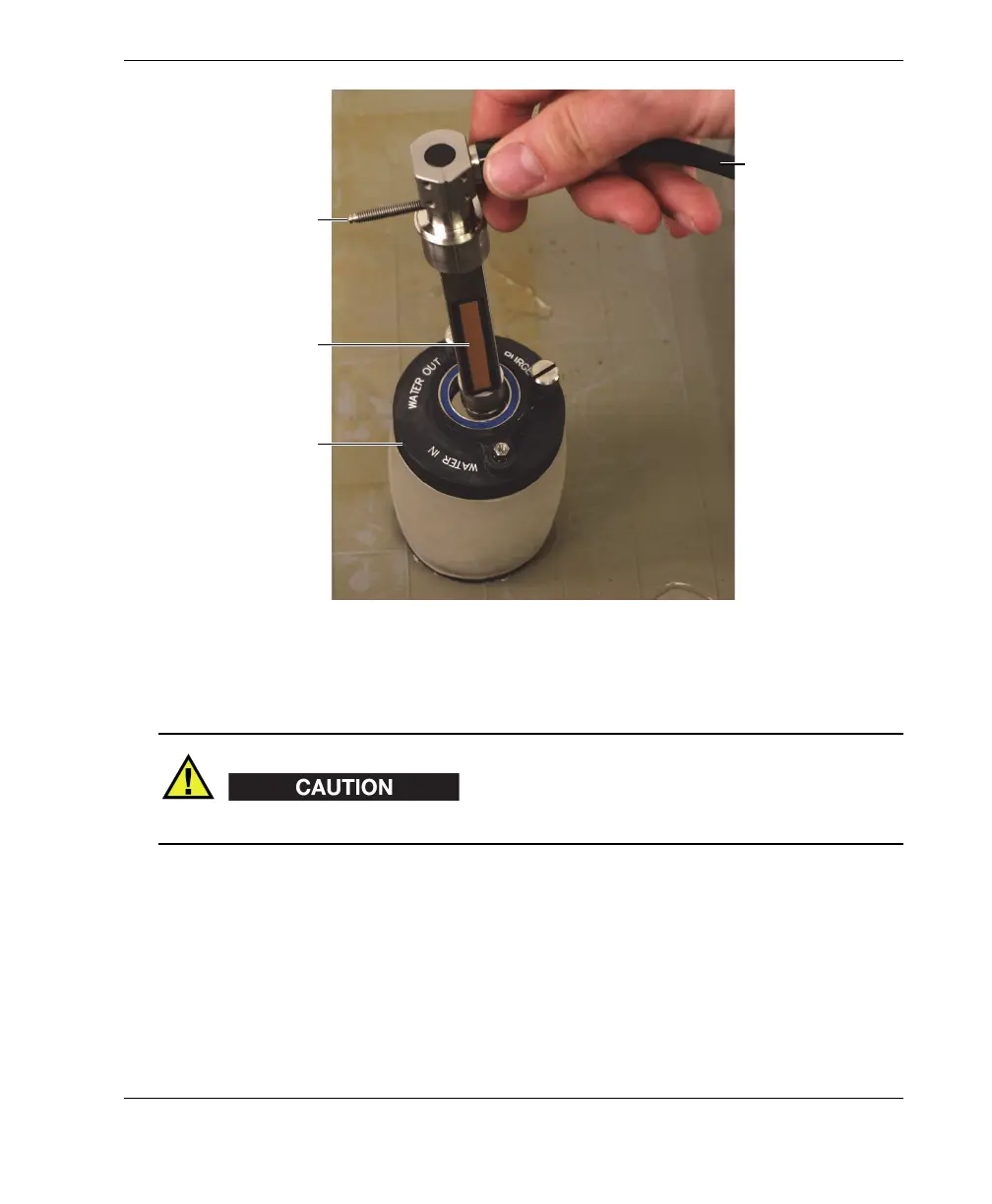

Figure 6-9 Inserting the probe-axle inside the acoustic wheel
Be careful not to damage the bearing seal underneath the C-clip with the pliers tips.
2. Holding the acoustic wheel vertically (probe-cable side down), use the supplied
retaining C-clip pliers to carefully install the external retaining C-clip on the
shoulder above the groove on the end of the probe-axle (see Figure 6-10 on
page 82).
Probe angle-
adjustment arm
Flange with valves
Probe cable
Probe elements
