DMTA-20073-01EN, Rev. C, November 2015
Chapter 6
84

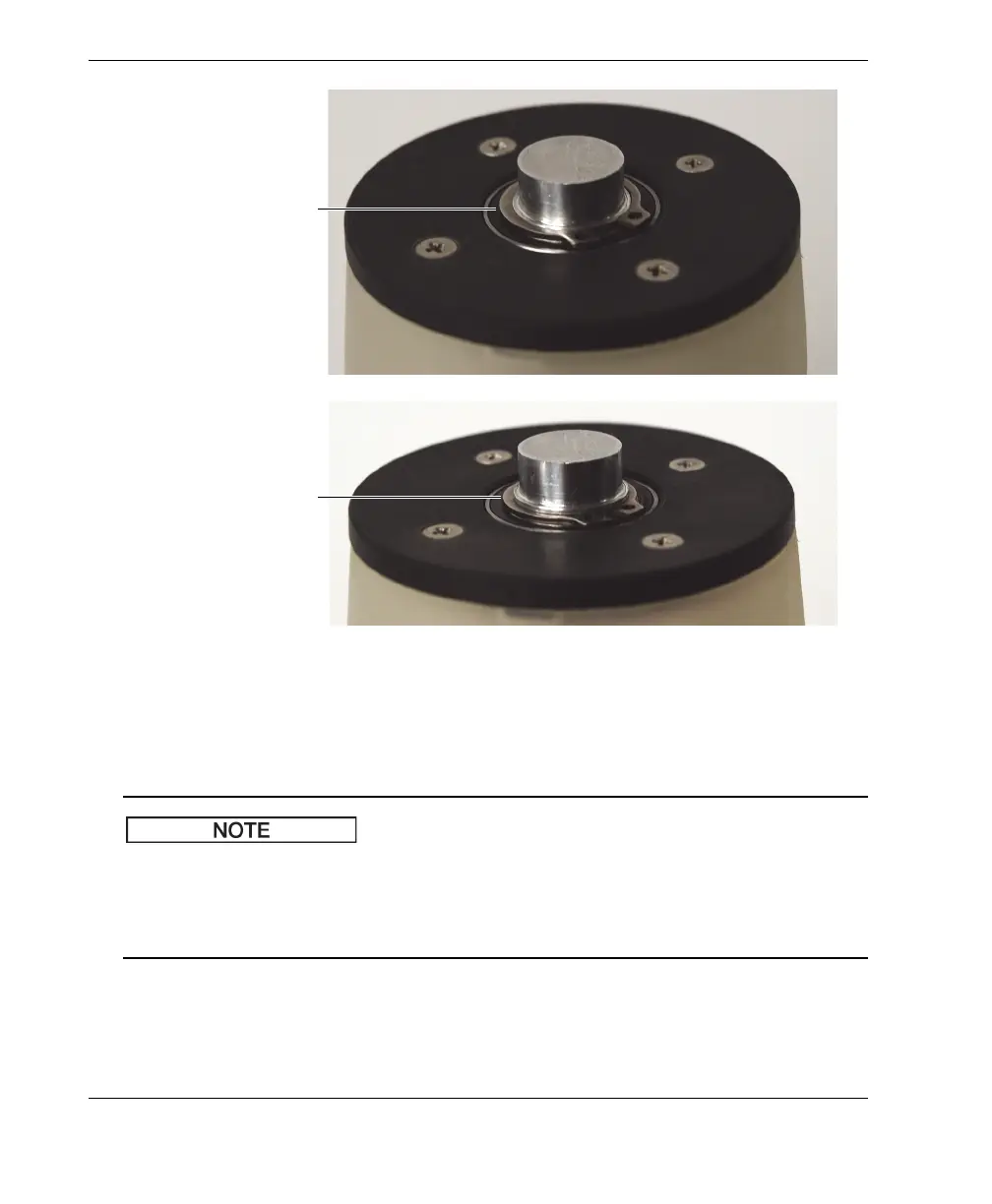

Figure 6-12 Pushing the C-clip in the groove on the probe-axle end with the C-clip
installation tool
4. If needed, insert the probe cable inside the RollerFORM’s cable sheath.
To ensure that the acoustic wheel containing the probe-axle can be easily mounted on
the RollerFORM, make sure that the probe cable extends from the rear end of the
RollerFORM handle by a length of approximately 25 cm (10 in.), which is about 1 cm
(0.40 in.) longer than the total length of the handle (see Figure 6-13 on page 85).
C-clip on shoulder on
probe-axle end
C-clip in groove on
probe-axle end
