Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 79
2. Using the supplied retaining C-clip pliers, carefully remove the external retaining
C-clip (see Figure 6-7 on page 79).
Make sure not to overbend the C-clip as it will deform and will have to be replaced.

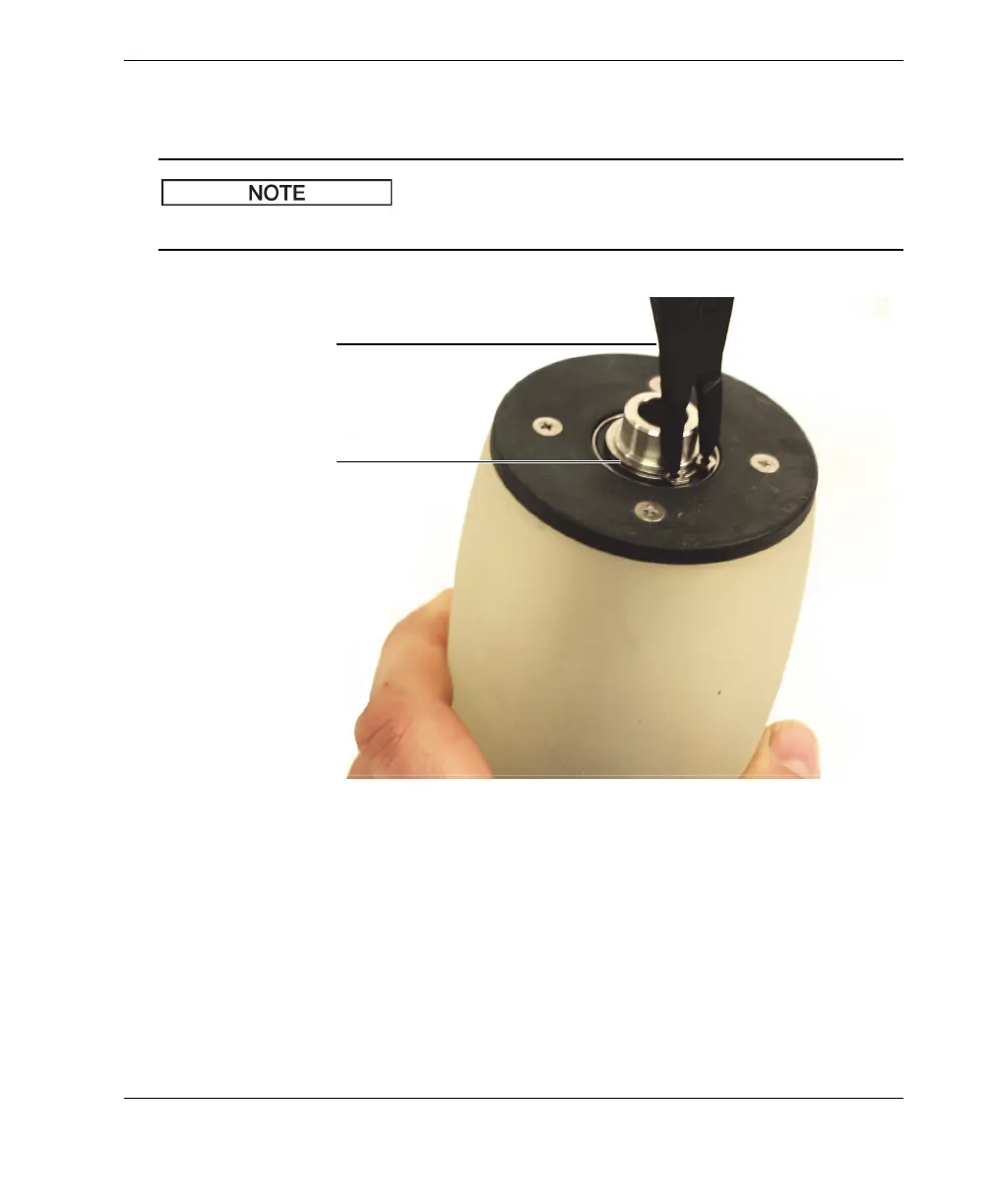

Figure 6-7 Removing the external retaining C-clip from the end of the probe-axle
3. From the side of the acoustic wheel opposite to the probe cable, gently push the
probe-axle out of the wheel (see Figure 6-8 on page 80).
Retaining C-clip on the
end of the probe-axle,
located under the axle-
end bushing
Retaining C-clip pliers
