Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 109

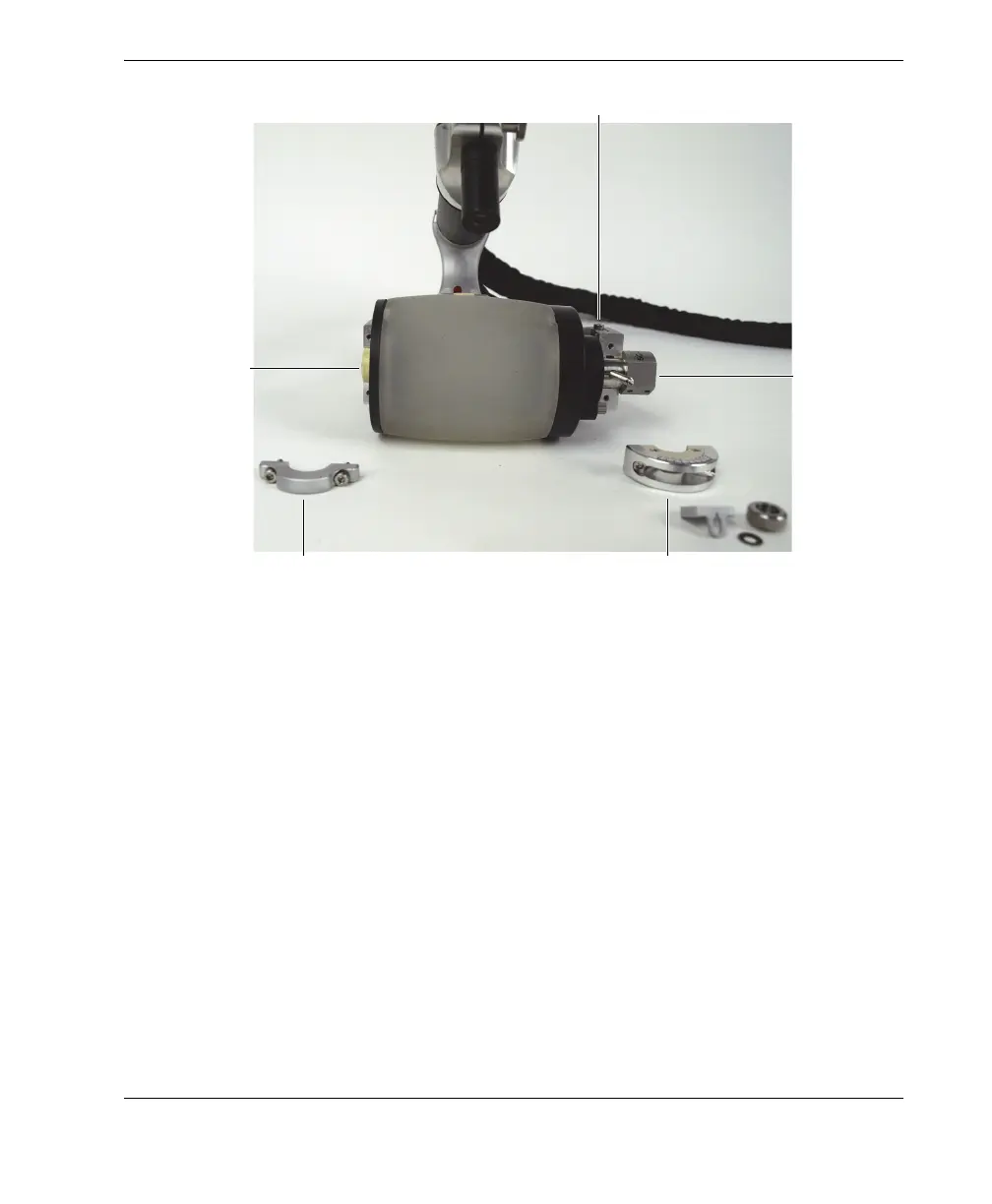

Figure 6-36 Installing the acoustic wheel holding brackets
4. Install the acoustic wheel holding bracket with the angle-adjustment markings on
the side of the frame with the alternate encoder mount, making sure that the
angle markings face outward, and then install and tighten the two screws with the
hexagonal key supplied with the RollerFORM. The screws are equipped with lock
washers.
5. Install the acoustic wheel holding bracket on the side opposite to the probe cable,
and then install and tighten the two screws with the hexagonal key. The screws
are equipped with lock washers.
6. Install the angle cursor, the spring-lock washer, and the angle-adjustment knob on
the angle-adjustment arm, which is on the probe-cable side of the RollerFORM
(see Figure 6-37 on page 110).
The angle-adjustment knob is equipped with a lock washer that generates more
resistance when the knob is partially screwed onto the angle-adjustment arm.
Acoustic wheel holding bracket (probe-cable side) with
angle-adjustment markings
Acoustic wheel holding bracket opposite to probe-
cable side
Probe-cable
end
Alternate encoder holder location
Bushing on
the end of
the probe-
axle
