Opening/Closing a Window by Pressing a Touch Switch That Has the
Input Key –
Keyboard Function
If this method is used, the specified window can be opened and closed by opera-
tion at the PT.
By this method, only the local window can be controlled.

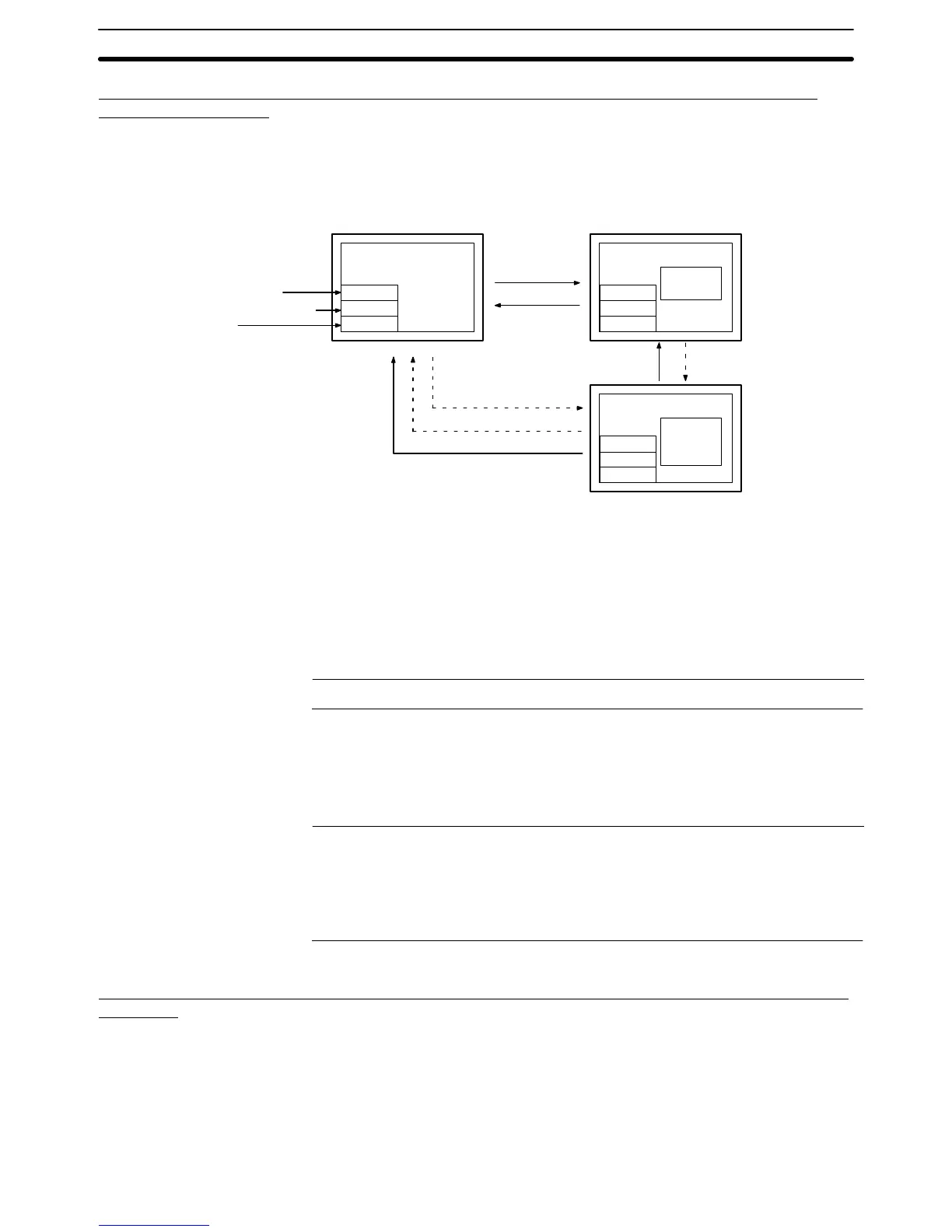

Base Screen
Base Screen
No changes after pressing CLOSE
Opening window 1
Opening/closing window 2
Base Screen
SCREEN 1
SCREEN 2
CLOSE
Screen 1
Screen 2
SCREEN 1
SCREEN 2
CLOSE
SCREEN 1
SCREEN 2
CLOSE
Pressing SCREEN 1
Pressing CLOSE
Pressing CLOSE
Pressing
SCREEN 1
No changes after pressing SCREEN 1
Pressing SCREEN 2
Pressing SCREEN 2
Pressing
SCREEN 2
Closing
When creating a screen, set the input key – keyboard function that opens/closes
a window for the touch switch and specify the window screen number (keyboard
screen number) of the window to be opened. Register the window number for
the screen.
The window screen numbers that can be set are:
0001 to 3999: Screen (keyboard screen) No. 1 to No. 3999
Reference: If the specified number is not the number of a window screen, no window opens.
Press a touch switch that has the input key – keyboard function to open/close a
window.
The window set for the touch switch opens.
Reference: When words are allocated for the window control area in the host, window screen
number and the bottom left coordinate of the window that is opened are notified
to the window control area. (Refer to page 312)
Also, window open status bit of the corresponding window type in PT status
notify area goes ON. (Refer to page 312)
Opening/Closing a Window by Pressing a Touch Switch That Has the Cursor Moving
Function
It is possible to give a cursor moving key, which is used to specify numeral or
character string input fields, the function of opening a window.
By this method, only the local window can be controlled.
In this method, a specific window (keyboard screen) can be opened at the same
time as a numeral or character string input field is specified by operation at the
PT.
Setting
Operation
