2-1SectionPT Screens
49

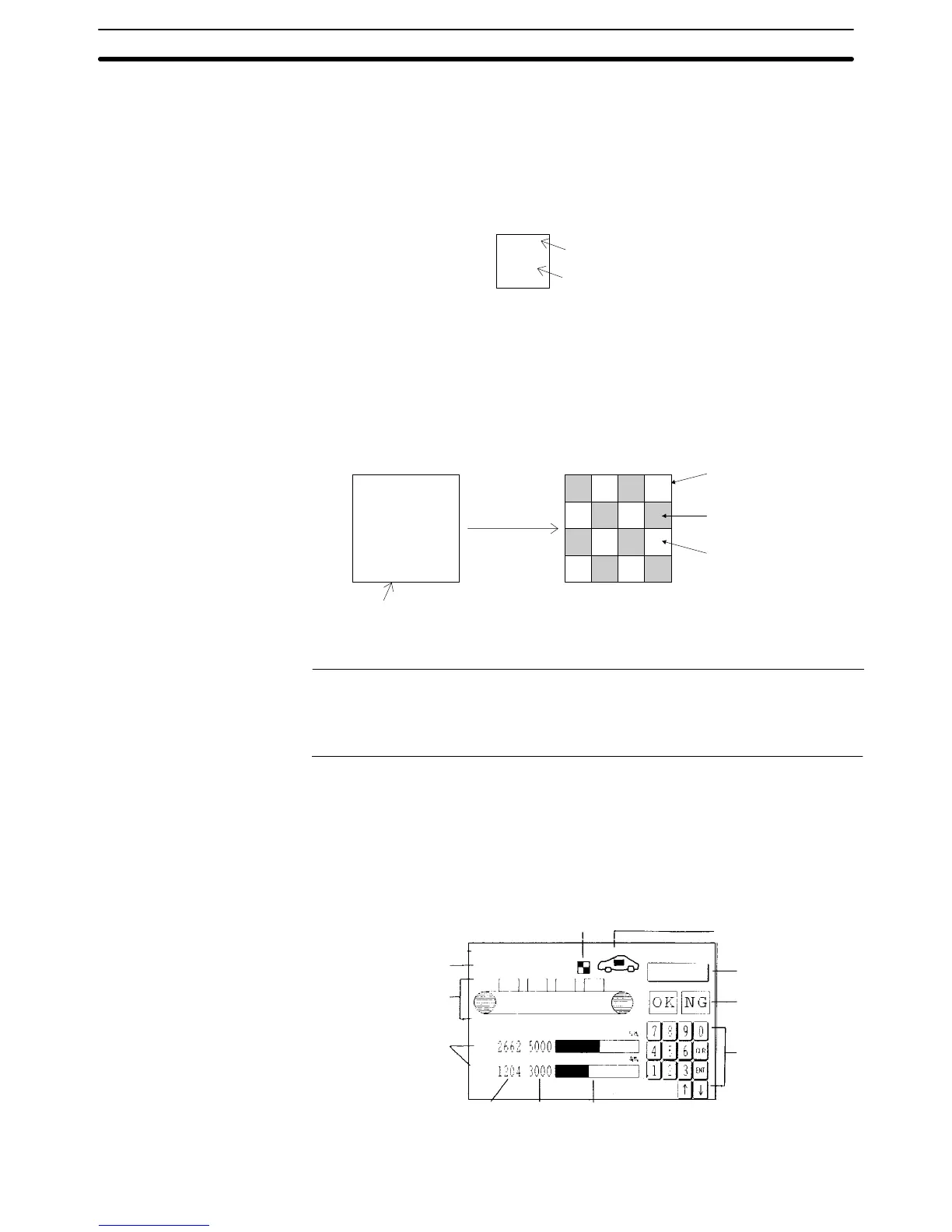

The background color of the entire screen can be designated with the Back-
ground screen attribute. Screen attributes are properties set for each screen
with the Support Tool.
The color of characters (character color) and that of their rectangular frames
(background color) can be specified.
A
Background color
Character color
The colors of lines and tiling patterns can be specified for graphics.
The colors that can be designated for tiling patterns are the color of the pattern
itself, the background color of the pattern, and the color of the outline of the tiled
area.
Outline color (Border)
Pattern display
color (Foreground)
Tiling
Pattern background
color (Background)
Line color
Reference: When a lamp, a touch switch, and a graphic are displayed in color, part of the
frames of the display elements may be invisible because of the combination of
the background, outline, and tiling colors. This is a phenomenon peculiar to a col-
or LCD, not a failure of the system. In such a case, change the color combination.
2-1-6 Display Elements
The PT can display the following elements.
TARGET
PRODUCT
C
EMERGENCY
STOP
Mark
Image data
Touch switch
Graphic
Lamp
Character strings
Numeric keys
Graph
OUTPUT
95/04/10 14:10
LINE B PRODUCTION
STATUS
Text
Numeral display Numeral
input
PRODUCT
D
Screen Background
Color
Text Display Color
Graphics Display Color
