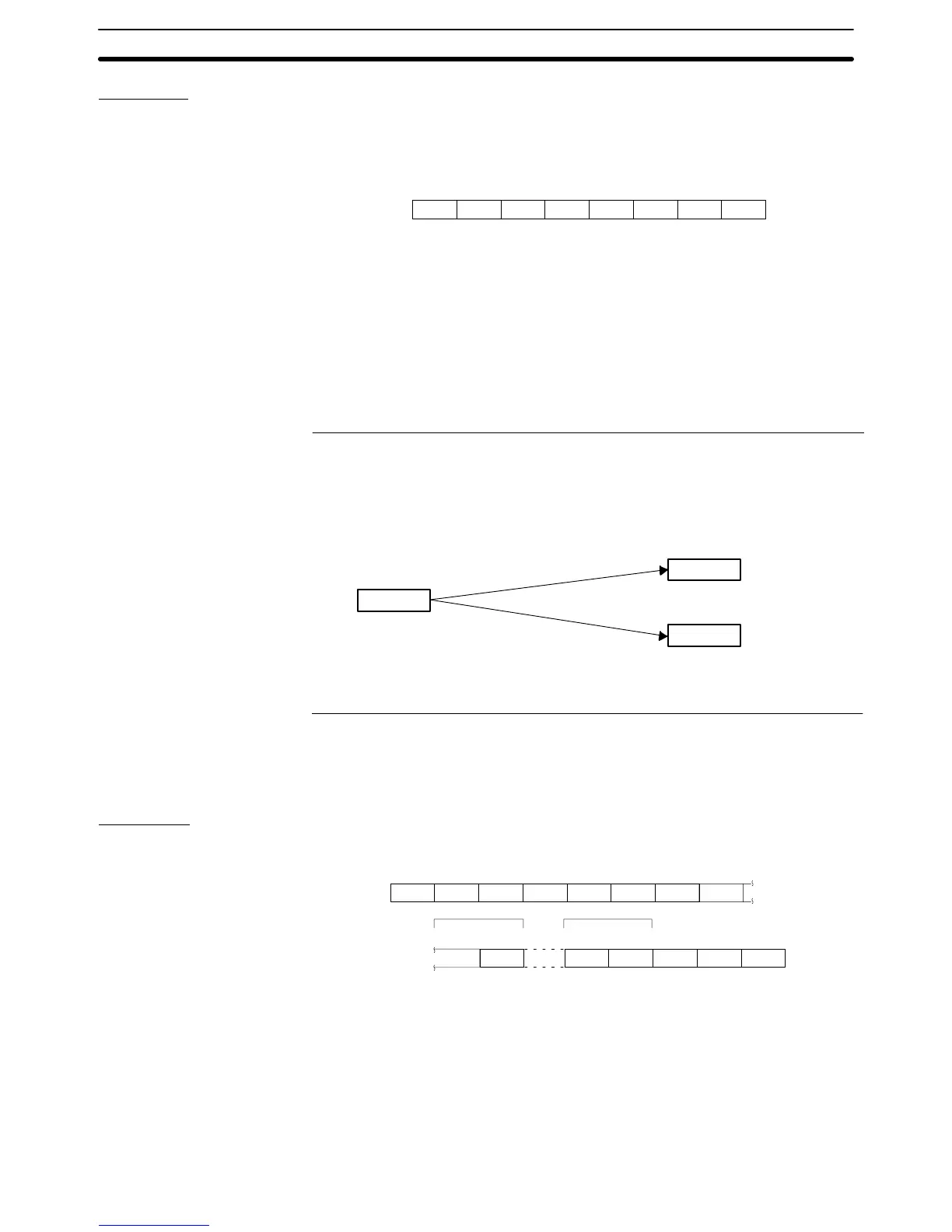

4-3SectionCommands/Responses
383
Response
Only if Yes is set for the Response memory switch, the response indicated below
is returned on normal completion.
Format
1B 57
[ESC] [CR]
W
3030 32 0D4E
N
30
0 0 s1 s2
s
1
, s
2
: Checksum (2 hexadecimal digits)
This is always added (fixed as 20H).
Function
• Writes the data of the specified number of numeral memory table entries, start-
ing from the specified numeral memory table entries.
• A maximum of 20 table entries can be written at one time.
• When writing is executed to numeral memory table entries from No.247 to
No.253 (areas for clock data display/reading use only), operation will be fin-
ished normally without writing values.
Reference:  Data written by a numeral memory table write command is written according to
the numeral storage type of the numeral. Numeral storage type can be set at
the Support Tool. (It is possible to set it by a system memory at a PT collective-
ly.)
e.g.) Writing 1234 to the numeral memory table entry 0 (allocated word: 1)
Written data Numeral Storage Type
Numeral Memory Table entry 0
Binary
BCD
1234
04D2
1234
 For details of function and setting of numeral storage type, refer to the NT-se-
ries Support Tool for Windows (Version 4) Operation Manual (V061-E1-).
4-3-9 Character String Memory Table Write Command
(Sent from Host to PT)
Command
Format
m
1B 57
[ESC] W
t3 t4
53
St1
d11 d12
t2
0D
dn1 dn2
(s1) (s2) [CR]
* * * * * * * * * *
* * * *
* * * * * * * *
m: Checksum present/absent (1 BCD digit)
0: Absent
1: Present
t
1
to t
4
: Character string memory number written to (4 BCD digits)
0000 to 0499
d1
1
, d1
2
, ..., dn
1
, dn
2
:
Contents of the written character string memory table entries (1
to 40 characters)
