2-3SectionMemory Tables
79
• When a bar graph is used, the contents of a numeral memory table entry can
be displayed in real time in bar graph form (page 154).
• When an analogue meter is used, the contents of a numeral memory table
entry can be displayed in real time in the form of quarter, semi-circle or circle-
shaped graph.
• When a broken line graph is used, the contents of multiple, consecutive nu-
meral memory table entries can be displayed in real time in the form of a bro-
ken line graph (page 164).
• When a trend graph is used, changes over time in the contents of a numeral
memory table entry can be displayed in the form of a broken line graph (page
171).
• When a lamp’s guide character is made into a numeral display, the contents of
a numeral memory table entry can be displayed numerically in real-time (page
112).
• When a touch switch’s guide character is made into a numeral display, the con-
tents of a numeral memory table entry can be displayed numerically in real-
time (page 119).
• When a numeral setting is used, numeric values can be input into the numeral
memory table entry from the screen of the PT (page 192).
• When a thumbwheel switch is used, numerical values can be input into the nu-
meral memory table entry from the screen of the PT (page 200).
• When the touch switch copy setting function is used, the contents of a numeral
memory table entry can be copied, and constants can be input to the numeral
memory table entry (page 135).
• By operation of the PT status control area, data can be copied between
memory table entries from the host (page 52).
• If the contents of numeral memory table entries are changed by operation at
the PT, the change is notified to the PT status notify area (page 61).
• A numeral memory table entry can be specified as the location of operands
used by the mathematical function or the destination of calculation results
(page 278).
2-3-2 Character String Memory Table
Character string memory table entries are internal memories of the PT for re-
cording character string data.

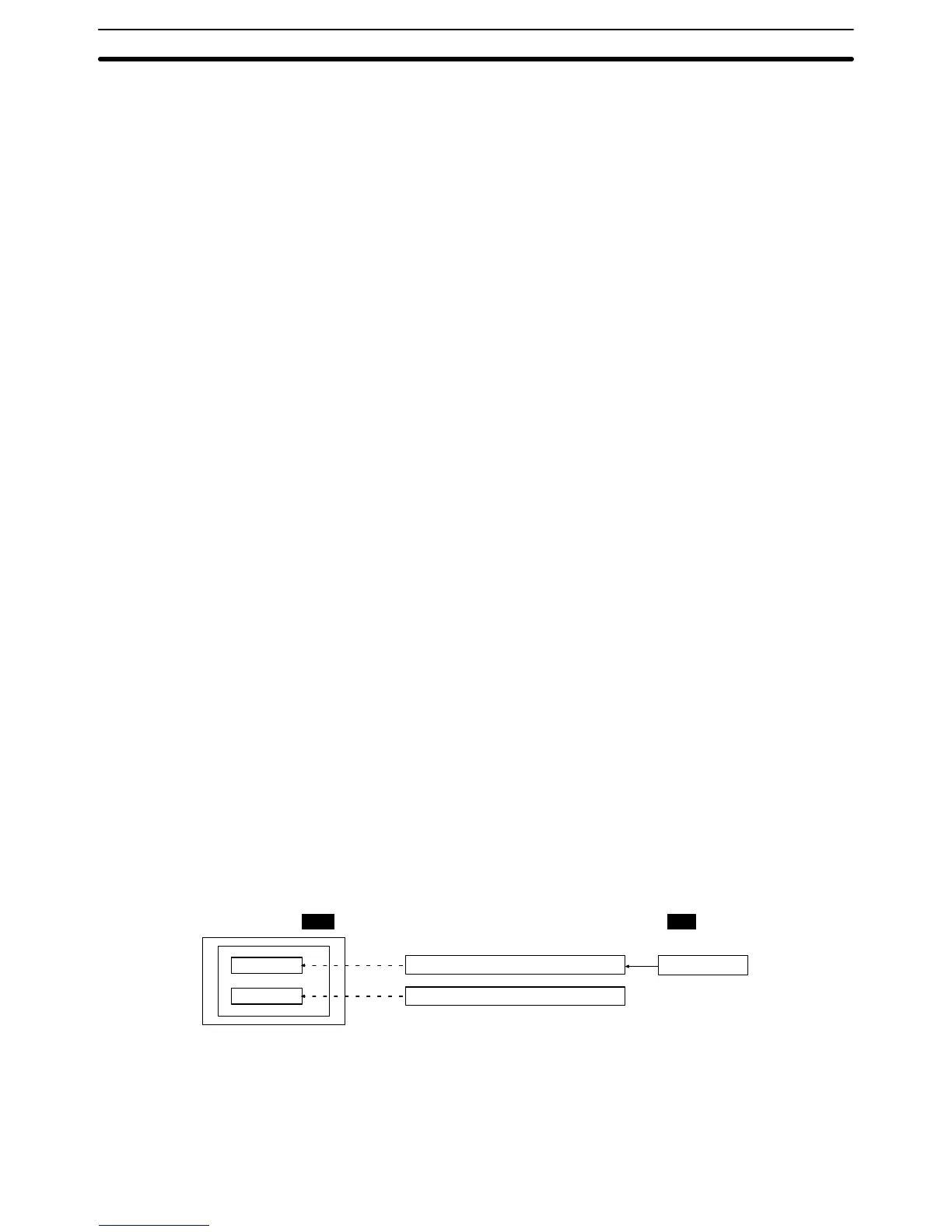

Since words can be allocated for character string memory table entries in the
host, the contents of words at the host can be displayed as character strings at
the PT via the character string memory table.
Character string memory table entries are assigned character string memory
table entry numbers so that they can be managed and designated individually.
abcde
ABCDE
Display
Display
Allocated word
PC
PT
Character string memory table entry 8
Character string memory table entry 12
Read
Restrictions
• The number of character string memory table entries can be set as one of the
following at the Support Tool.
• 256 (character string memory table entry numbers 0 to 255)
• 1000 (character string memory table entry numbers 0 to 999)
Function Outline
