Setting up Compax3
C3I12T11
192-120113 N08 C3I12T11 - December 2010
Positioning after homing run
The positioning made after the home switch has been found can be switched off.
For this enter in the “machine zero” window in the configuration wizard “no” under
“approach MN point after MN run”.
Example Homing (MN) mode 20 (Home on homing (MN) switch) with T40 by
homing offset 0

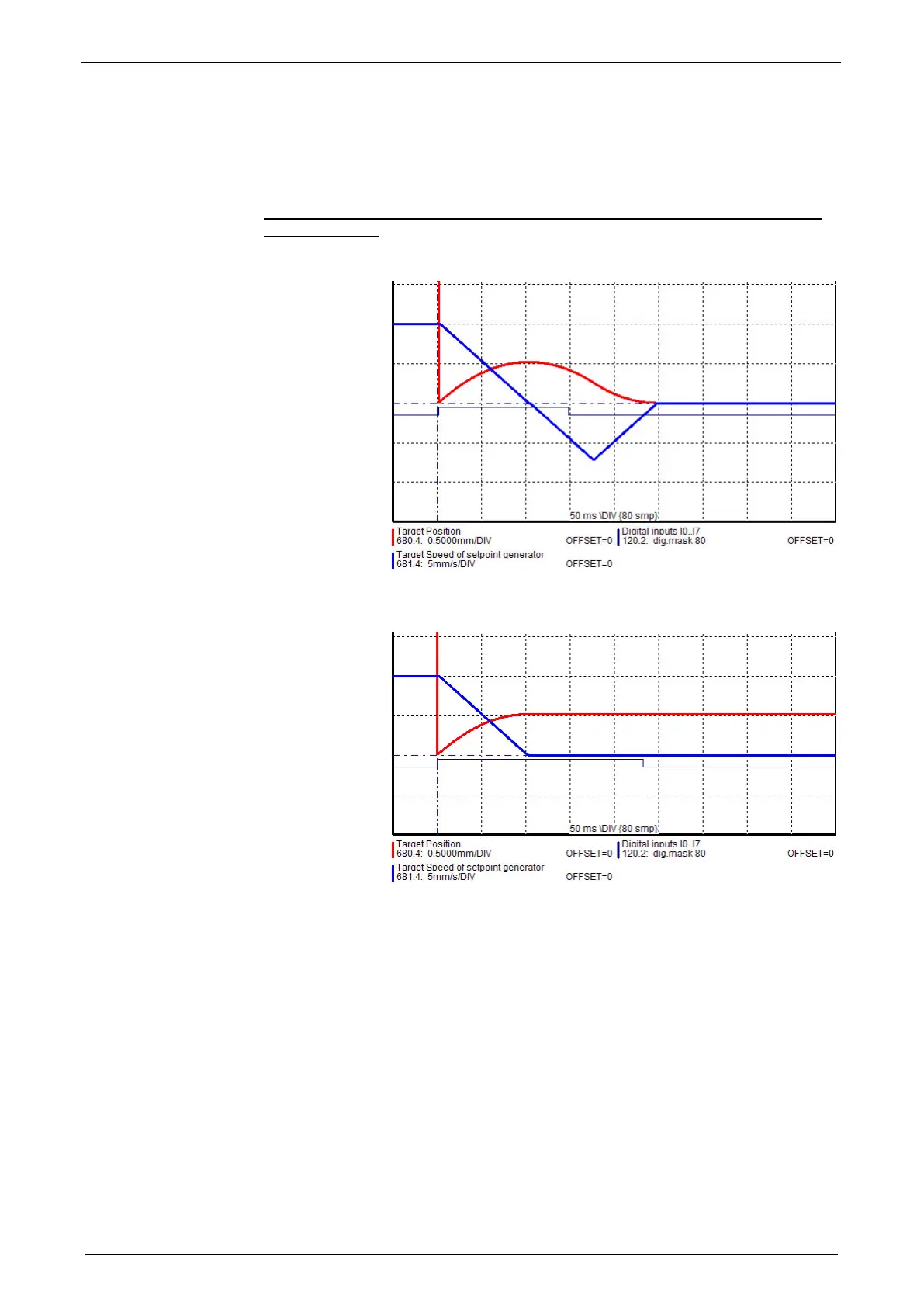

With positioning after homing run The motor stands then on 0:
Without positioning after homing run The position reached is not exactly on
0, as the drive brakes when detecting the home and stops:
If the homing mode is active, there will always be a homing run with the first start
after each configuration download (with the aid of the C3 ServoManager) Homing
run (see on page 143).
