10.4.2. Dimensions of the braking resistors
In this chapter you can read about:
BRM8/01braking resistors ..............................................................................................356
BRM5/01 braking resistor ...............................................................................................356
Braking resistor BRM5/02, BRM9/01 & BRM10/01 .........................................................357
Ballast resistor BRM4/0x and BRM10/02 .......................................................................357
Braking resistor BRM11/01 & BRM12/01 .......................................................................358
Ballast resistor BRM13/01 & BRM14/01 .........................................................................358
10.4.2.1 BRM8/01braking resistors

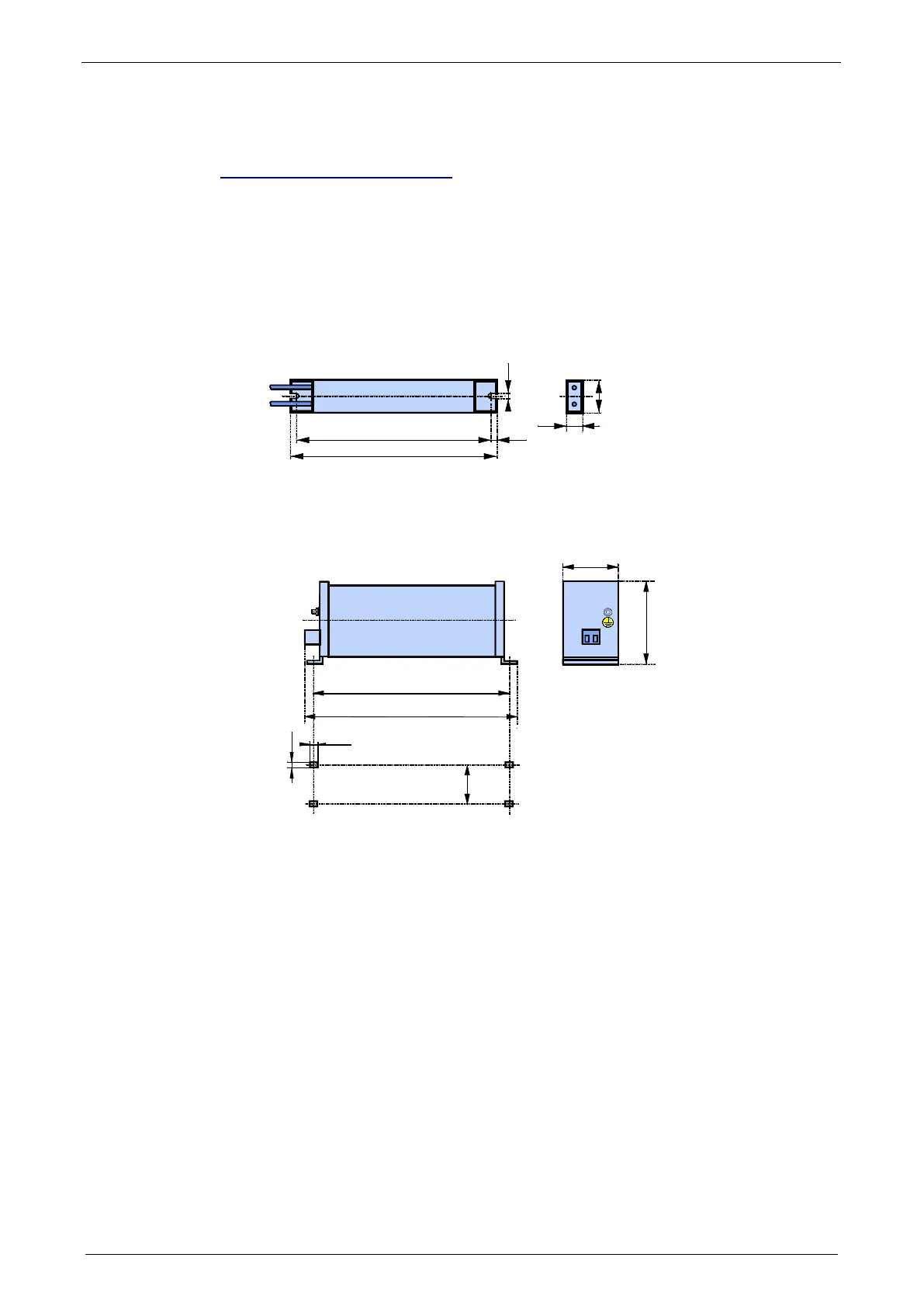

Dimensional drawing:
6
7,5
40
20
240
225
10.4.2.2 BRM5/01 braking resistor
Dimensional drawing:
222
245
101
6,5
48
73
12
