Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
Jerk
Unit: Unit/s
3
Range: 0 ... 10 000 000 Standard value:
1 000 000
STOP delay
After a STOP signal, the drive applies the brakes with the delay that is set (2).
Please observe:
The configured STOP ramp is limited. The STOP ramp will not be smaller than the
deceleration set in the last motion set.

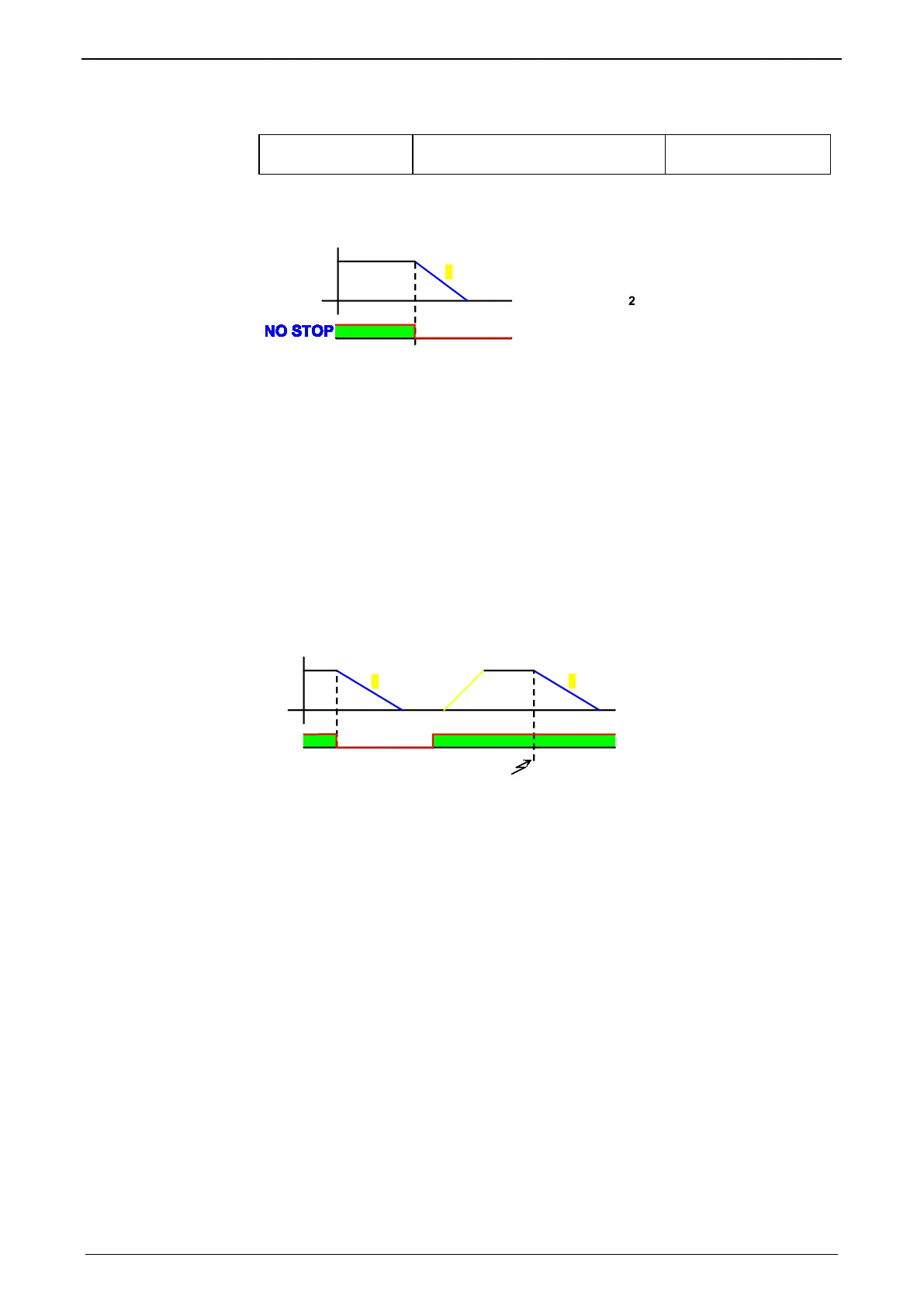

NO STOP: no STOP (I1, M.I6, CW.1 or CW.14)
4.1.8.2 Ramp upon error / deenergize
Ramp (delay) upon error and "De-energize"
The same delay is used for "Deenergizing" and when an error appears (errors
which do not deenergize immediately).
3: Deceleration on “de-energize” and on “error”.
Please observe:
The configured error ramp is limited. The error ramp will not be smaller than the
deceleration set in the last motion set.
ACKN: I0: Quit or CW.0 (with positive edge)
START: M.E5: START or CW.13 (with positive edge)
